2. OVERVIEW

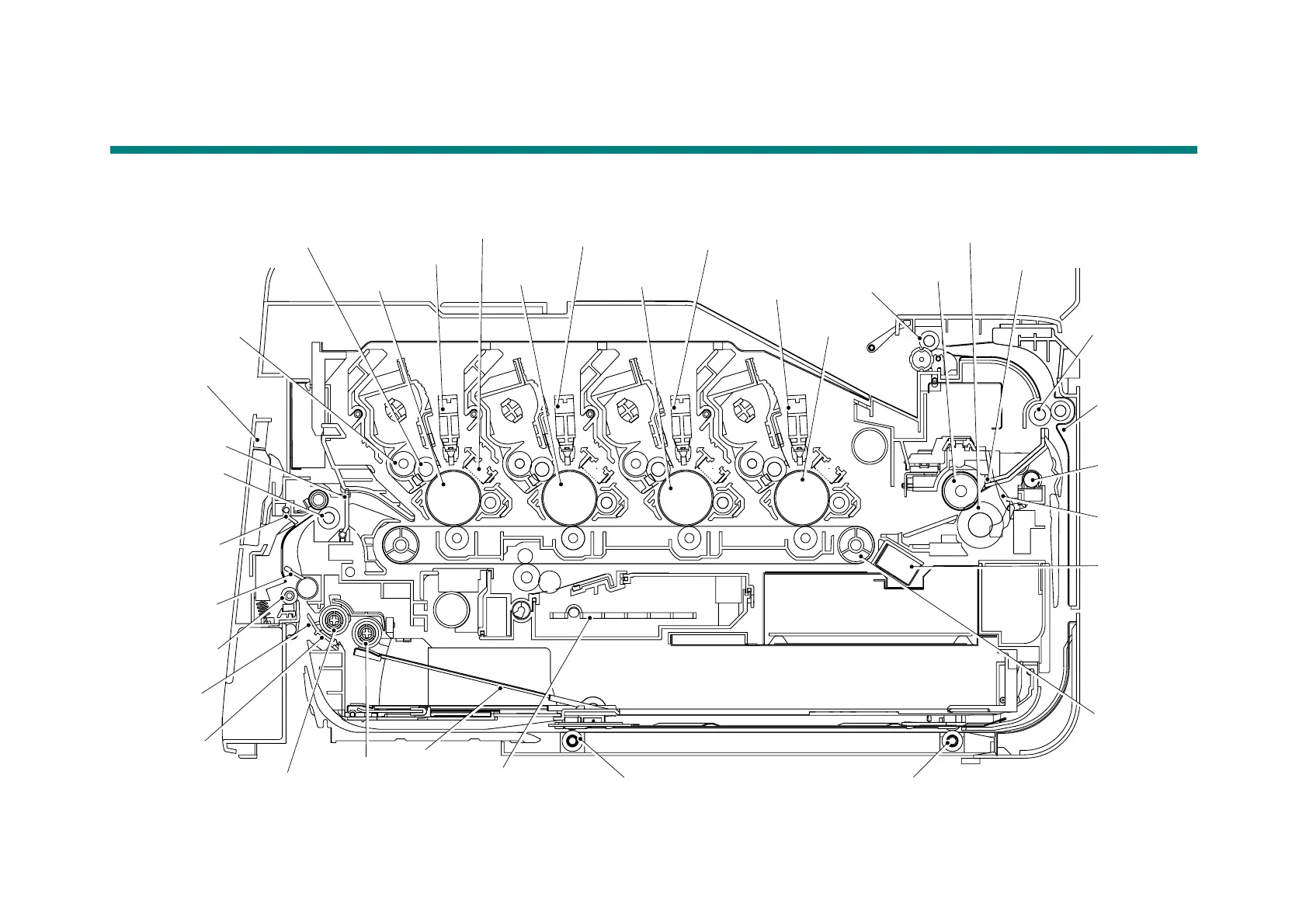

2.1 Cross-section Drawing
2.1.1 Printer part
Fig. 2-1
LED ASSY (M)
LED ASSY (Y)
LED ASSY (C)
LED ASSY (K)
Exposure
Exposure drum (C)
Exposure
Develop roller (Y)
Supply roller (Y)
Registration
Manual feed
Registration
Paper dust
Paper feed
Separation pad
Separation roller
Pick-up roller
Plate
Waste toner box
Duplex paper feed roller
Duplex paper feed roller
Belt unit
Density/
Eject roller 3
Heat roller
Pressure roller
Fuser unit
Eject roller 2
Back cover
Eject roller 1
Eject actuator
Corona wire
<Front side> <Back side>
Manual feed slot
rear actuator
roller
paper empty
actuator
front actuator
cleaning roller
actuator
registration
sensor
Exposure
drum (M)
cover ASSY
drum (K)
Registration
drum (Y)

Brother MFC-9140CDN Specifications

General

Print technology	LED
Maximum resolution	600 x 2400 DPI
Economical printing	Yes
Duplex printing mode	Auto
Warm-up time (from sleep mode)	24 s
Time to first page (black, normal)	16 s
Print speed (black, normal quality, A4/US Letter)	22 ppm
Duplex print speed (black, normal quality, A4/US Letter)	3.5 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4, 9, 16, 25
Time to first copy (black, normal)	19 s
Time to first copy (color, normal)	22 s
Copy speed (black, normal quality, A4)	22 cpm
Scan to	E-mail, E-mail Server, File, FTP, Image, OCR
Scan drivers	ICA, ISIS, TWAIN, WIA
Scanner type	Flatbed & ADF scanner
Film scanning	No
Grayscale levels	256
Input color depth	48 bit
Maximum scan area	216 x 356 mm
Output color depth	24 bit
Image formats supported	JPG, PNG, TIF
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	PDF
Optical scanning resolution	1200 x 2400 DPI
Faxing	Color faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, MH, MMR (Fax coding method), MR
Fax transmission speed	2 sec/page
Fax speed dialing (max numbers)	200
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Recommended duty cycle	300 - 1500 pages per month
Number of print cartridges	4
Page description languages	BR-Script 3, PCL 6
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	100 sheets
Auto document feeder (ADF) input capacity	35 sheets
Custom media width	76.2 - 215.9 mm
Custom media length	116 - 355.6 mm
Paper tray media types	Glossy paper, Heavy paper, Labels, Plain paper, Pre-Printed, Recycled paper, Thin paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight	64 - 90 g/m²
Display	TFT
Control type	Touch
Product color	Black, White
Display diagonal	3.7 \
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Wi-Fi	-
Cabling technology	10/100Base-T(X)
Security algorithms	HTTPS, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print
Sound power level (standby)	33 dB
Sound pressure level (printing)	53 dB
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.05 W
Power consumption (standby)	70 W
Power consumption (PowerSave)	7.5 W
Power consumption (average operating)	380 W
Package depth	534 mm
Package width	602 mm
Package height	565 mm
Package weight	27900 g
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012
Sustainability certificates	Nordic Swan Ecolabel, Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	483 mm
Width	410 mm
