Brother MFC-9140CDN - Hinge R;Hinge R Support

3-52
Confidential

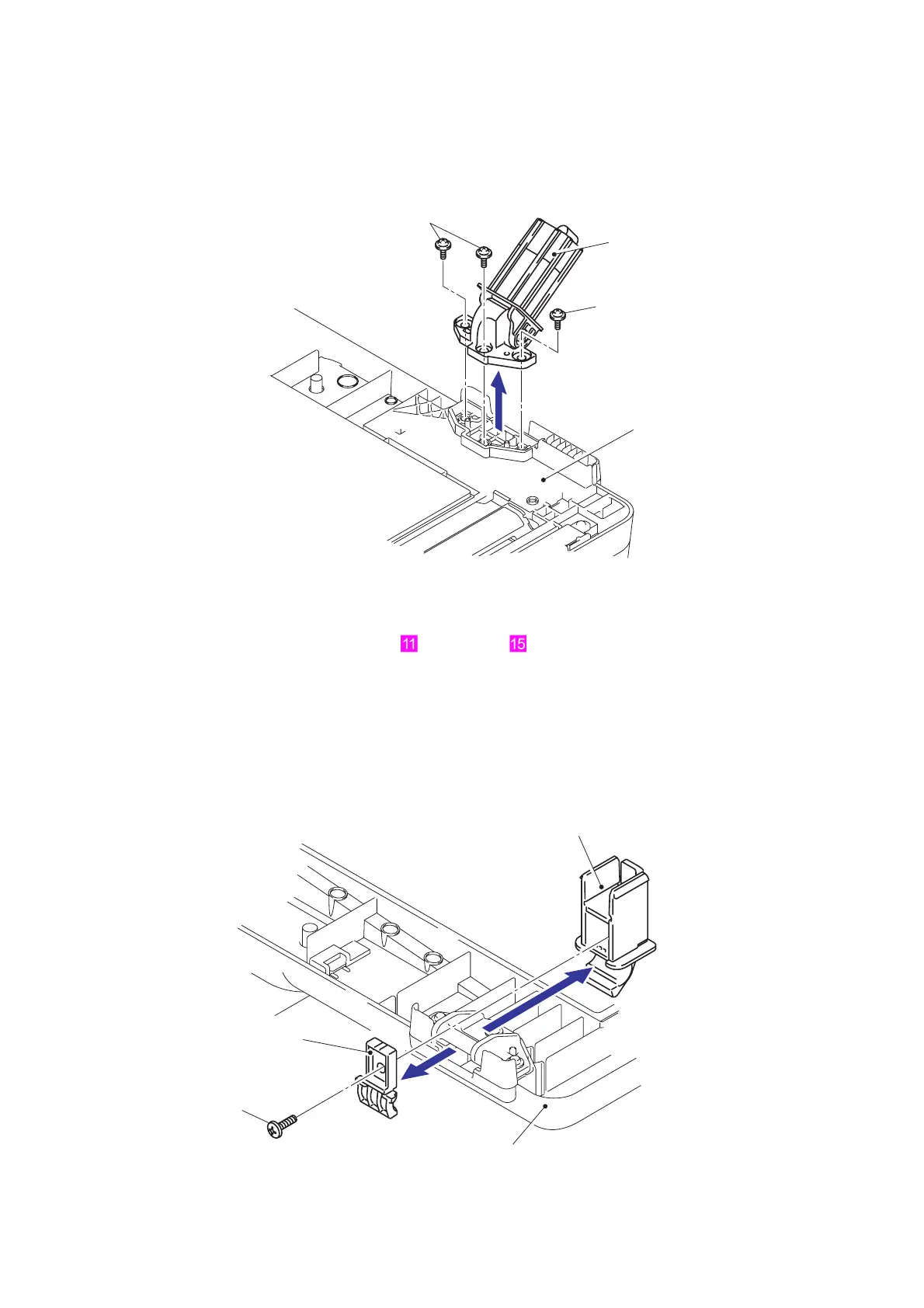

(11) Turn the ADF unit upside down.
(12) Remove the three Taptite cup S 3x12 screws to remove the Hinge ASSY L from the ADF
unit.
Fig. 3-44
Harness routing: Refer to " ADF Unit", " Document Scanner Unit"
8.15 Hinge R/Hinge R Support
(1) Remove the Taitite cup B 3x10 screw to remove the Hinge R support and Hinge R from
the ADF unit.
Fig. 3-45
Hinge ASSY L
ADF unit
Taptite cup S 3x12
Taptite cup S 3x12
Hinge R
Hinge R support
ADF unit
Taitite cup B 3x10
