3-85
Confidential

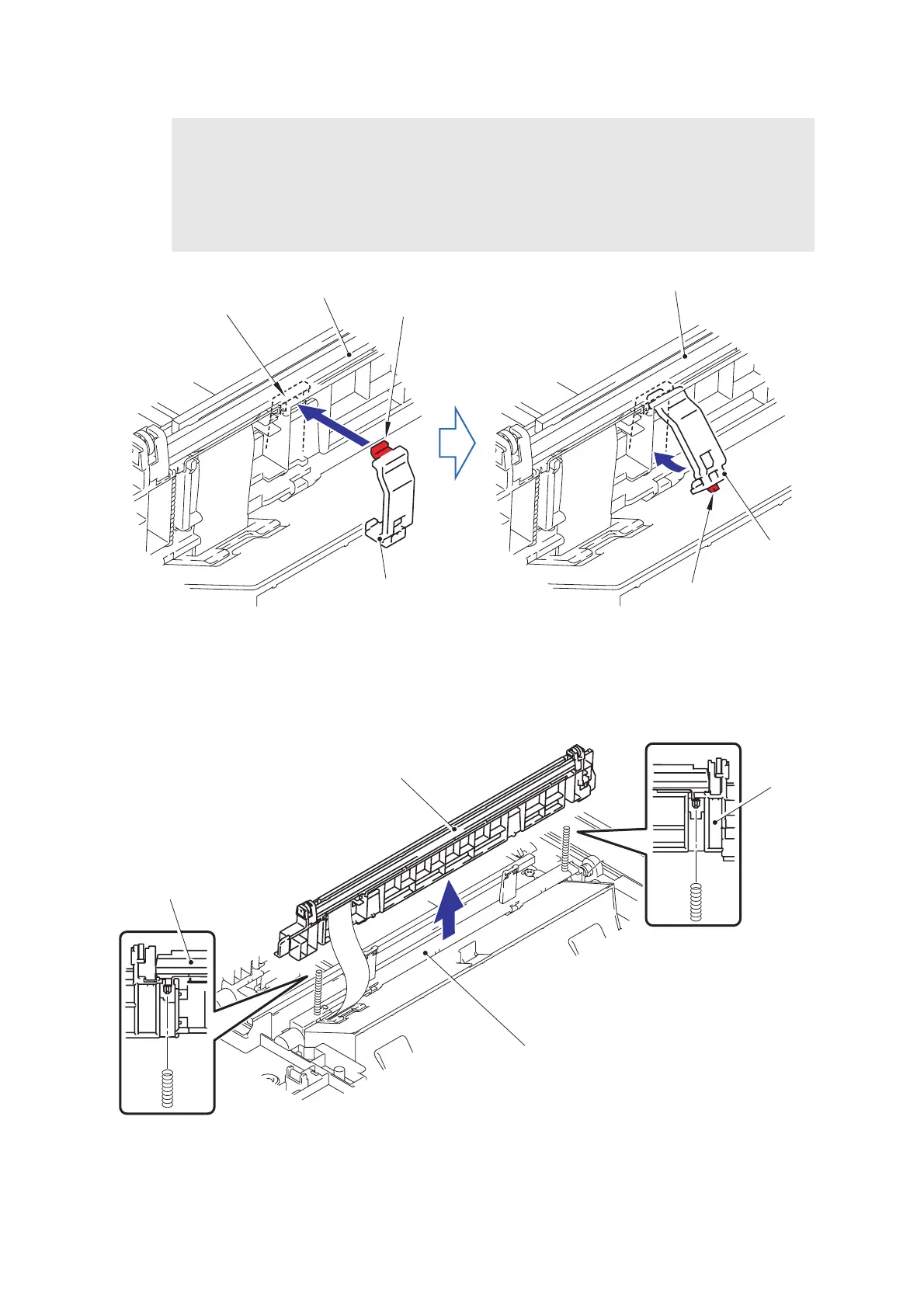

Fig. 3-107
(14) Remove the LED ASSY from the LED holder.
Fig. 3-108
Assembling Note:
- When you assemble the Holder hook, make sure to insert the Hook A of the Holder hook
into the "A" of the LED ASSY first, and then assemble the Hook B of the Holder hook to
the Holder.
- After assembling, make sure to check that the Hook A is firmly engaged to the Holder.
If it is not engaged to the Holder firmly, it might cause an image failure.
LED ASSY
Hook A
LED ASSY
Hook B
Holder hook
Holder hook
“A”
LED
ASSY
LED ASSY
LED ASSY
LED holder
