7-6
Confidential

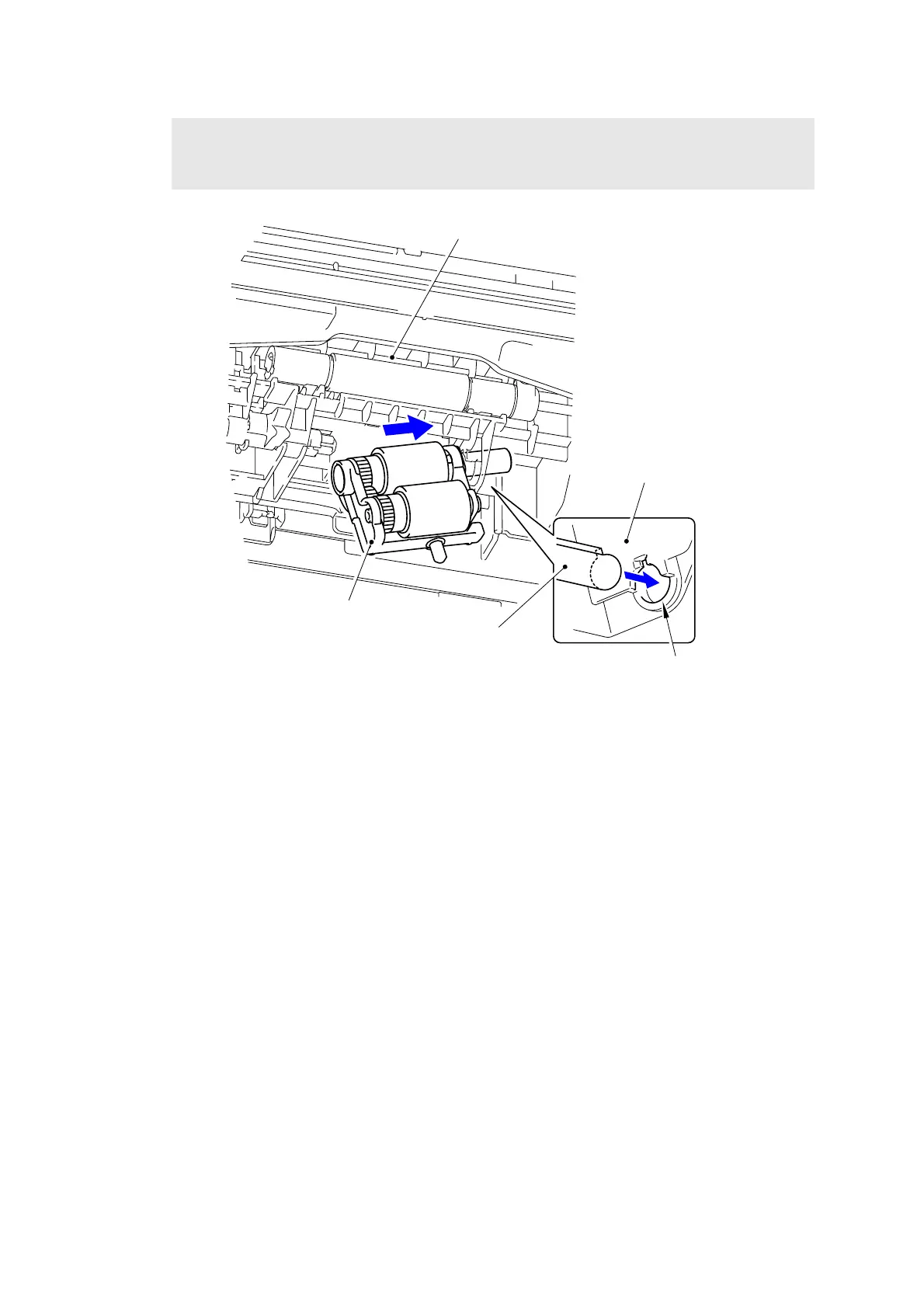

Fig. 7-6
Assembling Note:
Align the Hole of the Paper feed unit to the Shaft of the Roller holder ASSY and insert it into
the Hole.
Roller holder ASSY
Paper feed unit
Hole
Paper feed unit
Shaft
