3-9
Confidential
CR frame (bottom face)

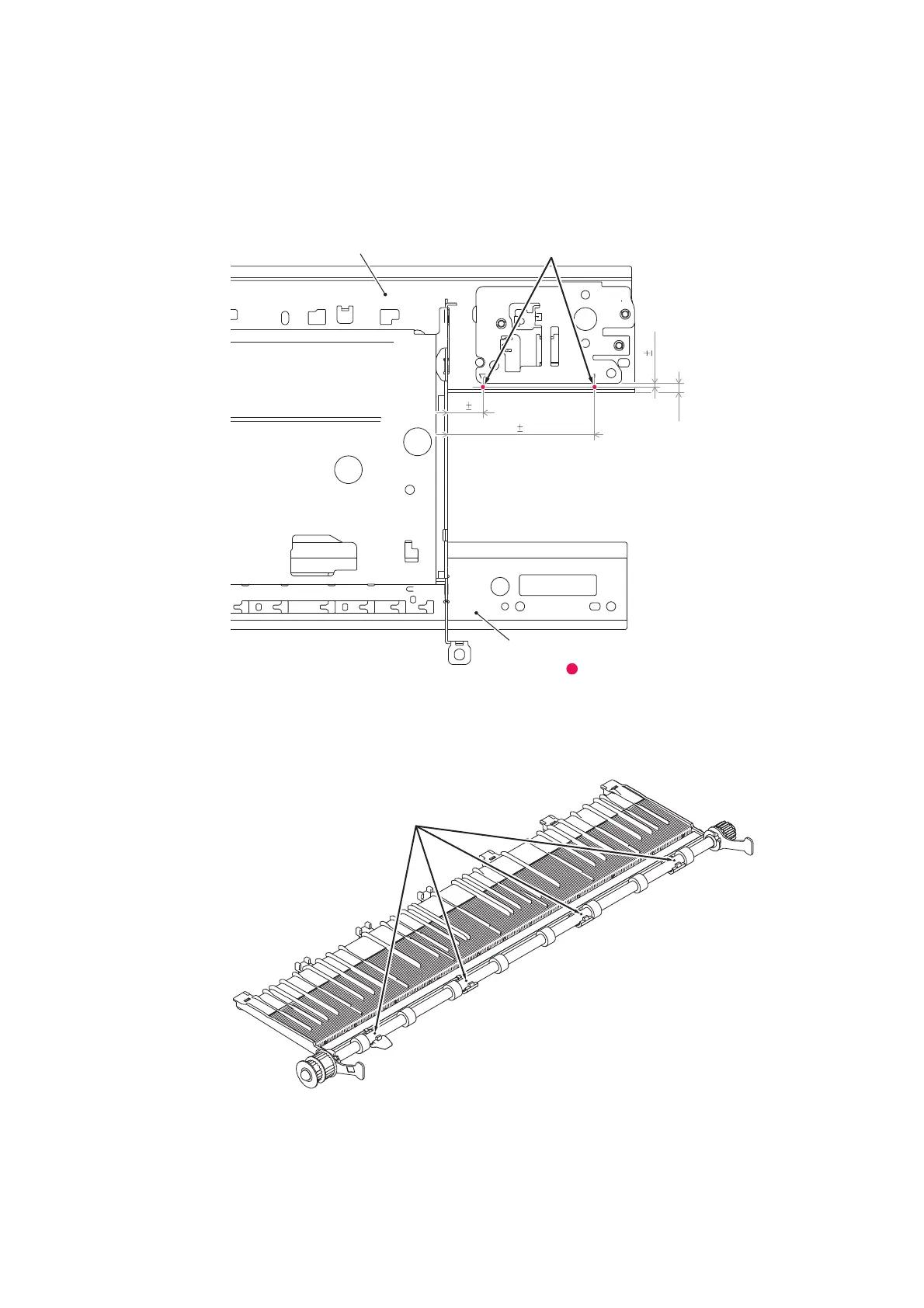

Apply a 1 mm diameter ball of grease (FLOIL BG1319) to each of the 2 lubrication points
below.
Paper ejection roller
64 1
15 1
15 0.5
(4)
(mm)
: Grease (1 mm diameter ball)
CR guide rail
CR frame
Lubrication points
(3_003_S13E)
Apply grease here.
(3_116_E)
