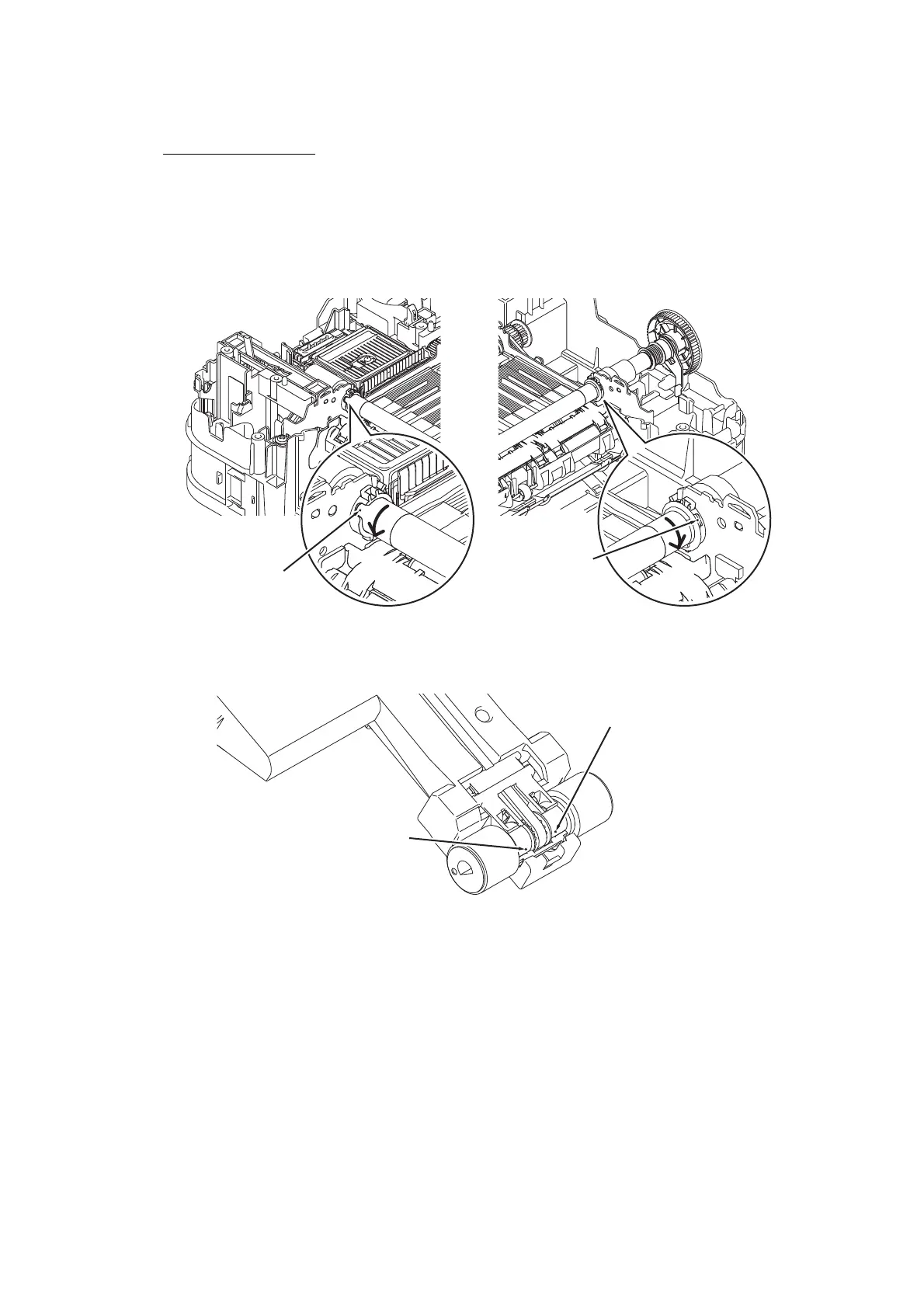

 Paper feed roller
Lubrication procedure
(1) Apply grease to the lubrication points.
(2) Rotate the paper feed roller one revolution in the direction indicated by the arrow.
(3) Apply grease to the lubrication points.
(4) Rotate the paper feed roller one revolution in the direction indicated by the arrow.
 Paper pull-in rollers (T1/T2)
Apply grease here.
Apply grease here.
(3_117_1_E)
Apply grease here.
Apply grease here.
(3_118_1_E)
