Brother MFC-J2310 Service Manual

3-13
Confidential
The harness colors may change due to circumstances.

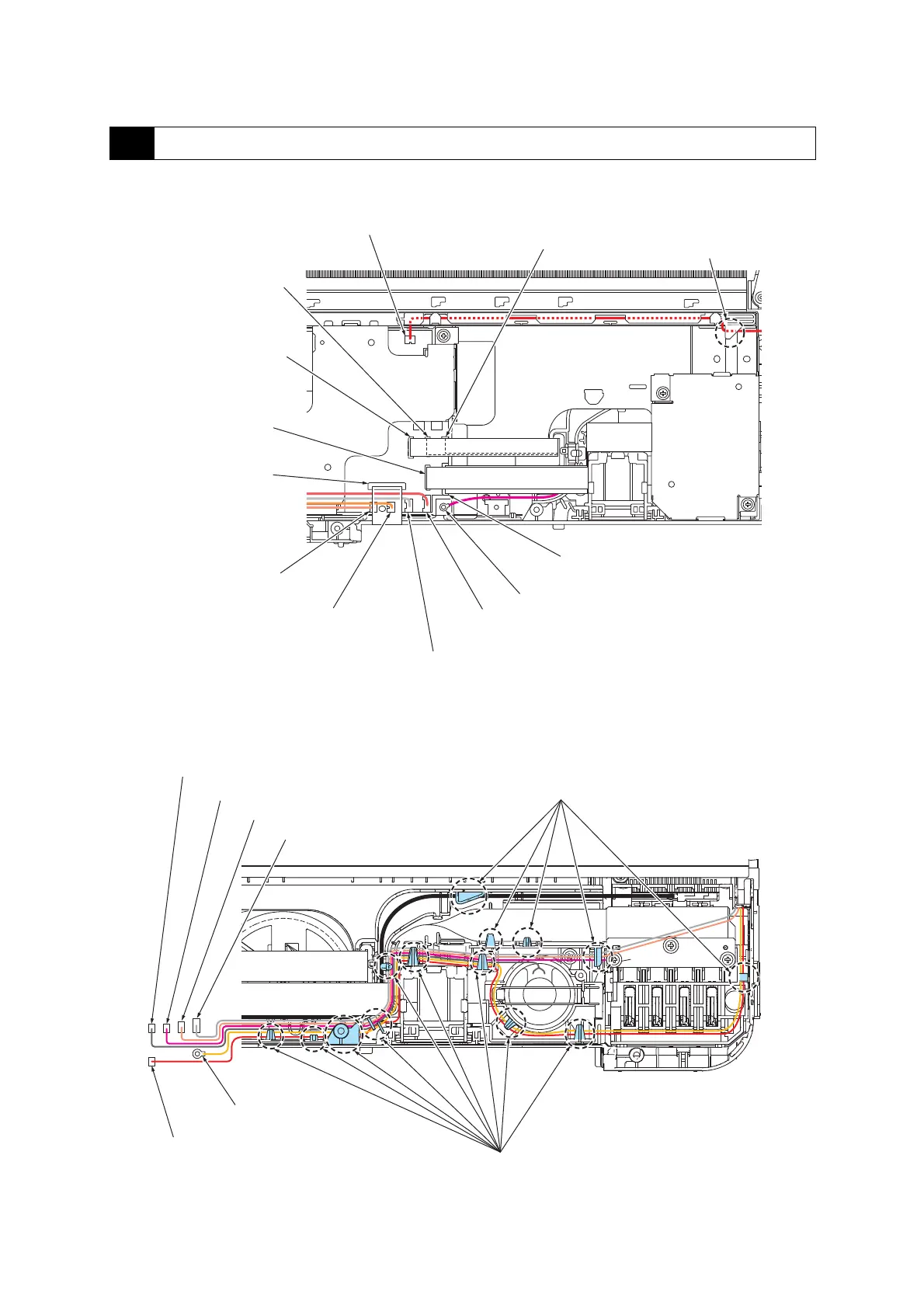

2 Main PCB ASSY and MJ PCB ASSY
(Front)
Speaker harness
(red/black)
Purge cam sensor harness
(white)
Cable guide
Carriage PCB flat cable 3
(white)
Carriage PCB flat cable 2
(white)
Carriage PCB flat cable 1
(white)
Registration sensor harness
(red)
FG wire
MJ PCB flat cable
(white)
Panel flat cable
(white)
Ink refill sensor flat cable
(white)
Ink absorber full sensor harness
(white)
Ink cartridge cover sensor harness
(white)
(3_121_E)
Speaker harness
Registration sensor harness
Purge cam sensor harness
Ink cartridge cover sensor harness
FG wire
Carriage motor harness
Cable guides
Cable guides
(3_121_1_E)
