3-14
Confidential
The harness colors may change due to circumstances.
The harness colors may change due to circumstances.

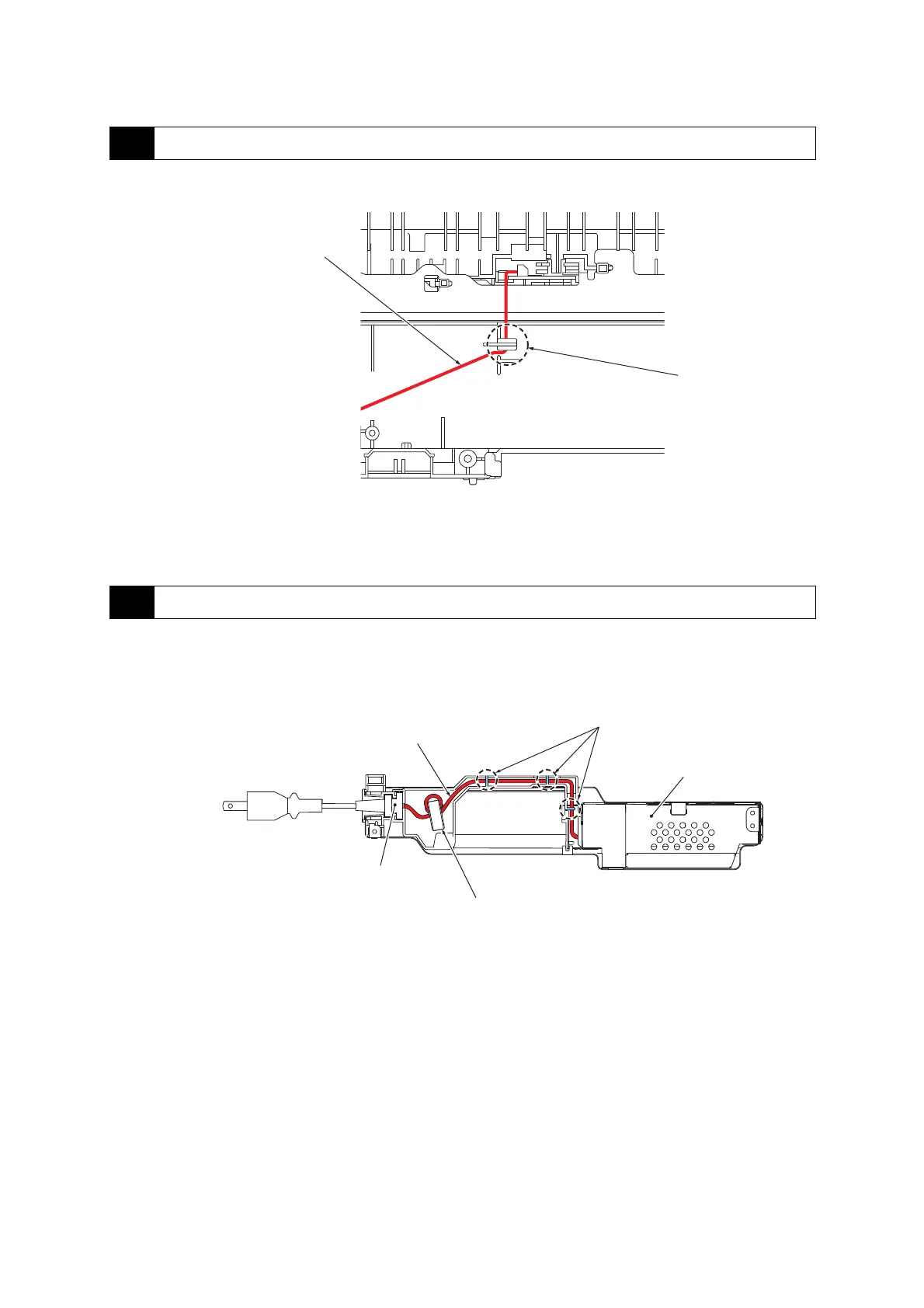

3 Switchback sensor
4 Power supply PCB ASSY
(3_122_E)
Switchback sensor
harness (black)
Cable guide
(Front)
Power cord (black/white)
Power cord bushing
Power supply shield
(3_123_E)
Cable guides
Ferrite core
