Brother MFC-J2310 Service Manual

3-30
Confidential

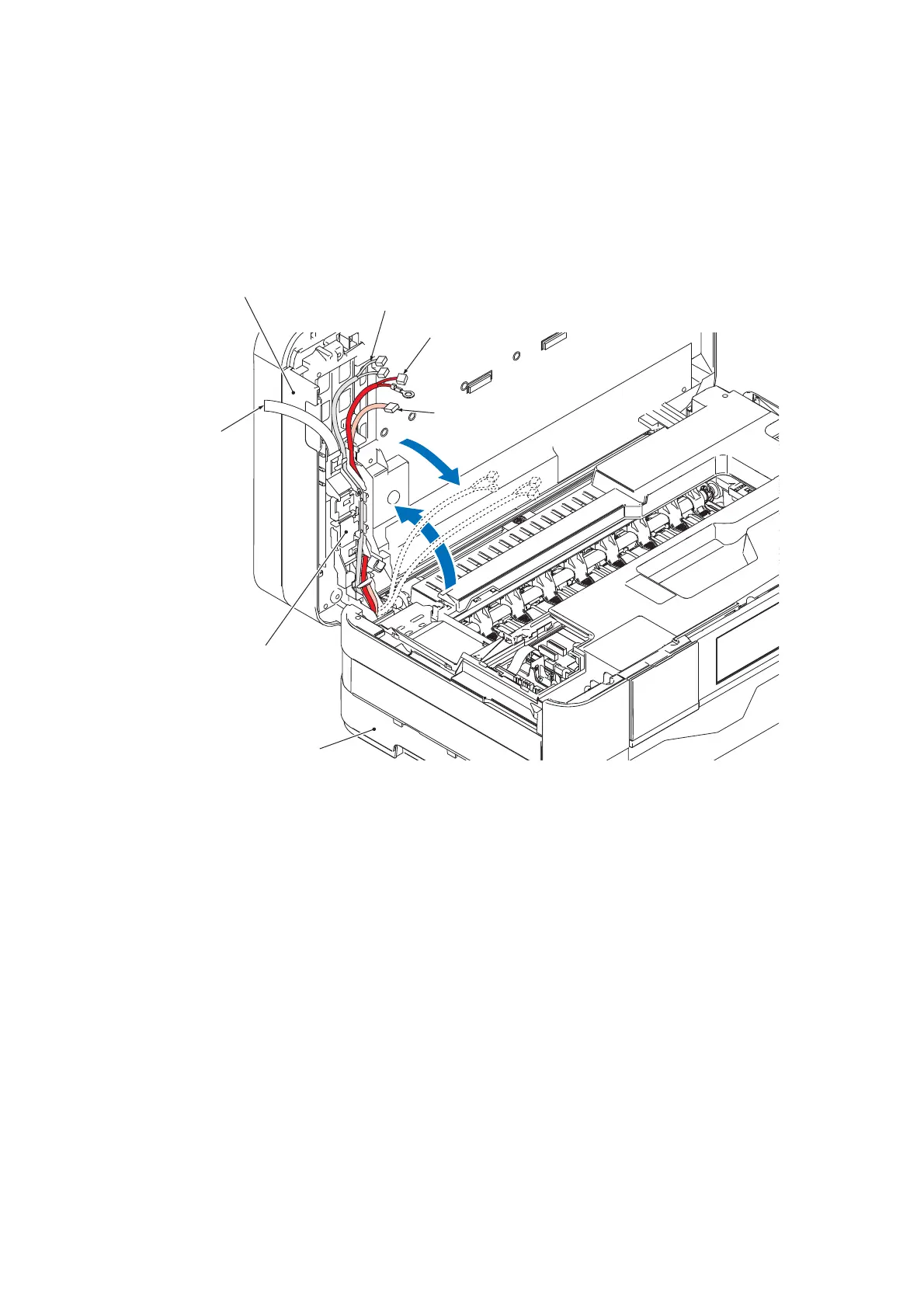

(4) Release the two hooks on the scanner harness holder and open it.
(5) Secure the scanner harness holder to the document scanner unit and then release the wiring
of the document detection/document scanning position sensor harness and the ADF motor
harness.
Duplex scanning models: Secure the scanner harness holder to the document scanner unit
and then release the second side CIS flat cable.
Machine body
Scanner cover
CIS flat
cable
ADF motor harness
Scanner harness
holder
Scanner motor
harness
Document detection/
document scanning position sensor harness
(3_006_1_E)
