Brother MFC-J2310 Service Manual

3-33
Confidential

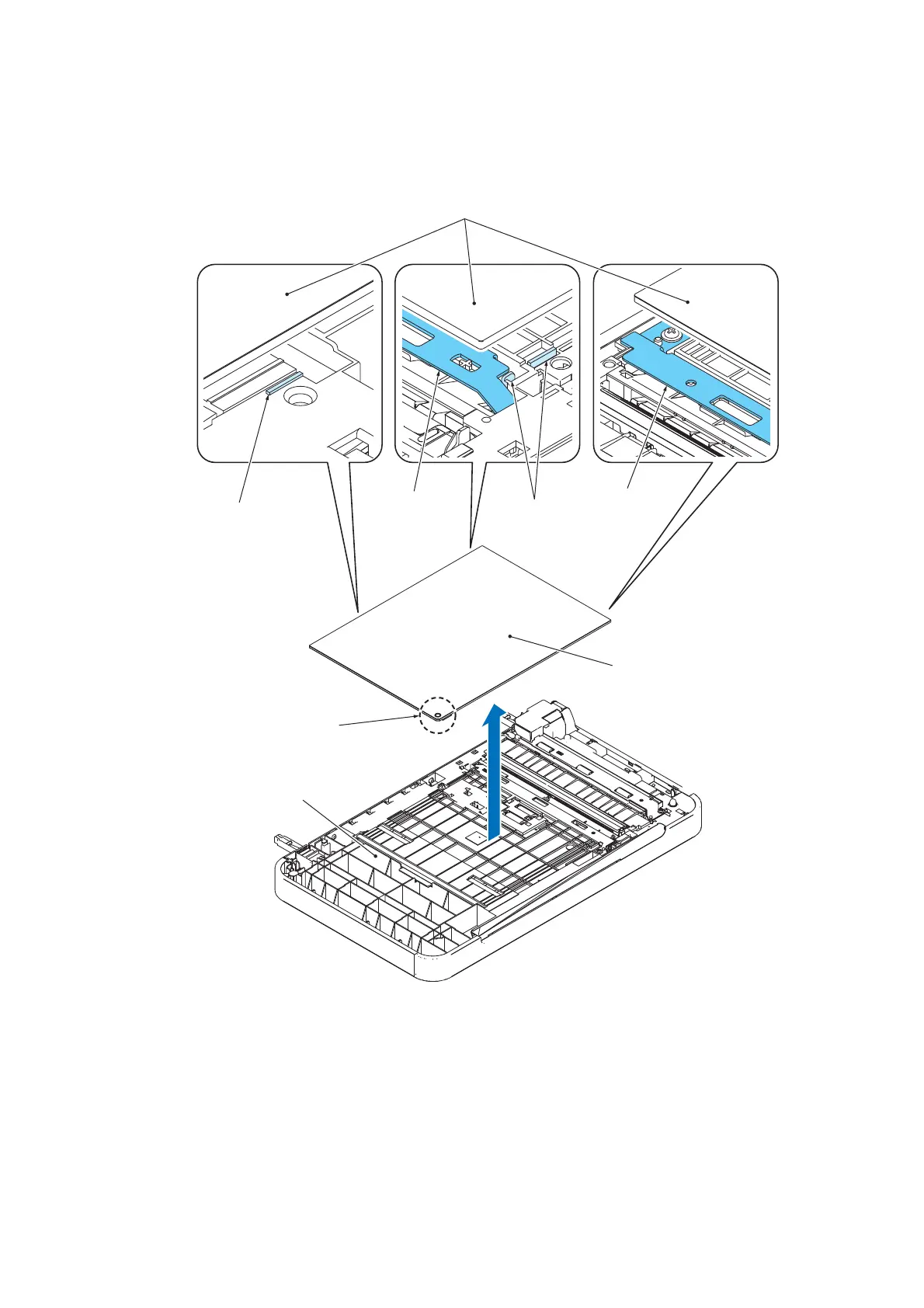

(9) Remove the document sponge.
Assembling Note: Attach the document sponge in accordance with the instruction drawing
shown below.
ADF unit
Document sponge
Align with the
left end of the
LF support plate.
Align with the
left end of the
LF suport
plate.
Document sponge
Round hole
Align with the
inner end of
the rib.
Align with the
inner end of
the rib.
(3_008_1_E)

Brother MFC-J2310 Specifications

General

Brand	Brother
Model	MFC-J2310
Category	All in One Printer
Language	English
