3-32
Confidential

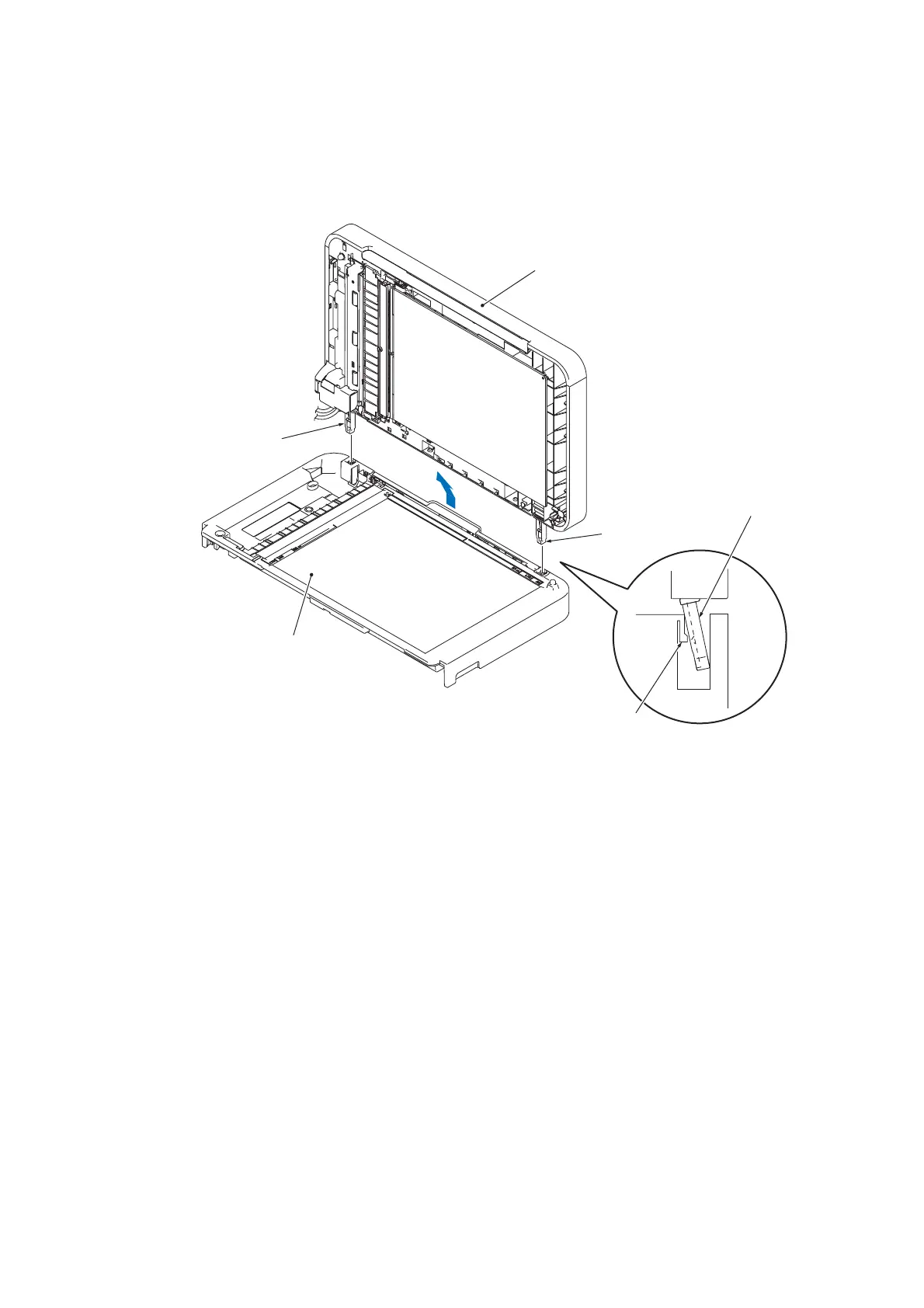

(7) Open the ADF unit, lift it up slightly, pull it towards you to tilt the hinges, and remove it
from the document scanner unit.
(8) Pull out the document detection/document scanning position sensor harness and the ADF
motor harness from the document scanner unit.
Document scanner unit
ADF hinge R
ADF hinge
Hook
ADF hinge L
ADF unit
(3_008_E)
