3-48
Confidential

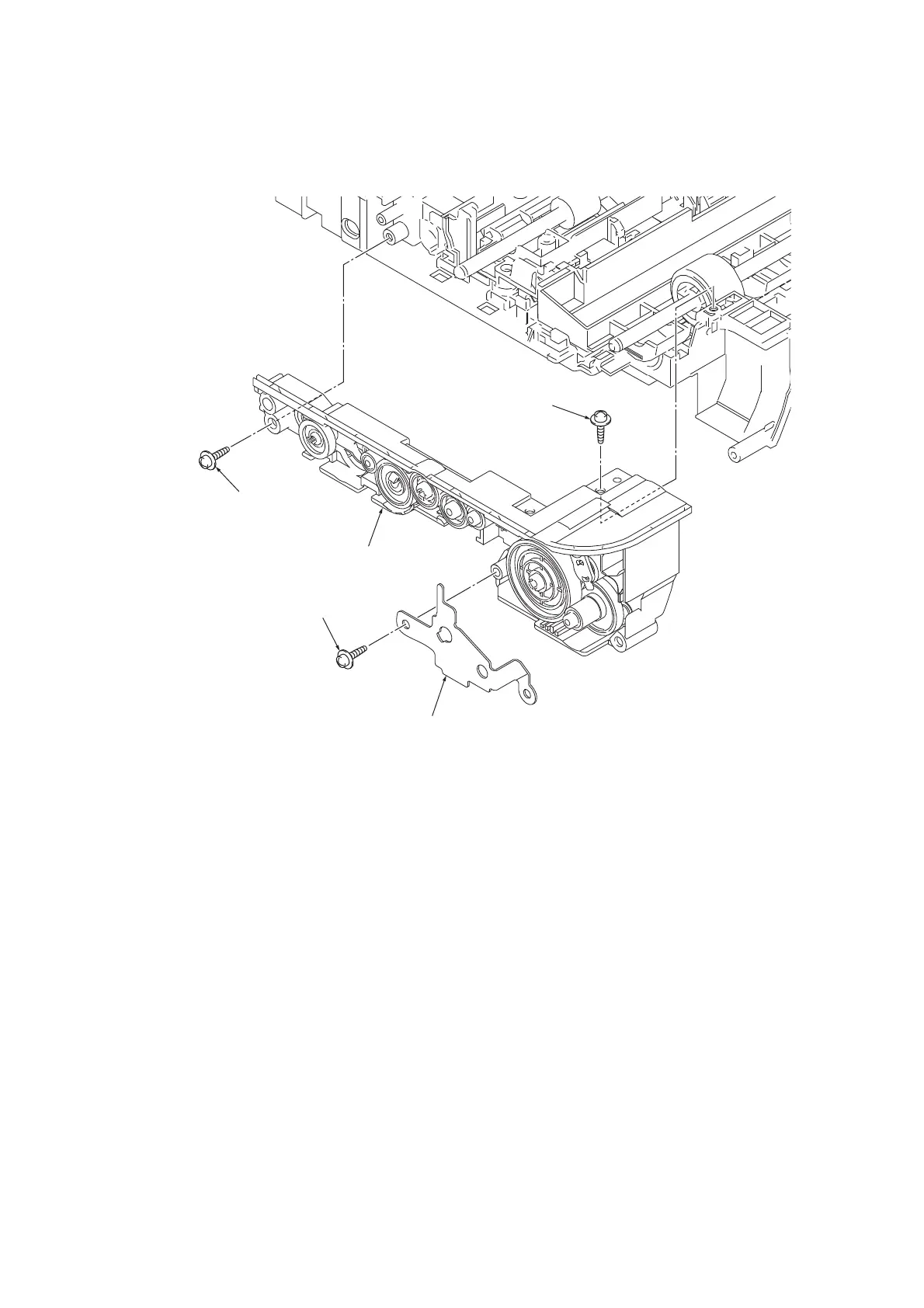

(3) Remove the two screws (TAPTITE CUP B M3x10) and take off the ADF drive unit.
(4) Remove the screw (TAPTITE CUP B M3x10) and take off the ADF drive unit support
plate.
TAPTITE CUP B M3x10
TAPTITE CUP B M3x10
TAPTITE CUP B M3x10
ADF drive unit support plate
ADF drive unit
(3_024_E)
