3-49
Confidential

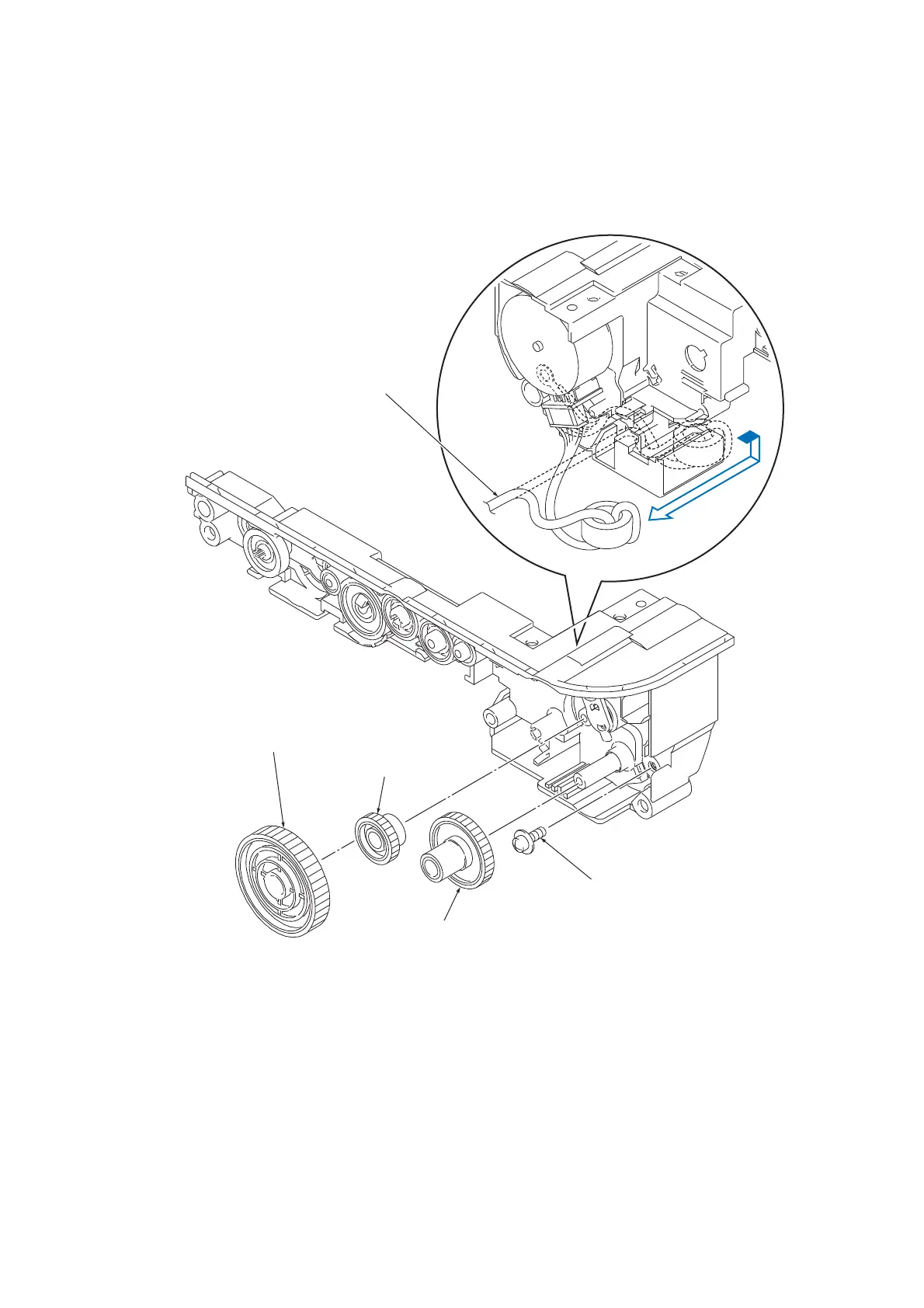

(5) Release the wiring of the ADF motor harness.
(6) Remove the gear70, gear20/31 and gear18/48 and remove the screw (SCREW PAN (S/P
WASHER) M3x6).
Note: If any other gears slip off, reposition them, referring to Section 6 in this chapter.
Gear 70
Gear 18/48
Gear 20/31
SCREW PAN
(S/P WASHER㧕
M3x6
ADF motor harness
(3_025_E)
