3-50
Confidential

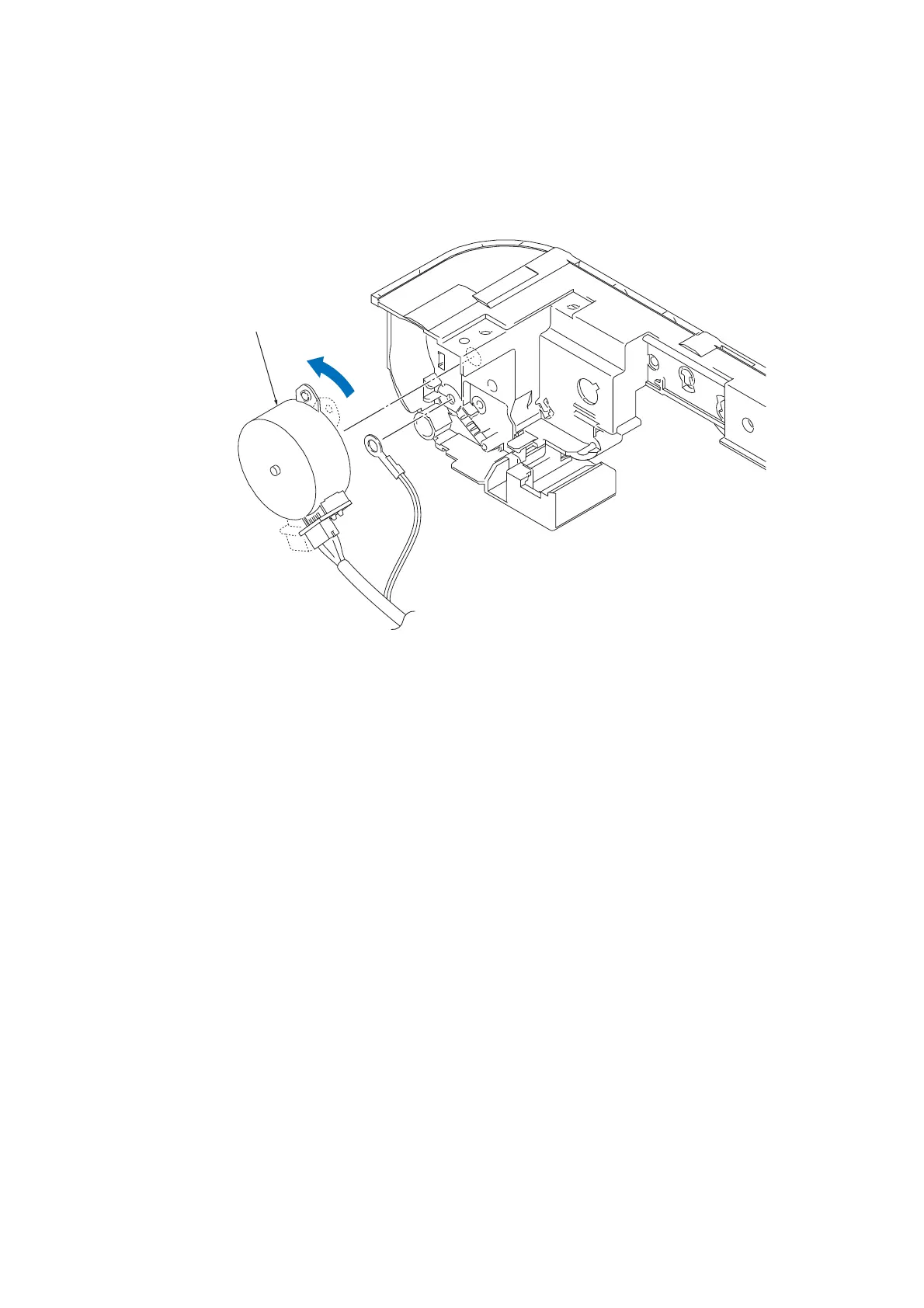

(7) Turn the ADF motor in the direction of the arrow to remove it.
Note: Sandwich the ADF motor grounding wire between the ADF motor and the ADF drive
unit and secure it with the screw (SCREW PAN (S/P WASHER) M3x6) together with the ADF
motor.
(3_026_E)
ADF motor
