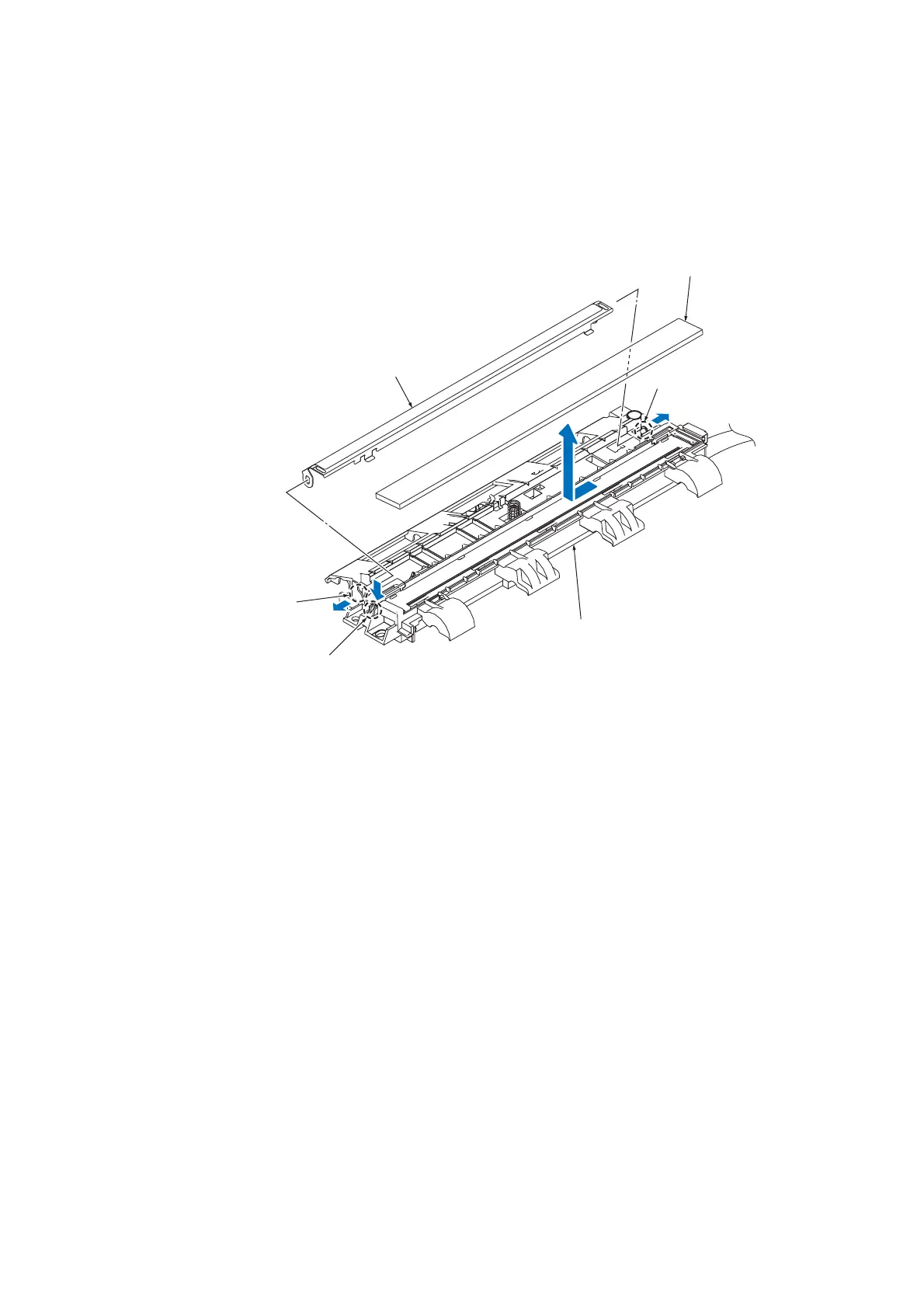

(4) Pull the boss outwards and remove the document pressure bar.
(5) Push down the stopper, slide the CIS glass to the stopper side, lift up the other end of the
CIS glass, and remove it.
Note: When removing the CIS glass, take care not to stain it with dust or fingerprints. If it is
stained, wipe it off with a soft, dry cloth.
Lower document chute
Boss
Document pressure bar
Stopper
Boss
CIS glass
(3_134_E)
