3-53
Confidential

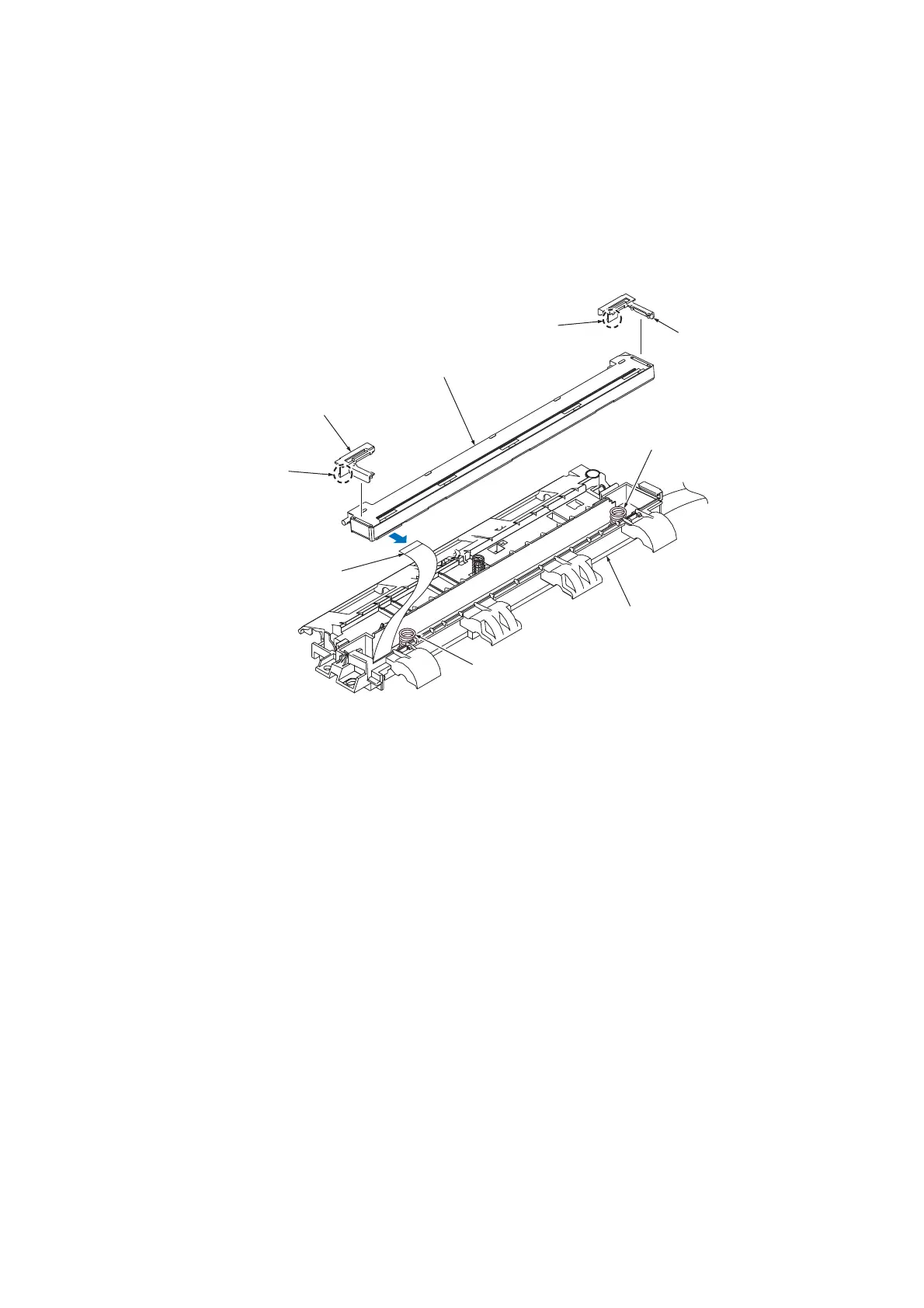

(6) Release the hook and remove the second side CIS guide.
(7) Remove the second side CIS unit and disconnect the second side CIS flat cable from the
CIS unit.
Note: Do not touch the lens of the second side CIS unit with your hands.
Assembling Note: Make sure that the second side CIS unit springs are not lying flat or out of
place.
Hook
Second side CIS guide
Second side CIS unit
Second side
CIS guide
Hook
Second side
CIS flat cable
Lower document chute
Second side CIS unit spring
Second side CIS unit spring
(3_135_E)
To Next Page
