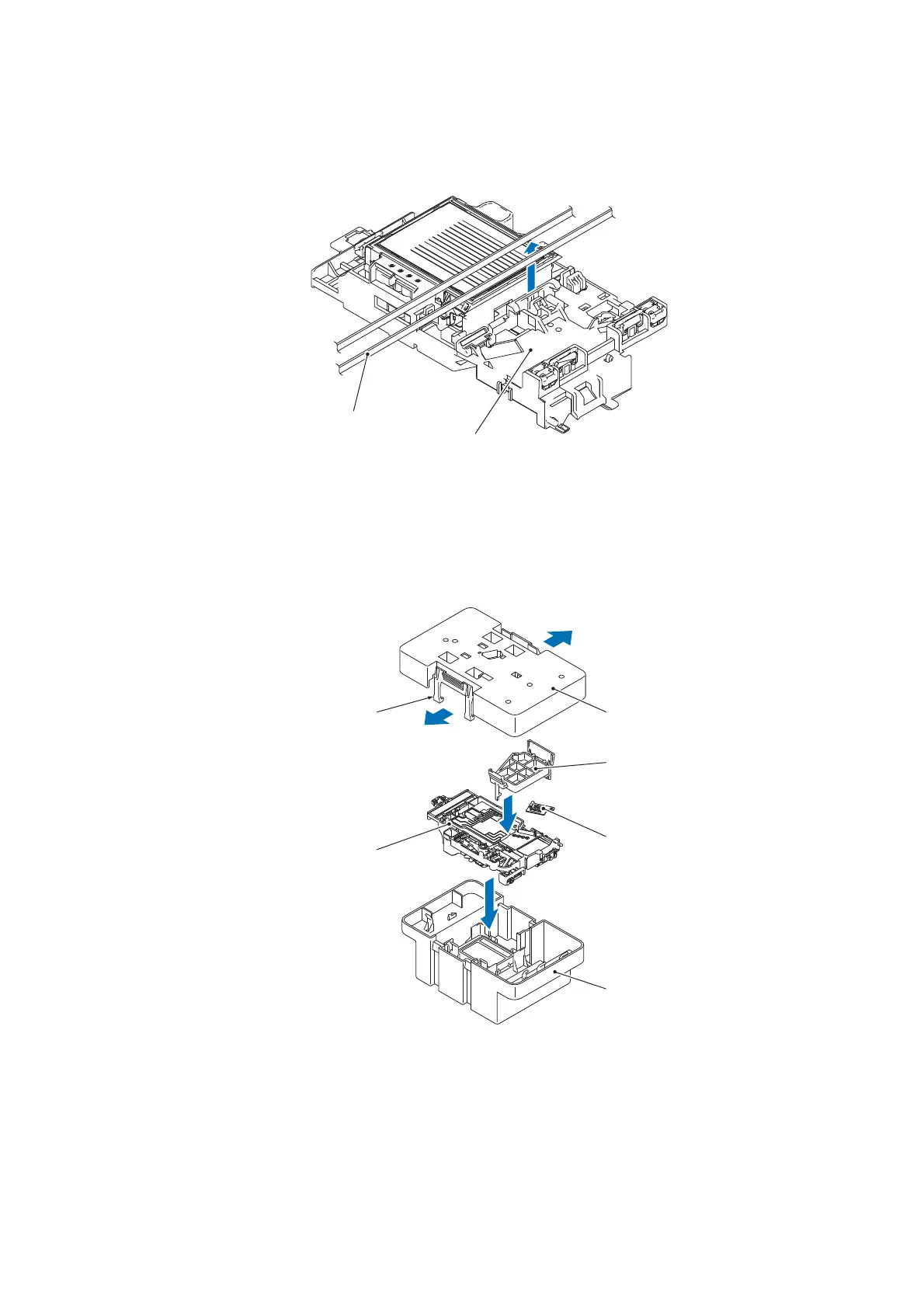

(16) Remove the CR timing belt from the head/carriage unit.
Note: When storing the removed head/carriage unit for a long period, store the unit in a head
casing as shown below. Leaving it out of the casing causes the head nozzles and ink supply
ports to dry up so that the head/carriage unit can no longer provide the original performance.
Head/carriage unit
CR timing belt
(3_070_E)
Head/carriage unit
Latch
Head joint rubber
Head casing (lower)
Joint cap
Head casing (upper)
(3_071_E)
