3-89
Confidential

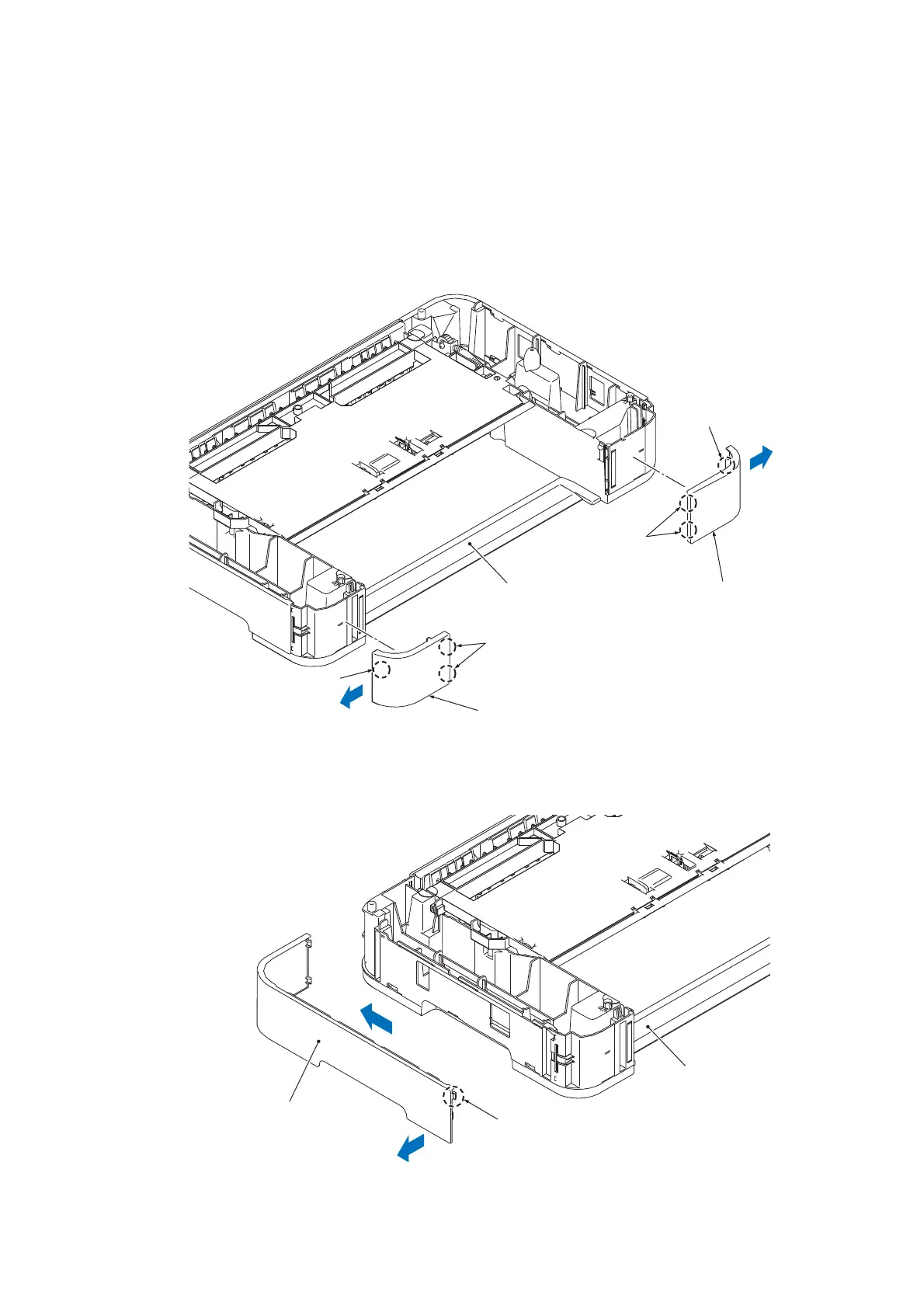

(2) Release two front hooks on the LT front cover L.
(3) Pull the LT front cover L outwards to release the rear hooks and remove the LT front cover
L.
(4) Release two front hooks on the LT front cover R.
(5) Pull the LT front cover R outwards to release the rear hooks and remove the LT front cover
R.
(6) While pulling the LT side cover L to the rear, pull it outwards to release the hooks and
remove the LT side cover L.
Hooks
Hooks
Hook
Hook
(Rear)
(Front)
Lower tray unit
LT front cover L
LT front cover R
(3_138_1_E)
LT side cover L
Hook
(Rear)
(Front)
Lower tray unit
(3_139_1_E)
