3-90
Confidential

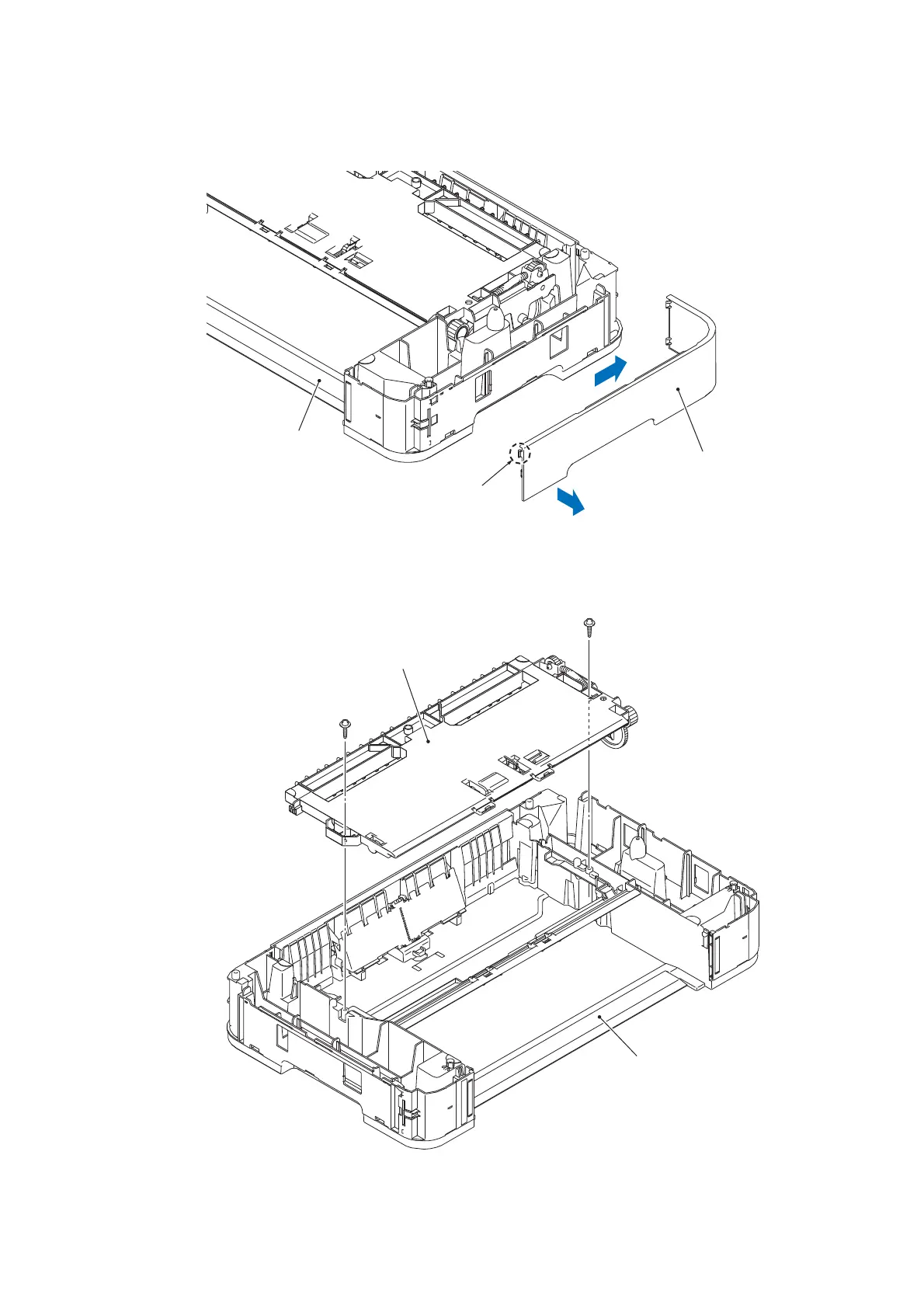

(7) While pulling the LT side cover R to the rear, pull it outwards to release the hooks and
remove the LT side cover R.
(8) Remove two screws (TAPTITE CUP B M3x10) and remove the lower tray frame.
LT side cover R
(Rear)
(Front)
Lower tray unit
Hook
(3_140_1_E)
(Rear)
(Front)
Lower tray unit
Lower tray frame
TAPTITE CUP B M3x10
(3_141_1_E)
