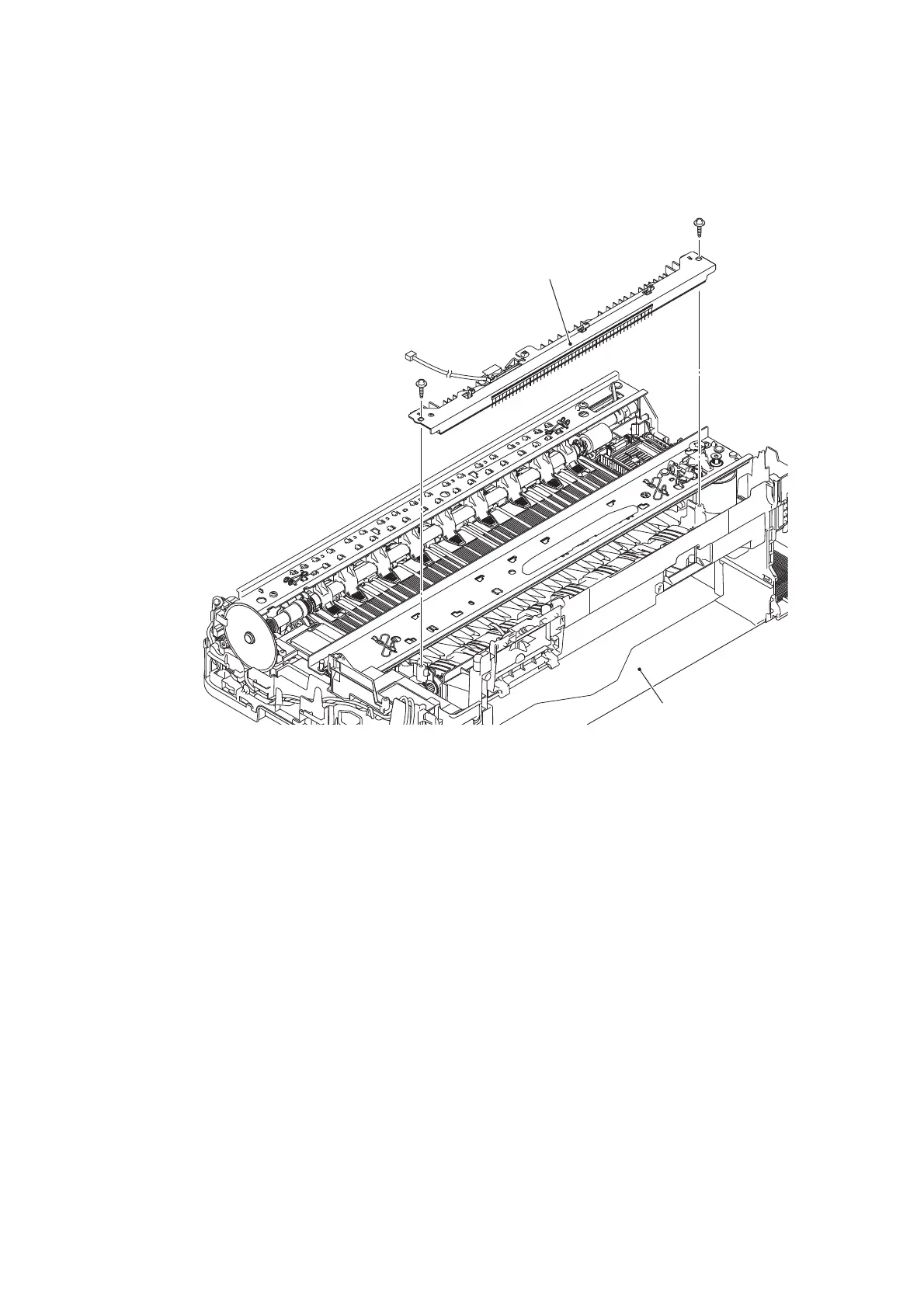

(3) Release the wiring of the switchback sensor PCB.
(4) Remove the two screws (TAPTITE CUP B M3x10) and remove the switchback frame
ASSY.
TAPTITE CUP B M3x10
Switchback frame ASSY
(Rear)
(Front)
Lower cover
(3_090-1_E)
