3-105
Confidential

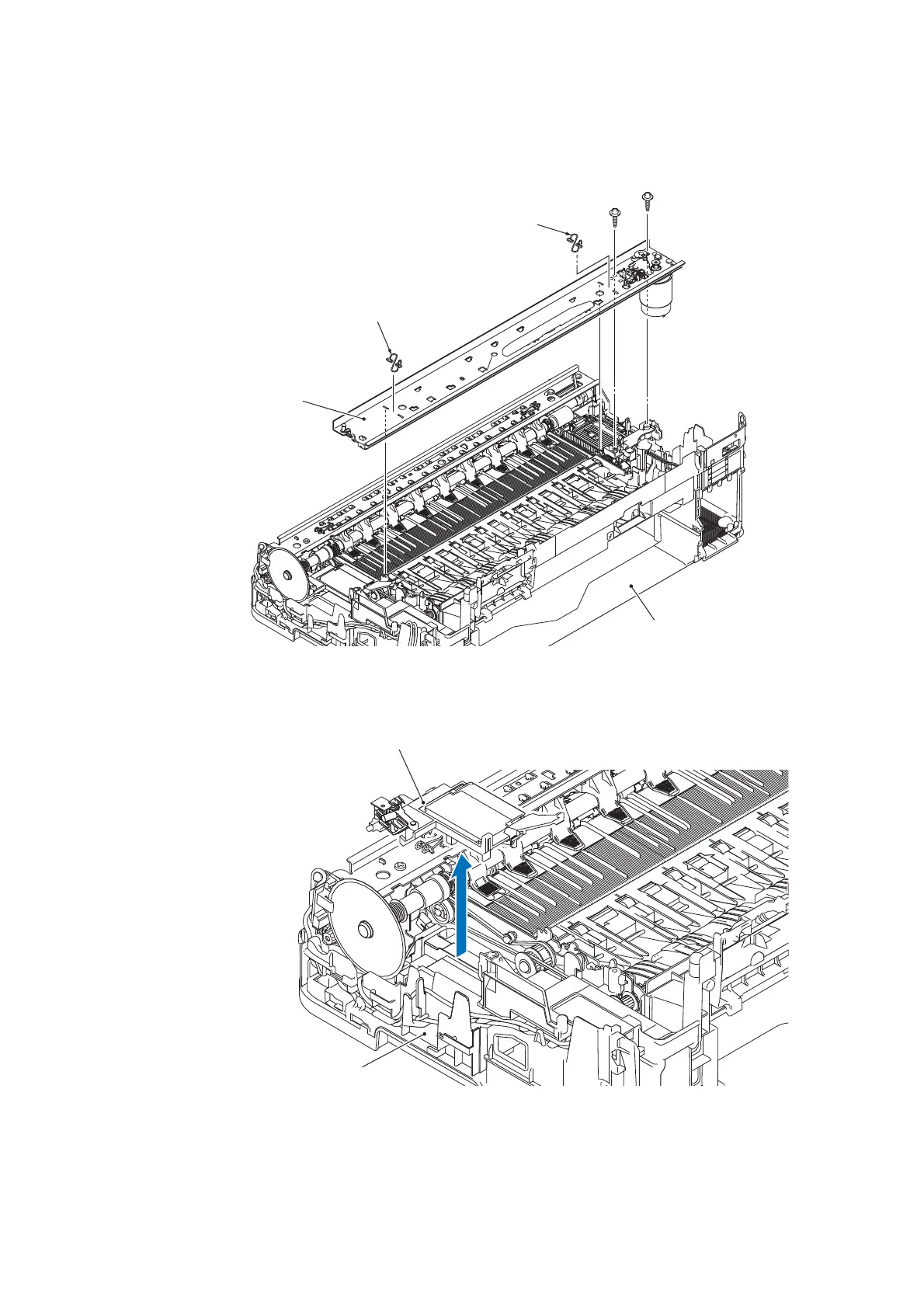

(5) Remove the two CR frame springs and two screws (TAPTITE CUP B M3x10) and remove
the CR frame.
(6) Remove the flushing base.
CR frame
TAPTITE CUP B M3x10
(Rear)
CR frame spring
CR frame spring
(Front)
Lower cover
(3_086-1_E)
(Rear)
Lower cover
Flushing base
(3_087-1_E)
