3-121
Confidential

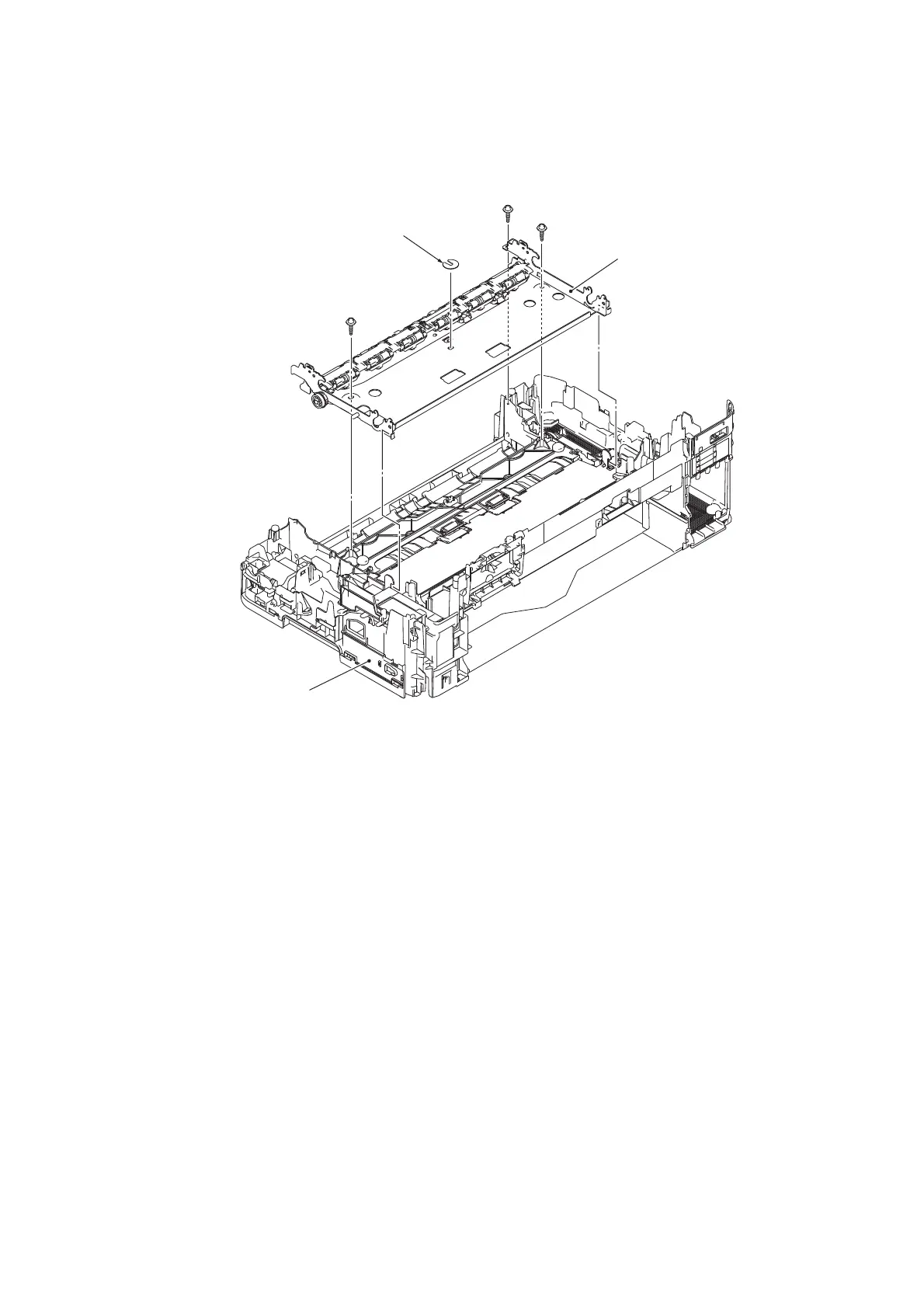

(2) Remove the three screws (TAPTITE CUP B M3x10).
(3) Remove the frame base stopper ring, lift up the rear end of the frame base, and take it off
the lower cover.
TAPTITE CUP B M3x10
(Rear)
(Front)
Lower cover
Frame base
Frame base stopper ring
(3_110_E)
