3-122
Confidential

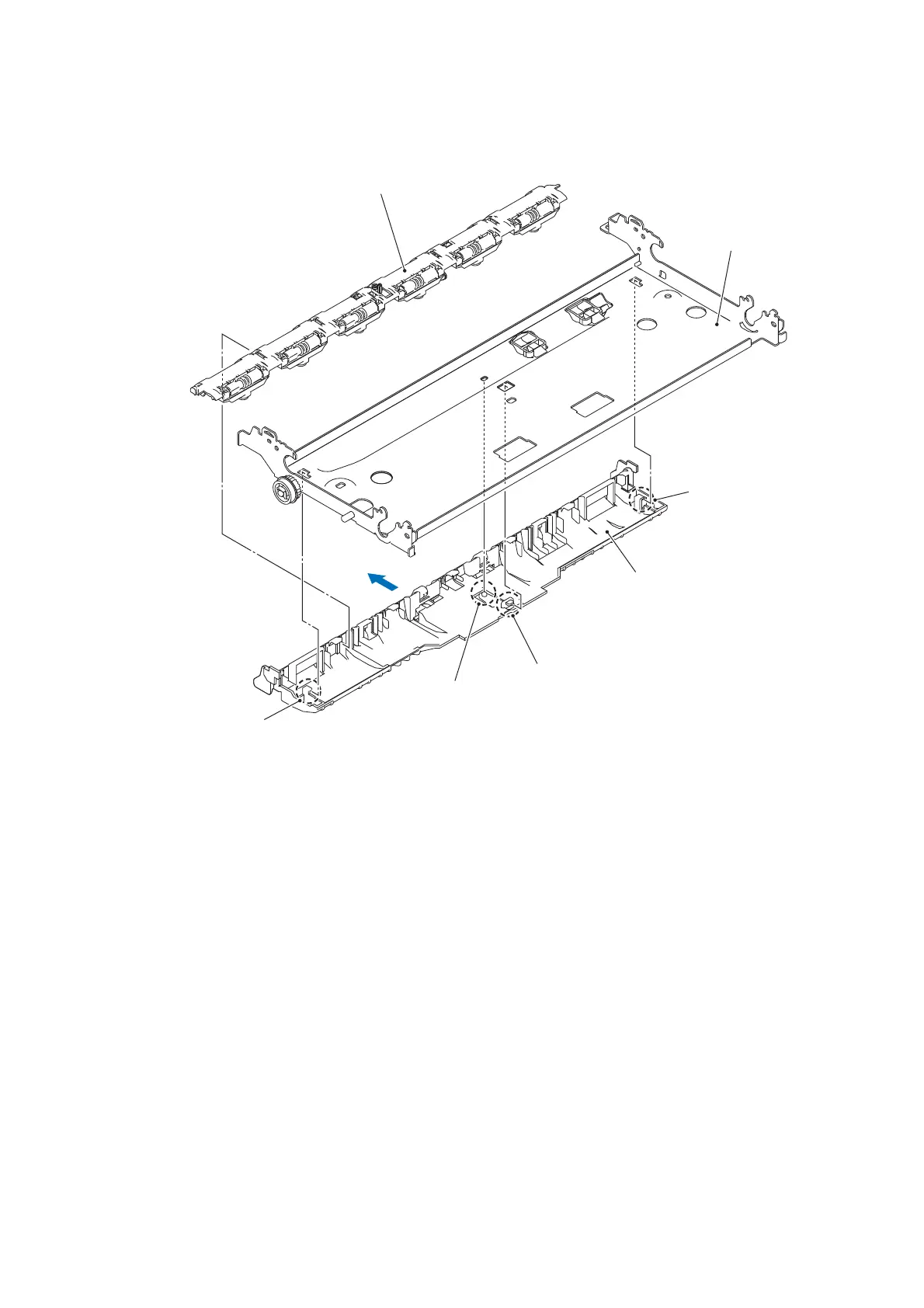

(4) Release the hooks on the DX paper guide ASSY, slide it in the direction of the arrow, and
remove the DX paper guide ASSY and the inner chute ASSY from the frame base.
(Rear)
(Front)
Frame base
Inner chute ASSY
Hook
Hook
Boss
Hook
(3_111_E)
DX paper guide ASSY
