3-34
Confidential
9.4 MP Tray ASSY/MP Paper Detection Sensor PCB
(1) Remove the MP drive shaft from the MP drive gear holder 3.
Note: Be careful not to lose the MP drive gear which easily comes off from the MP
drive gear holder 3.
Assembling Note: When mounting the MP drive shaft, insert it into the MP drive gear
and MP drive gear holder 3.

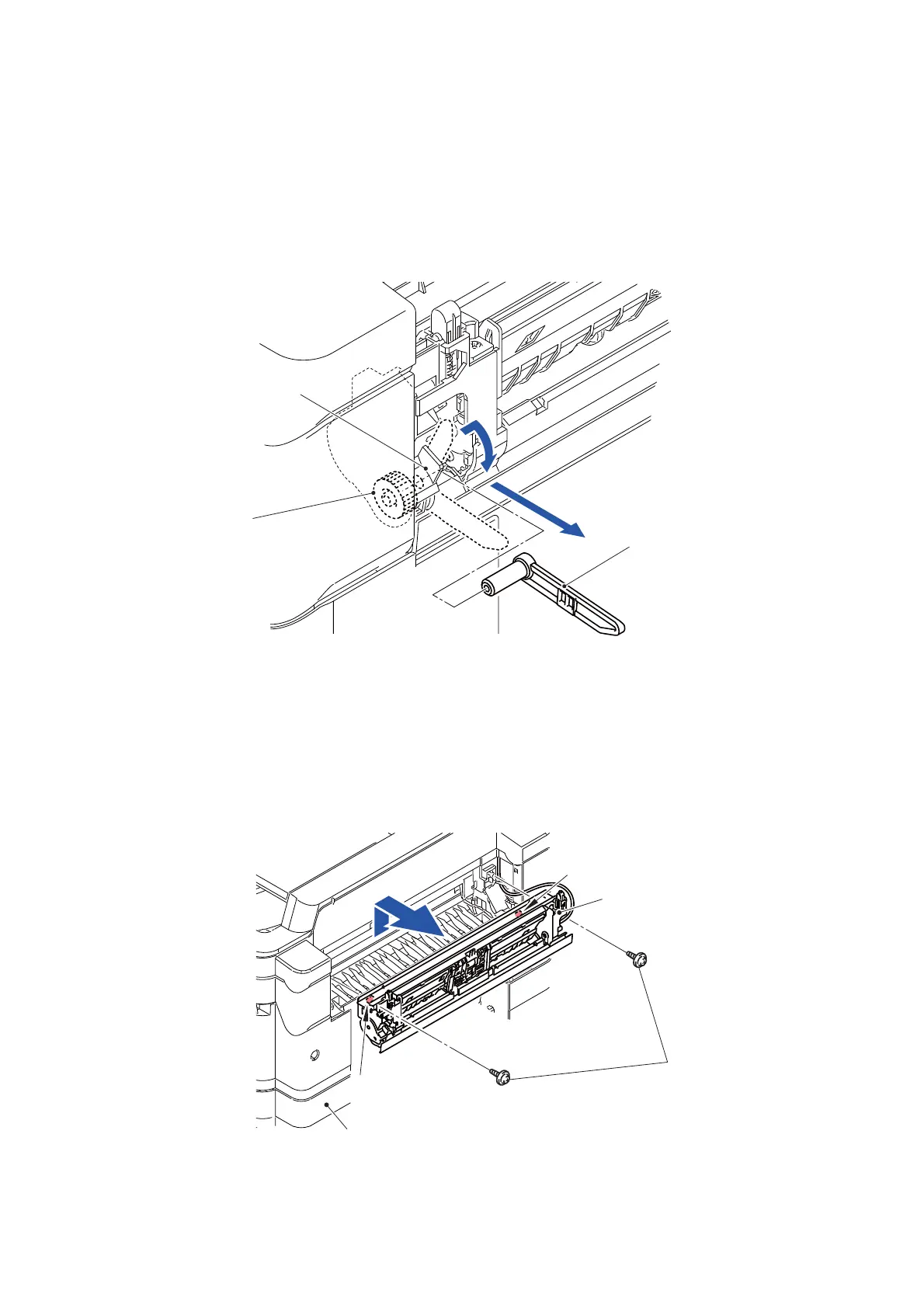

Fig. 3-5
(2) Remove the two screws (TAPTITE CUP B M4x12).
(3) Release the two Pins and remove the MP tray ASSY from the Main body.
Note: A harness is connected to the MP tray ASSY from the Main body, and therefore
be careful not to pull the MP tray ASSY too much when you remove it.
Fig. 3-6
MP drive shaft
MP drive gear holder 3
MP drive gear
MP tray ASSY
TAPTITE CUP
Main body
B M4x12
Pin
Pin
