Brother MFC-J5330DW Service Manual

3-70
Confidential

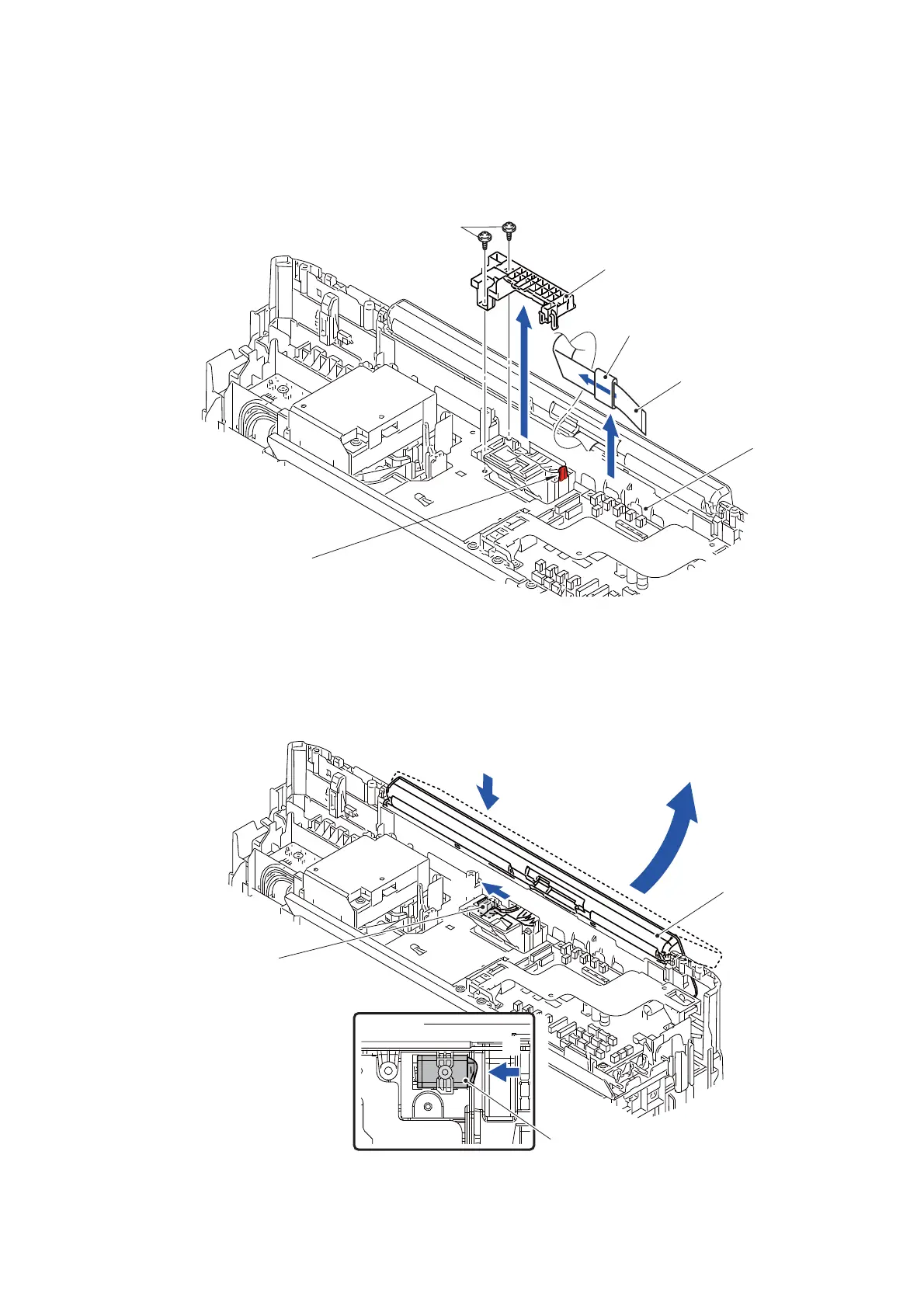

(7) Remove the Flat core from the Lower cover and pull out the Panel flat cable from
the Flat core.
(8) Remove the two screws (TAPTITE CUP B M3x10).
(9) Release the Hook and remove the Tilt cover from the Lower cover.
Fig. 3-65
(10)Tilt the Control panel ASSY in the direction of the arrow.
(11)Push the Tilt ratch in the direction of the arrow until clicks.
Note: Since grease is applied to the Tilt ratch, be careful not to get smeared with the
grease when pushing the Tilt ratch in.
Fig. 3-66
TAPTITE CUP B M3x10
Tilt cover
Flat core
Panel flat cable
7a
7b
9
Lower cover
Hook
10
Tilt ratch
Control panel ASSY
11
Tilt ratch
A view
<A view>
11
