Brother MFC-J5330DW Service Manual

4-11
Confidential
(11)Wait for the confirmation screen of the serial number entered and the head
property code to appear, then click Yes.
Tip: Opening the scanner cover when the machine is on standby and holding
down the X key for at least 5 seconds moves the head/carriage unit to the
center of its travel. This makes it possible to check the property label through
the opening.
(12)Use Maintenance mode 80 to display the head property data and check that the
entered data is correct.
2.2 Perform ink supply purge (Maintenance mode 76)
(1) Open the ink cartridge cover, set comparatively-new ink cartridges (having
sufficient ink) into the ink refill ASSY, and close the ink cartridge cover.
(2) Carry out a purge operation (with maintenance code 76) using the steps below.
1) Press the 7 and 6 keys in this order.
The machine displays "CLEANING ALL" on the LCD and enters the purge
mode.
2) Press the 4 and Mono Start keys in this order to start an initial purge.
The machine starts an initial purge that refills the ink supply tubes and the print
head with fresh ink.
2.3 Check head nozzles (Maintenance mode 09)
To check that the head/carriage unit normally sprays ink droplets from all head nozzles,
print out a nozzle test pattern with Maintenance mode 09 with the following steps.
(1) Press the 0, 9
and Mono Start keys in this order to print out a nozzle test pattern.
(2) If dot missing or any other print quality problem is found, use Maintenance mode
76 to perform an appropriate purge operation (refer to Chapter 5, Section 1.3.27
"Purge Operation (Maintenance mode 76).")
2.4 Adjust head inclination
(1) In Maintenance mode 65 (refer to Chapter 5, Section 1.3.21 "Adjustment of Software
Correction for Inclination/Corrugation/Ruled Lines (Maintenance mode 65)."), print
and correct the adjustment patterns.
(2) Re-print the adjustment patterns. If the sum of the selected values for Pattern C
and Pattern D is between 8 and 12 inclusive, then the correction steps have been
completed. If the sum of the selected values is 7 or smaller, or 13 or larger, then
adjust the inclination of the head/carriage unit.

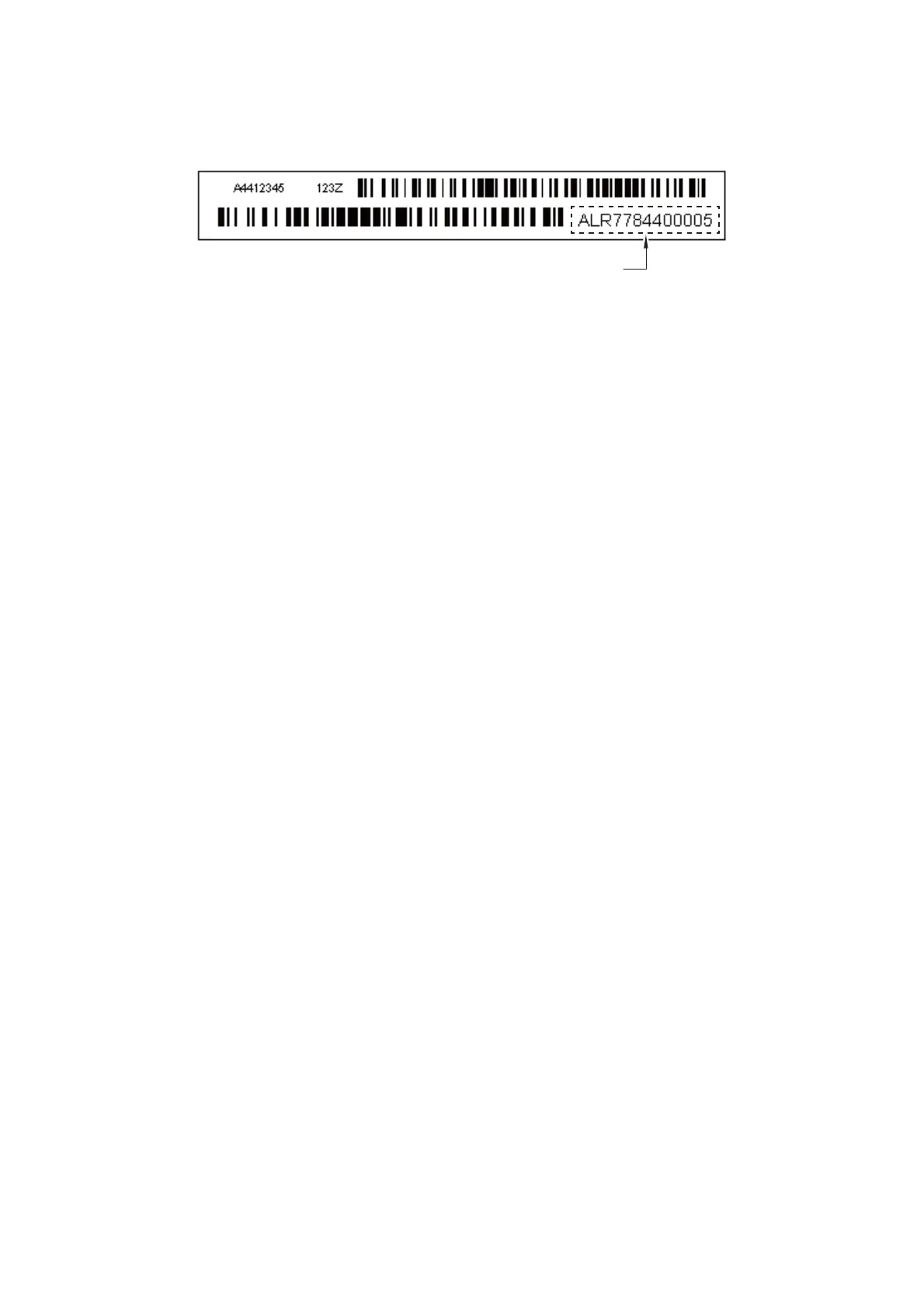

HEM
Head property data

Brother MFC-J5330DW Specifications

General

Type	all in one, fax
Color	black
Touch Screen	yes
Display Size	2.7 inches
Tray Capacity	250
Output Tray Capacity	100
Automatic Document Feeder Capacity	50 sheets
Paper Size	letter, executive, envelope (com-10, dl envelope, monarch), a4, a5, a6 photo 4"x6", 3.5"x5", 5"x7", 5"x8", manual by-pass: 3.5" x 5" to 11" x 17"
Printing Method	color
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 4800 x 1200
Print Resolution Color	up to 4800 x 1200
Media Types	glossy paper, inkjet paper (coated paper), plain paper, recycled paper
Two-Sided Printing	no
Maximum Number of Pages Per Month	up to 30, 000
Reduction and Enlargement	yes
Photo Printing	yes
Scanner Type	flatbed
Scan Resolution	up to 2400 x 2400
Duplex Scan	yes
Copier Resolution Mono	up to 4800 x 1200
Copier Resolution Color	up to 4800 x 1200
Fax Function	yes
Cartridges	lc3019bk/c/m/y inkvestment super high-yield cartridges, lc3017bk/c/m/y inkvestment super high-yield cartridges
Number Of Cartridges	4
Number of Ink Tanks	0
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	apple airprint, brother iprint&scan, google cloud print, mopria print service, usb, wi-fi, wi-fi direct
OS Compatibility	windows vista, 7, 8, 8.1, 10 home, 10 pro, 10 education, 10 enterprise, os x v10.9.5, os x v10.10.x, os x v10.11.x, hard disk space for drivers and apps
Mobile Devices Connection	yes

Weight and Dimensions

Depth	12 inches
Height	12 inches
Width	20.9 inches
Net Weight	36.8 pounds
