3-48
Confidential

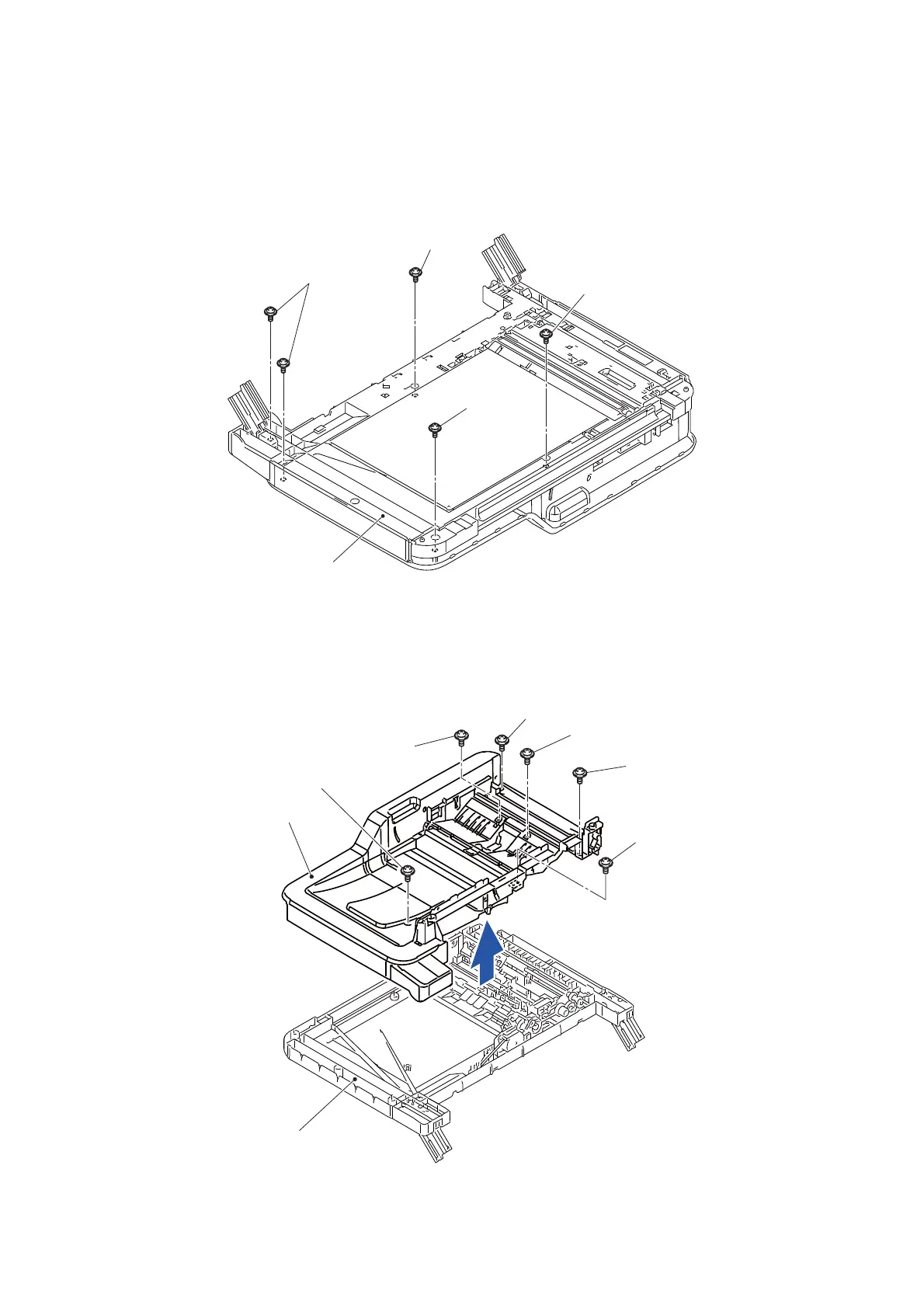

9.15 ADF Hinge
(1) Turn the ADF unit upside down.
(2) Remove the two screws (TAPTITE CUP B M3x10) and the three screws (TAPTITE
CUP B M2.6x10) from the ADF unit.
Fig. 3-31
(3) Turn the ADF unit right side up.
(4) Remove the four screws (TAPTITE CUP B M3x10) and the two screws (TAPTITE
CUP B M3x12) and remove the Document cover top ASSY from the ADF unit.
Fig. 3-32
TAPTITE CUP B M2.6x10
TAPTITE CUP
ADF unit
B M2.6x10
TAPTITE CUP B M3x10
TAPTITE CUP B M3x10
TAPTITE CUP B M3x10
TAPTITE CUP B M3x12
TAPTITE CUP B M3x10
Document cover top ASSY
ADF unit
TAPTITE CUP B M3x10
TAPTITE CUP B M3x10
TAPTITE CUP B M3x12
