Brother MFC-J5330DW Service Manual

3-52
Confidential
9.18 Second Side CIS Flat Cable/Second Side CIS Unit

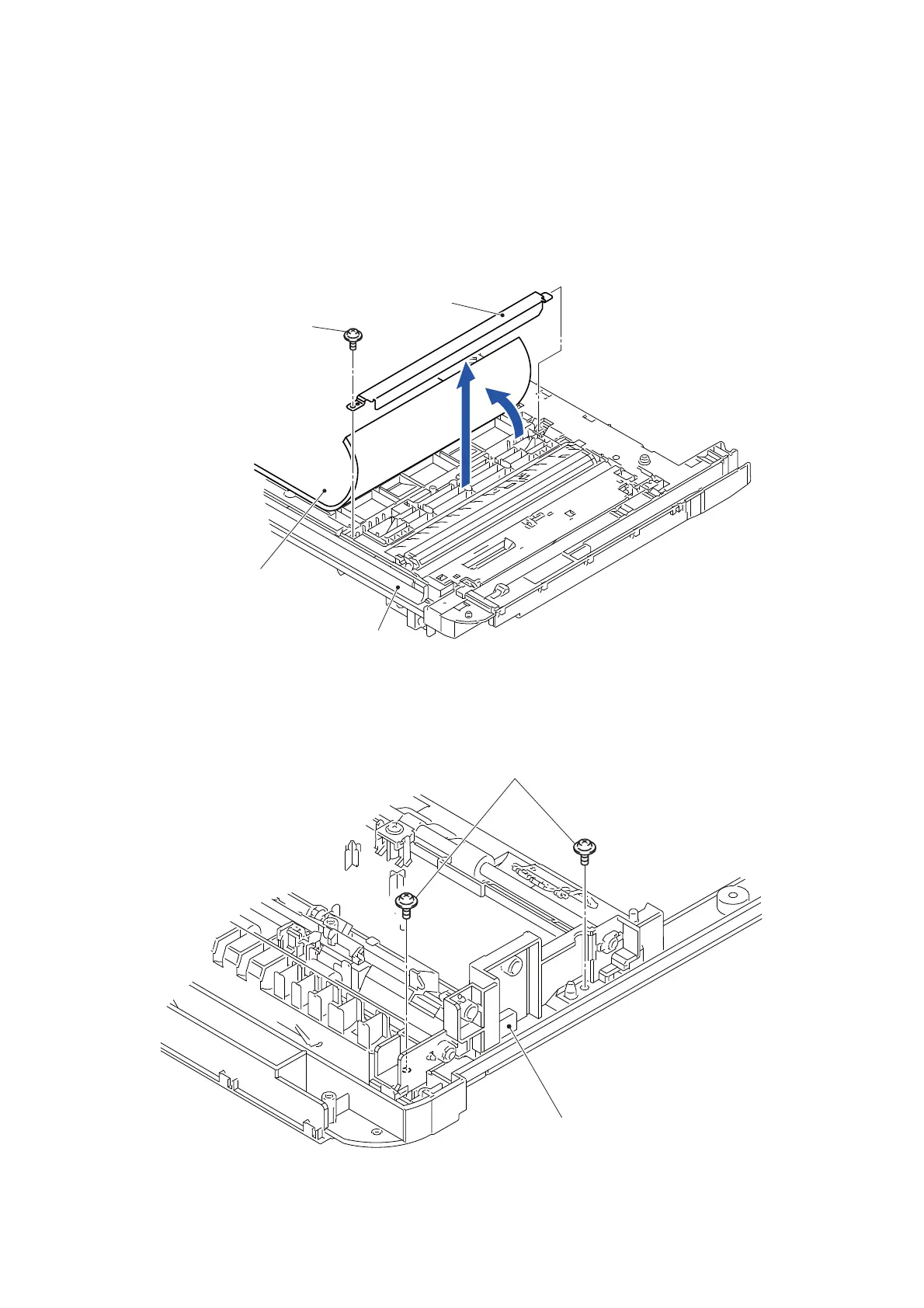

(1) Turn the ADF unit upside down.
(2) Remove the screw (TAPTITE CUP B M3x10) from the Exit support plate.
(3) Slightly flip the Document sponge which is fixed with double-sided adhesive tape
and remove the Exit support plate from the ADF unit.
Note: When you flip the Document sponge, be careful not to crease and/or stain the
Document sponge.
Fig. 3-38
(4) Turn the ADF unit right side up.
(5) Remove the two screws (TAPTITE CUP B M3x10) from the Lower doc chute
ASSY.
Fig. 3-39
TAPTITE CUP B M3x10
Document sponge
ADF unit
Exit support plate
3b
3a
TAPTITE CUP B M3x10
Lower doc chute ASSY

Brother MFC-J5330DW Specifications

General

Type	all in one, fax
Color	black
Touch Screen	yes
Display Size	2.7 inches
Tray Capacity	250
Output Tray Capacity	100
Automatic Document Feeder Capacity	50 sheets
Paper Size	letter, executive, envelope (com-10, dl envelope, monarch), a4, a5, a6 photo 4"x6", 3.5"x5", 5"x7", 5"x8", manual by-pass: 3.5" x 5" to 11" x 17"
Printing Method	color
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 4800 x 1200
Print Resolution Color	up to 4800 x 1200
Media Types	glossy paper, inkjet paper (coated paper), plain paper, recycled paper
Two-Sided Printing	no
Maximum Number of Pages Per Month	up to 30, 000
Reduction and Enlargement	yes
Photo Printing	yes
Scanner Type	flatbed
Scan Resolution	up to 2400 x 2400
Duplex Scan	yes
Copier Resolution Mono	up to 4800 x 1200
Copier Resolution Color	up to 4800 x 1200
Fax Function	yes
Cartridges	lc3019bk/c/m/y inkvestment super high-yield cartridges, lc3017bk/c/m/y inkvestment super high-yield cartridges
Number Of Cartridges	4
Number of Ink Tanks	0
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	apple airprint, brother iprint&scan, google cloud print, mopria print service, usb, wi-fi, wi-fi direct
OS Compatibility	windows vista, 7, 8, 8.1, 10 home, 10 pro, 10 education, 10 enterprise, os x v10.9.5, os x v10.10.x, os x v10.11.x, hard disk space for drivers and apps
Mobile Devices Connection	yes

Weight and Dimensions

Depth	12 inches
Height	12 inches
Width	20.9 inches
Net Weight	36.8 pounds
