Brother MFC-J5330DW Service Manual

3-131
Confidential
9.61 T1 Base Pad / T2 Base Pad

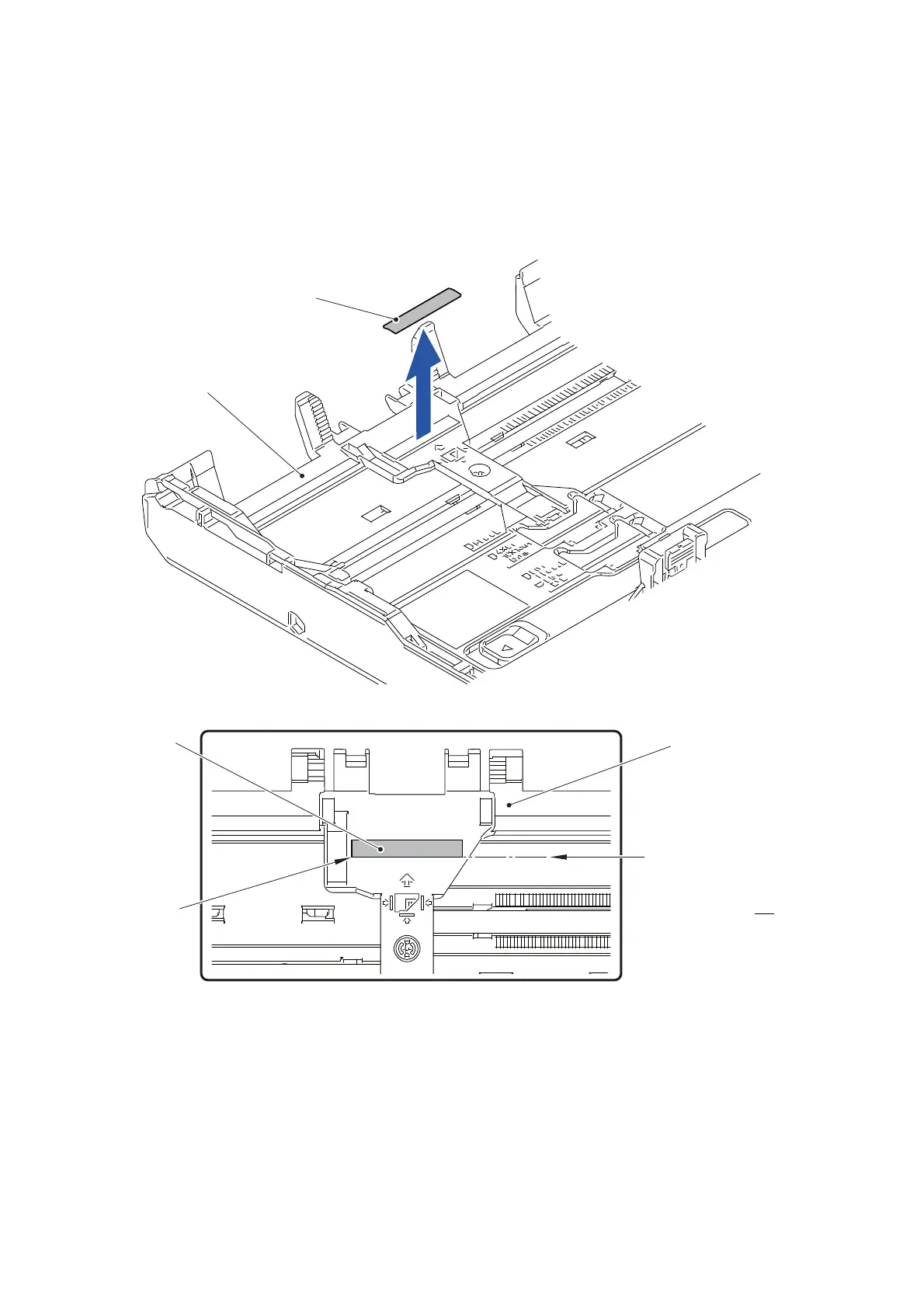

(1) Peel off the T1 base pad from the Paper tray ASSY #1.
Note: Once the T1 base pad is peeled off, it cannot be used again so that the pad
needs to be replaced with a new one.
(2) With the same procedure, peel off the T2 base pad from the Paper tray ASSY #2.
Fig. 3-169
Assembling Note: When attaching a new T1 base pad to the Paper tray ASSY #1,
align the front edge of the pad with that of the Depressed section on
the Paper tray ASSY #1 and center the pad widthways as shown
above.
Paper tray ASSY #1
T1 base pad
T1 base pad
Paper tray ASSY #1
Depressed
section
Align the edge of the
T1 base pad with the front
edge of the depressed
section at the bottom of
the Paper tray (this line
).

Brother MFC-J5330DW Specifications

General

Type	all in one, fax
Color	black
Touch Screen	yes
Display Size	2.7 inches
Tray Capacity	250
Output Tray Capacity	100
Automatic Document Feeder Capacity	50 sheets
Paper Size	letter, executive, envelope (com-10, dl envelope, monarch), a4, a5, a6 photo 4"x6", 3.5"x5", 5"x7", 5"x8", manual by-pass: 3.5" x 5" to 11" x 17"
Printing Method	color
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 4800 x 1200
Print Resolution Color	up to 4800 x 1200
Media Types	glossy paper, inkjet paper (coated paper), plain paper, recycled paper
Two-Sided Printing	no
Maximum Number of Pages Per Month	up to 30, 000
Reduction and Enlargement	yes
Photo Printing	yes
Scanner Type	flatbed
Scan Resolution	up to 2400 x 2400
Duplex Scan	yes
Copier Resolution Mono	up to 4800 x 1200
Copier Resolution Color	up to 4800 x 1200
Fax Function	yes
Cartridges	lc3019bk/c/m/y inkvestment super high-yield cartridges, lc3017bk/c/m/y inkvestment super high-yield cartridges
Number Of Cartridges	4
Number of Ink Tanks	0
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	apple airprint, brother iprint&scan, google cloud print, mopria print service, usb, wi-fi, wi-fi direct
OS Compatibility	windows vista, 7, 8, 8.1, 10 home, 10 pro, 10 education, 10 enterprise, os x v10.9.5, os x v10.10.x, os x v10.11.x, hard disk space for drivers and apps
Mobile Devices Connection	yes

Weight and Dimensions

Depth	12 inches
Height	12 inches
Width	20.9 inches
Net Weight	36.8 pounds
