Brother MFC-J5330DW Service Manual

3-51
Confidential
9.17 Document Scanning Position Sensor PCB
(1) Turn the Bushing of the Document feed roller 1 in the direction of the arrow 1a to
unlock it.
(2) Remove the Document feed roller 1 from the Lower doc chute ASSY.

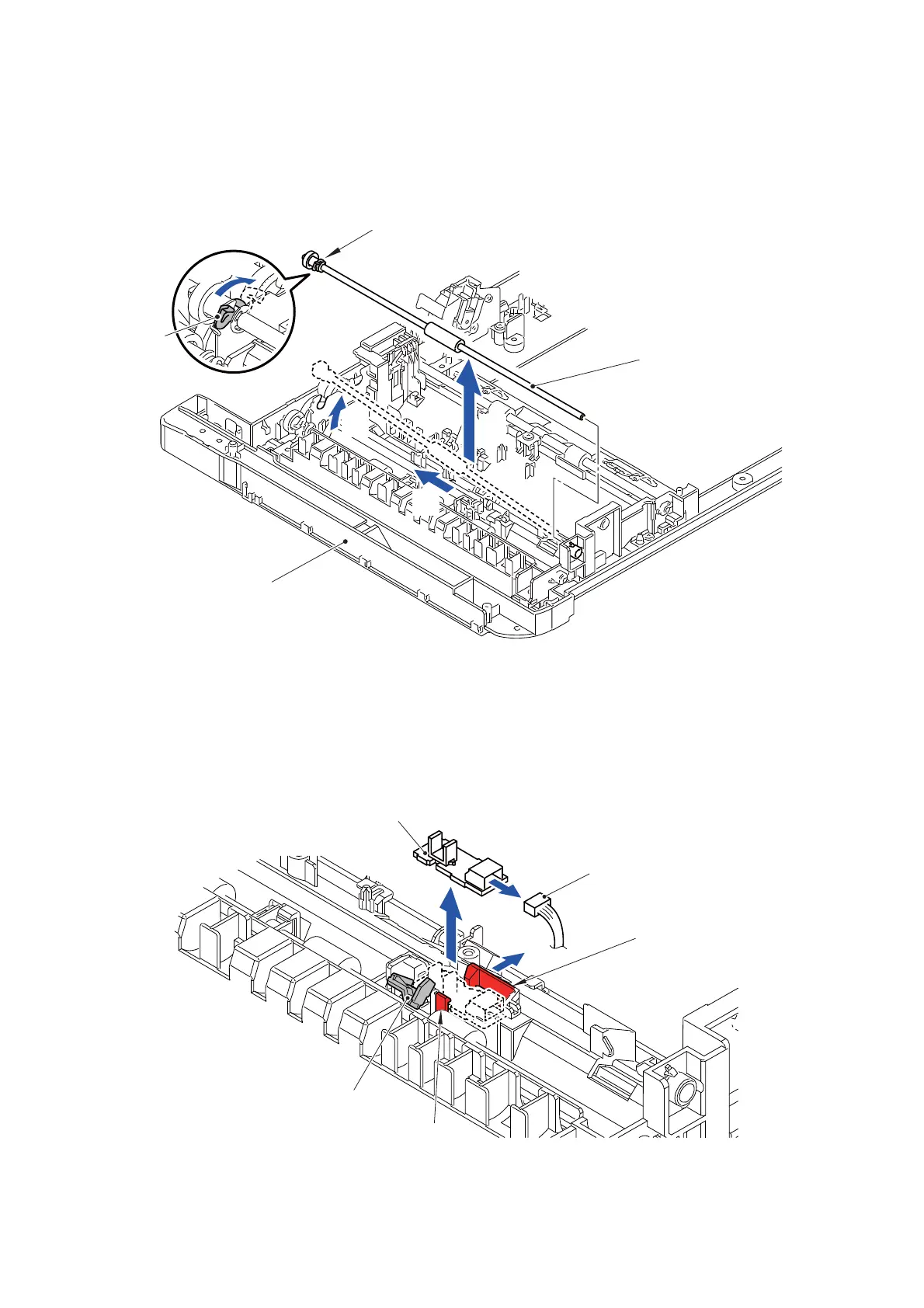

Fig. 3-36
(3) Keep the Actuator R at the position shown in the figure.
(4) Push the Lock arm in the direction of the arrow 4a and release the Hook. Remove
the Document scanning position sensor PCB from the Lower doc chute ASSY.
(5) Disconnect the Connector from the Document scanning position sensor PCB.
Fig. 3-37
Document feed roller 1
Bushing
Lower doc chute ASSY
1a
Bushing
2b
2a
2c
Actuator R
Document scanning position sensor PCB
Connector
4a
Lock arm
4b
5
Hook

Brother MFC-J5330DW Specifications

General

Type	all in one, fax
Color	black
Touch Screen	yes
Display Size	2.7 inches
Tray Capacity	250
Output Tray Capacity	100
Automatic Document Feeder Capacity	50 sheets
Paper Size	letter, executive, envelope (com-10, dl envelope, monarch), a4, a5, a6 photo 4"x6", 3.5"x5", 5"x7", 5"x8", manual by-pass: 3.5" x 5" to 11" x 17"
Printing Method	color
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 4800 x 1200
Print Resolution Color	up to 4800 x 1200
Media Types	glossy paper, inkjet paper (coated paper), plain paper, recycled paper
Two-Sided Printing	no
Maximum Number of Pages Per Month	up to 30, 000
Reduction and Enlargement	yes
Photo Printing	yes
Scanner Type	flatbed
Scan Resolution	up to 2400 x 2400
Duplex Scan	yes
Copier Resolution Mono	up to 4800 x 1200
Copier Resolution Color	up to 4800 x 1200
Fax Function	yes
Cartridges	lc3019bk/c/m/y inkvestment super high-yield cartridges, lc3017bk/c/m/y inkvestment super high-yield cartridges
Number Of Cartridges	4
Number of Ink Tanks	0
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	apple airprint, brother iprint&scan, google cloud print, mopria print service, usb, wi-fi, wi-fi direct
OS Compatibility	windows vista, 7, 8, 8.1, 10 home, 10 pro, 10 education, 10 enterprise, os x v10.9.5, os x v10.10.x, os x v10.11.x, hard disk space for drivers and apps
Mobile Devices Connection	yes

Weight and Dimensions

Depth	12 inches
Height	12 inches
Width	20.9 inches
Net Weight	36.8 pounds
