Brother MFC-J5330DW Service Manual

3-104
Confidential

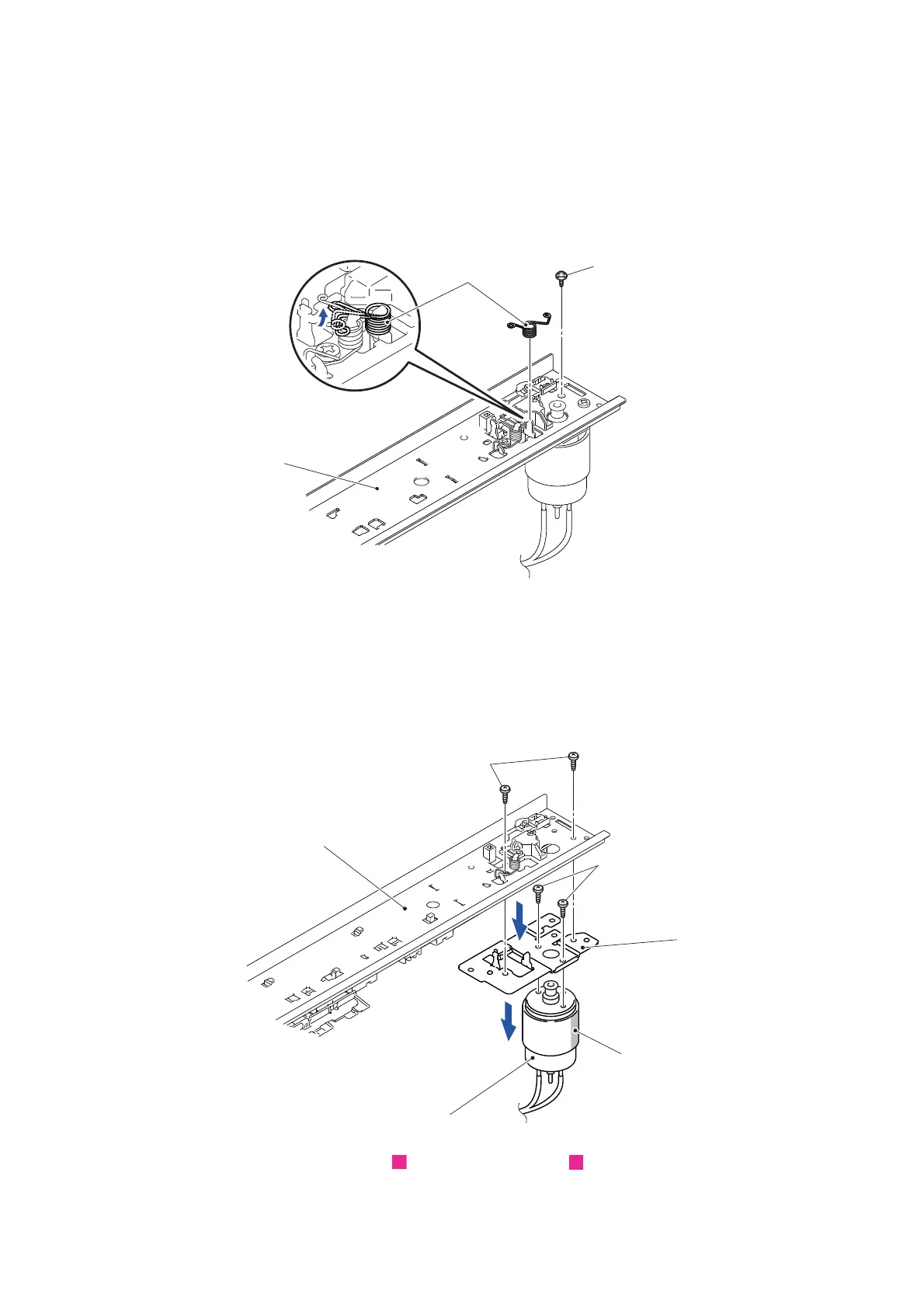

(11)Remove the screw (TAPTITE CUP S M3x6) from the CR frame ASSY.
Assembling Note: Tighten the screw (TAPTITE CUP S M3x6) temporarily and then
perform the following procedures before mounting the Upper cover.
1) Mount the Head/carriage unit and CR timing belt to the CR frame ASSY.
2) Tighten the one screw (TAPTITE CUP S M3x6) firmly.
(12)Remove the Belt tension spring from the CR frame ASSY.
Fig. 3-123
(13)Remove the two screws (SCREW BIND M3x6) and remove the Motor plate from
the CR frame ASSY.
(14)Remove the two screws (SCREW BIND M3x6) and remove the Carriage motor
from the Motor plate.
Assembling Note: Assemble the carriage motor in a way that the print section comes
to the position shown in the figure.
Fig. 3-124
Routing of harnesses: See “ Lower side cover”, “ Carriage motor harness/ASF
motor harness ASSY”.
TAPTITE CUP S M3x6
Belt tension spring
CR frame ASSY
SCREW BIND M3x6
CR frame ASSY
Motor plate
Print section
Carriage motor
SCREW BIND M3x6
13
14
13
20

Brother MFC-J5330DW Specifications

General

Type	all in one, fax
Color	black
Touch Screen	yes
Display Size	2.7 inches
Tray Capacity	250
Output Tray Capacity	100
Automatic Document Feeder Capacity	50 sheets
Paper Size	letter, executive, envelope (com-10, dl envelope, monarch), a4, a5, a6 photo 4"x6", 3.5"x5", 5"x7", 5"x8", manual by-pass: 3.5" x 5" to 11" x 17"
Printing Method	color
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
Print Resolution Mono	up to 4800 x 1200
Print Resolution Color	up to 4800 x 1200
Media Types	glossy paper, inkjet paper (coated paper), plain paper, recycled paper
Two-Sided Printing	no
Maximum Number of Pages Per Month	up to 30, 000
Reduction and Enlargement	yes
Photo Printing	yes
Scanner Type	flatbed
Scan Resolution	up to 2400 x 2400
Duplex Scan	yes
Copier Resolution Mono	up to 4800 x 1200
Copier Resolution Color	up to 4800 x 1200
Fax Function	yes
Cartridges	lc3019bk/c/m/y inkvestment super high-yield cartridges, lc3017bk/c/m/y inkvestment super high-yield cartridges
Number Of Cartridges	4
Number of Ink Tanks	0
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	apple airprint, brother iprint&scan, google cloud print, mopria print service, usb, wi-fi, wi-fi direct
OS Compatibility	windows vista, 7, 8, 8.1, 10 home, 10 pro, 10 education, 10 enterprise, os x v10.9.5, os x v10.10.x, os x v10.11.x, hard disk space for drivers and apps
Mobile Devices Connection	yes

Weight and Dimensions

Depth	12 inches
Height	12 inches
Width	20.9 inches
Net Weight	36.8 pounds
