104
ENGINE MANAGEMENT MODULE (EMM)
EMM DIAGNOSTICS
EMM DIAGNOSTICS
LED Indicators
The EMM has LED indicators located next to the
electrical connectors that provide information
related to various electrical circuits.
IMPORTANT: LED 1 is toward the rear of the
outboard (Closest to EMM J2 connector).
Starting Mode
“Starting mode” occurs from EMM power ON until
outboard is running for 2 seconds.
LED 1 – Stator signal 30 V or higher, “CHARG-
ING OKAY.” For NO LIGHT, investigate S.A.C.
circuit operation.
LED 2 – Crankshaft position sensor output, EMM
powered (ON), “CRANK POSITION OKAY.” For
NO LIGHT, investigate possible fault code 16.
LED 3 – Sensor circuits (5 V), “SENSORS
OKAY.” For NO LIGHT, investigate possible fault
codes: 12, 13, 24, 16, 41, 42, 44, 45, 46, 47, 48,
49, 67, 68, 69.
For FLASHING LIGHT ON, investigate code 57
(High RPM with low TPS setting)
LED 4 – Lanyard/Stop circuit not grounded, “LAN-
YARD/STOP OKAY.
For NO LIGHT, repair grounded stop circuit.
For FLASHING LIGHT ON, investigate possible
fault code 29 (engine shutdown, EMM overheat),
code 31 (engine shutdown, engine overheat) or
code 33 (engine shutdown, excessive no oil con-
dition).
Running Mode
LED 1 – Low charging output, “CHARGING
FAULT.” For LIGHT ON, investigate possible fault
codes:
Code 17 – system voltage (55 V) below range
Code 18 – system voltage (55 V) above range
Code 26 – low battery (12 V) voltage
Code 27 – high battery (12 V) voltage
Code 77 – S.A.C. overcurrent fault
LED 2 – Damaged injector circuit, ignition primary
circuit, or fuel pump circuit, “INJECTOR/IGNITION
FAULT.” For LIGHT ON, investigate possible fault
codes:
Code 51 – cylinder no. 1 injector circuit open
Code 52 – cylinder no. 2 injector circuit open
Code 53 – cylinder no. 3 injector circuit open
Code 54 – cylinder no. 4 injector circuit open
Code 55 – cylinder no. 5 injector circuit open
Code 56 – cylinder no. 6 injector circuit open
Code 61 – cylinder no. 1 injector circuit short
Code 62 – cylinder no. 2 injector circuit short
Code 63 – cylinder no. 3 injector circuit short
Code 64 – cylinder no. 4 injector circuit short
Code 65 – cylinder no. 5 injector circuit short
Code 66 – cylinder no. 6 injector circuit short
Code 81 – no. 1 ignition primary circuit open
Code 82 – no. 2 ignition primary circuit open
Code 83 – no. 3 ignition primary circuit open
Code 84 – no. 4 ignition primary circuit open
Code 85 – no. 5 ignition primary circuit open
Code 86 – no. 6 ignition primary circuit open
Code 91 – fuel pump circuit open
Code 94 – fuel pump circuit short
LED 3 – Sensor circuits (5 V), “SENSOR FAULT.”
For LIGHT ON, investigate possible fault codes:
Code 12 – TPS circuit fault
Code 13 – TPS below expected range
Code 14 – TPS above expected range
Code 16 – CPS, intermittent loss of sync
Code 28 – shift switch malfunction
Code 41 – PORT temp. sensor circuit fault
Code 42 – PORT temp. below expected range
Code 44 – BP sensor circuit fault

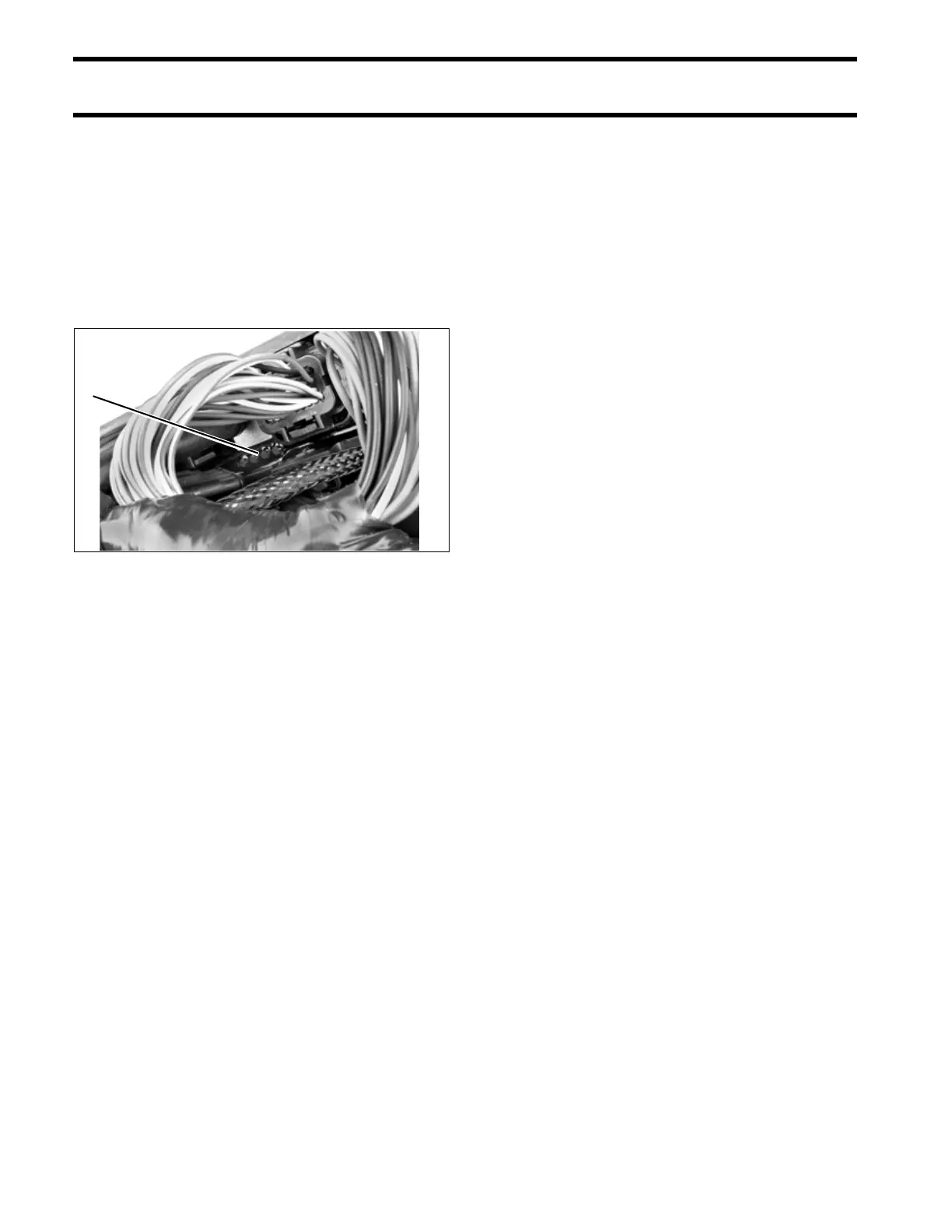

1. LED indicators 005239
1
