MAINTENANCE
LUBRICATION
Swivel Bracket and Trailering
Bracket
Lubricate the swivel bracket with Triple-Guard
grease.
Apply grease until the grease begins to flow from
the upper or lower swivel bracket areas.
Coat the pivot points of the trailering bracket with
Triple-Guard grease.
Tilt Tube
Lubricate the tilt tube grease fittings with Triple-
Guard grease.
Throttle and Shift Linkage
Disconnect the battery cables at the battery.
Remove cable trunnion cover. Carefully, remove
throttle and shift cables from trunnion block.
IMPORTANT: DO NOT disturb cable trunnion
adjustments.
Shift remote control into FULL THROTTLE/
REVERSE position to fully extend the plastic cas-
ing guides.
Apply Triple-Guard grease to:
• Pivot and slide area of the shift interrupt switch
bracket
• Cable attachment pins of both the throttle and
shift levers
• Brass inner casings of both the throttle and shift
cables
Shift the remote control to the NEUTRAL/IDLE
position.
Install control cables in trunnion block(s) and
install trunnion cover(s) and screw(s) securely.
Check proper throttle and shift function.

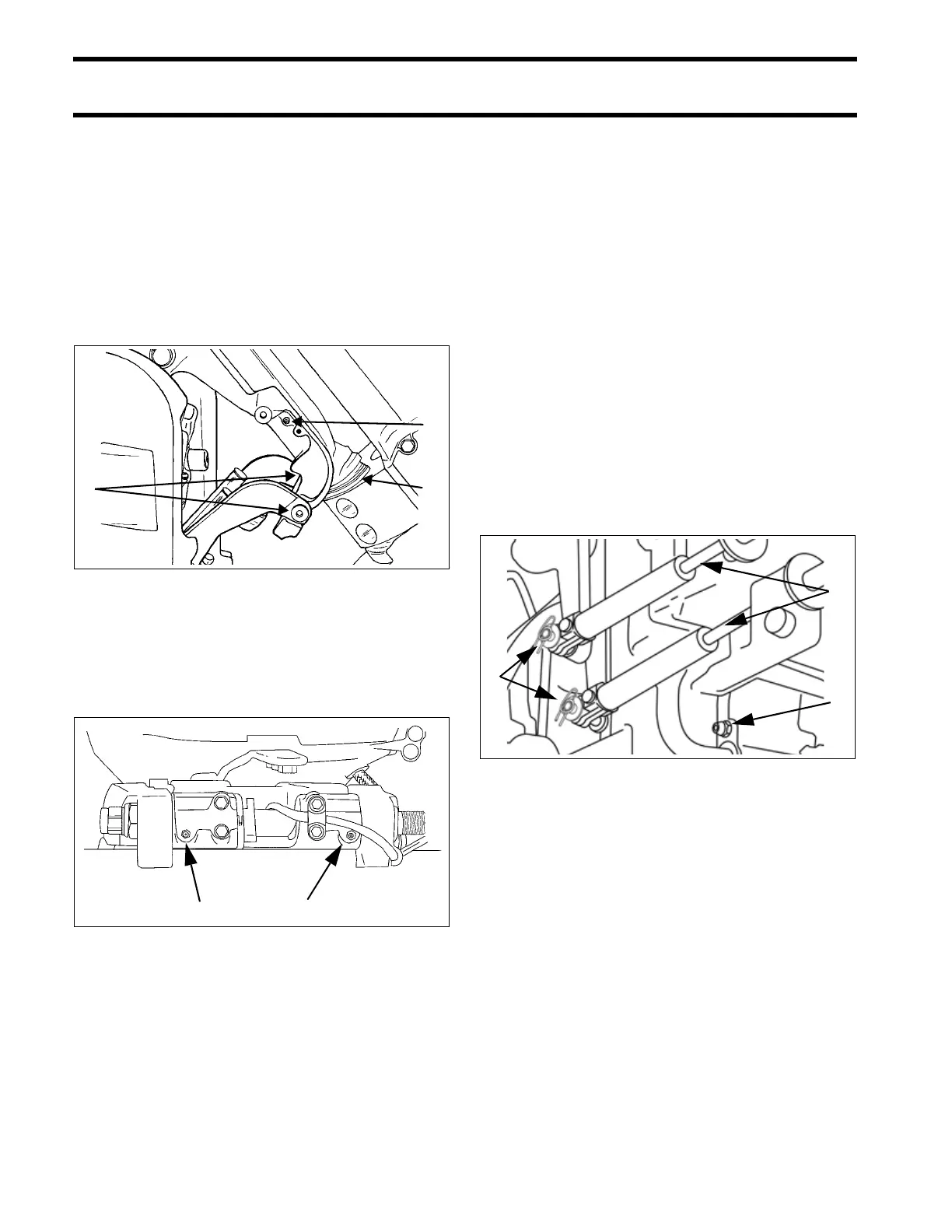

1. Grease fitting
2. Pivot points
3. Lower swivel bracket area
DR5073
1. Tilt tube fittings DR38798
1
32
1 1
1. Attachment pins, throttle and shift cables
2. Shift shaft grease fitting
3. Brass inner casings, throttle and shift cables
DRC6500R
3
2
1
