193
FUEL SYSTEM
FUEL COMPONENT SERVICING
7
Fuel Injectors
Mark fuel injector(s) to indicate cylinder loca-
tion(s).
IMPORTANT: Fuel injector(s) must be installed
in the correct cylinder location(s). Use the
Evinrude Diagnostics Software program to con-
firm that the EMM programming matches injector
positioning by cylinder location. The injector infor-
mation screen of the diagnostic program displays
injector serial numbers.
Use caution when handling fuel injectors. Prevent
dirt and debris from entering fuel inlet and outlet
ports of injectors or fuel tubes. Cover the injector
nozzle port in cylinder head to prevent contamina-
tion of combustion chamber.
Removal
Disconnect the battery cables at the battery.
Relieve fuel system pressure. Refer to Relieving
Fuel System Pressure on p. 189.
Remove fuel manifolds. Refer to Fuel Manifolds
on p. 192.
Disconnect the fuel injector/coil electrical connec-
tor.
IMPORTANT: To remove ignition coil lead from
injector connector, refer to CONNECTOR SER-
VICING on p. 168.
Remove injector screws.
Remove fuel injector and insulator.

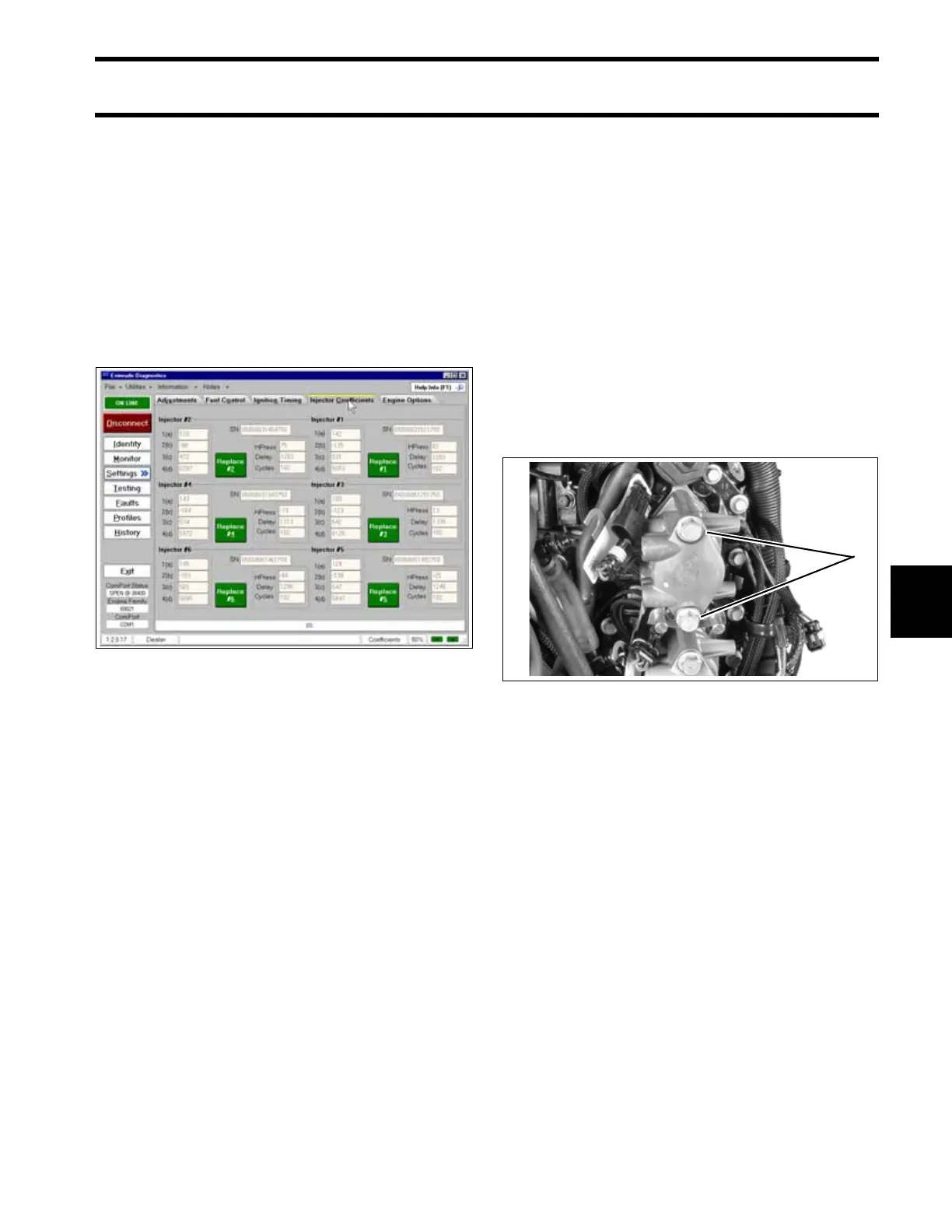

Injector Coefficients Screen 005142
1. Injector screws 005338
1
