BRP Evinrude E-Tec E115DPLSUC User Manual

162
ELECTRICAL AND IGNITION
ELECTRIC STARTER SERVICING

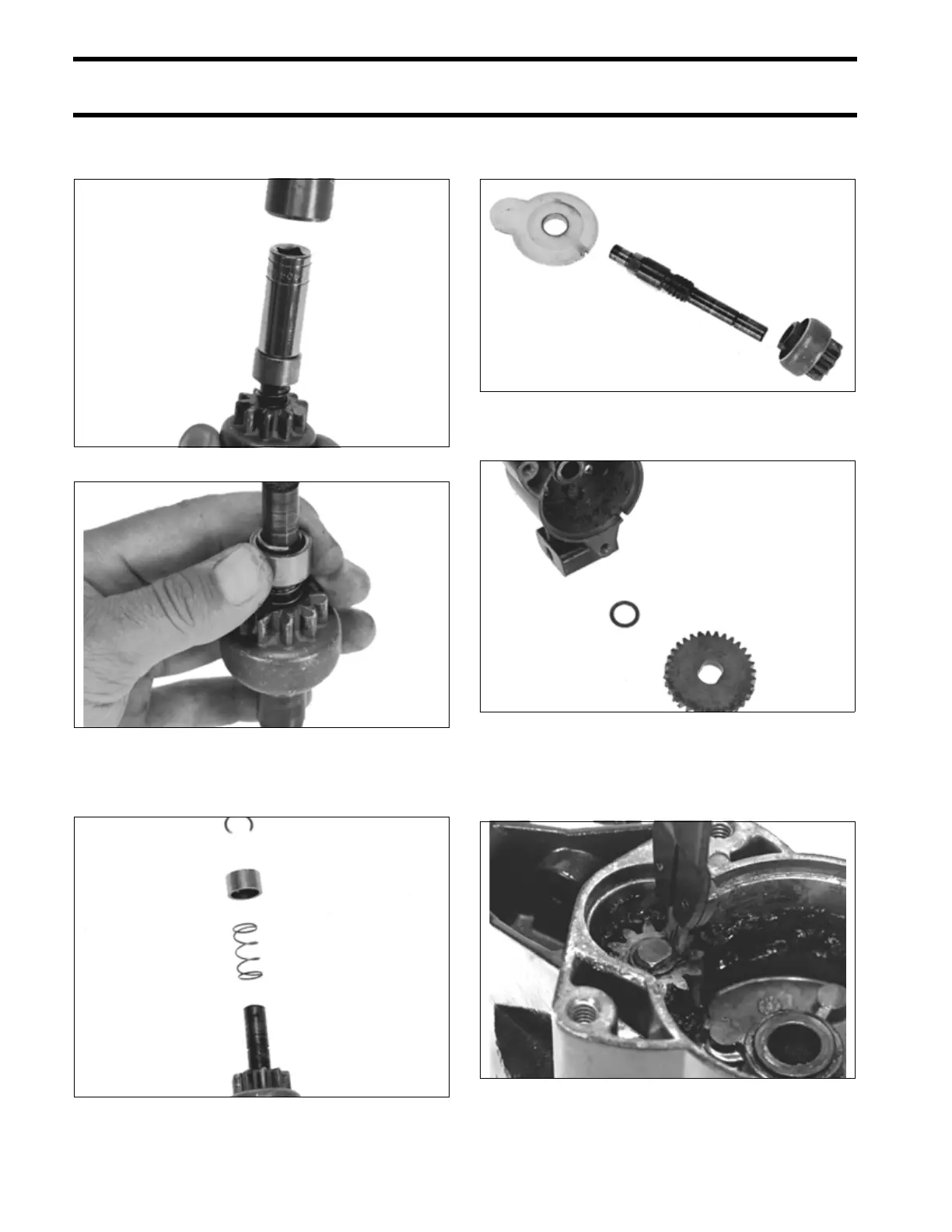

Hit the socket with a mallet to lower the spacer
and expose the retaining ring under the spacer.
Remove the retaining ring, spacer, and spring
from pinion shaft.
Remove pinion and plastic weather cover from
pinion shaft.
Remove the driven gear and thrust washer.
Using No. 2 external retaining ring pliers, remove
the retaining ring and drive gear from the armature
shaft.
30371
30360
30369
30368
30367
30366
