BRP Evinrude E-Tec E115DPLSUC User Manual

169
ELECTRICAL AND IGNITION
CONNECTOR SERVICING
6

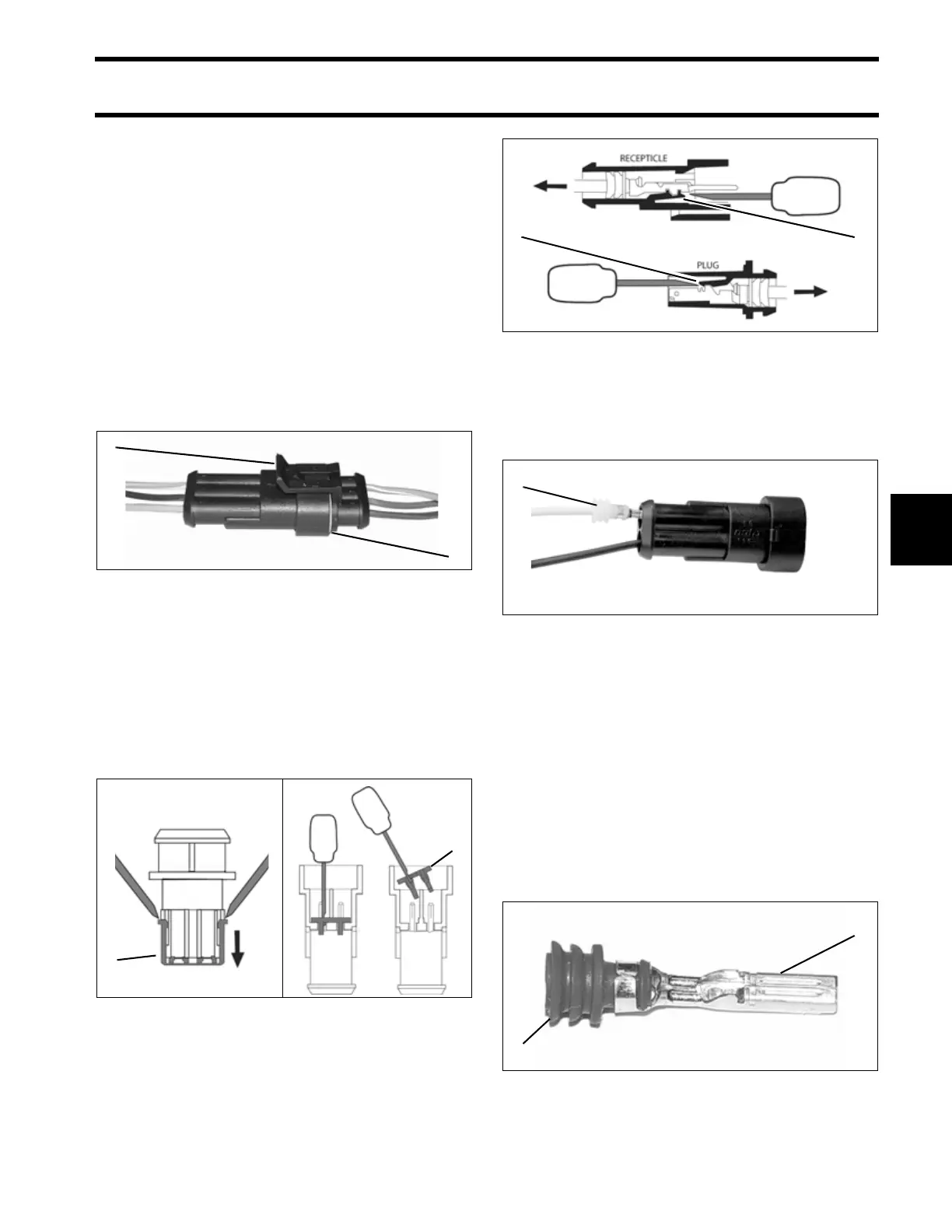

AMP Connectors
IMPORTANT: Always use the appropriate meter
test probes and adapters when testing compo-
nents fitted with these terminals. Electrical grease
is NOT used on AMP connectors.
SUPERSEAL
†
1.5
Disconnect
Lift latch. Pull connectors apart.
Connect
Confirm the seal is in place. Push connectors
together until latched.
Terminal Removal
Use Secondary Lock Tool, P/N 777078, to release
anti-backout device of connector housing. Next,
use Primary Lock Tool, P/N 777077, to release
locking tab of connector housing. Release locking
tab and pull on wire to remove from connector
housing.
Terminal Installation
Align terminal with connector housing. Push con-
nector and seal into housing until seated.
Align anti-backout device with connector housing
and terminals. Use Secondary Lock Installer,
P/N 777079, to seat device in connector.
Crimping Terminals
Crimping Superseal 1.5 terminals requires the
PRO-CRIMPER II
†
with a specific crimping die
set.
The PRO-CRIMPER II hand tool assembly,
P/N 58583-1, comes with die assembly
P/N 58583-2.
1. Latch
2. Seal
002448
1. Anti backout device, plug
2. Anti backout device, receptacle
002449
002450
2
1
2
1
1. Locking tab, plug
2. Locking tab, receptacle
002447
1. Terminal and seal 002451
1. Terminal
2. Seal
002452
21
1
1
2
