POWERHEAD
INSTALLATION

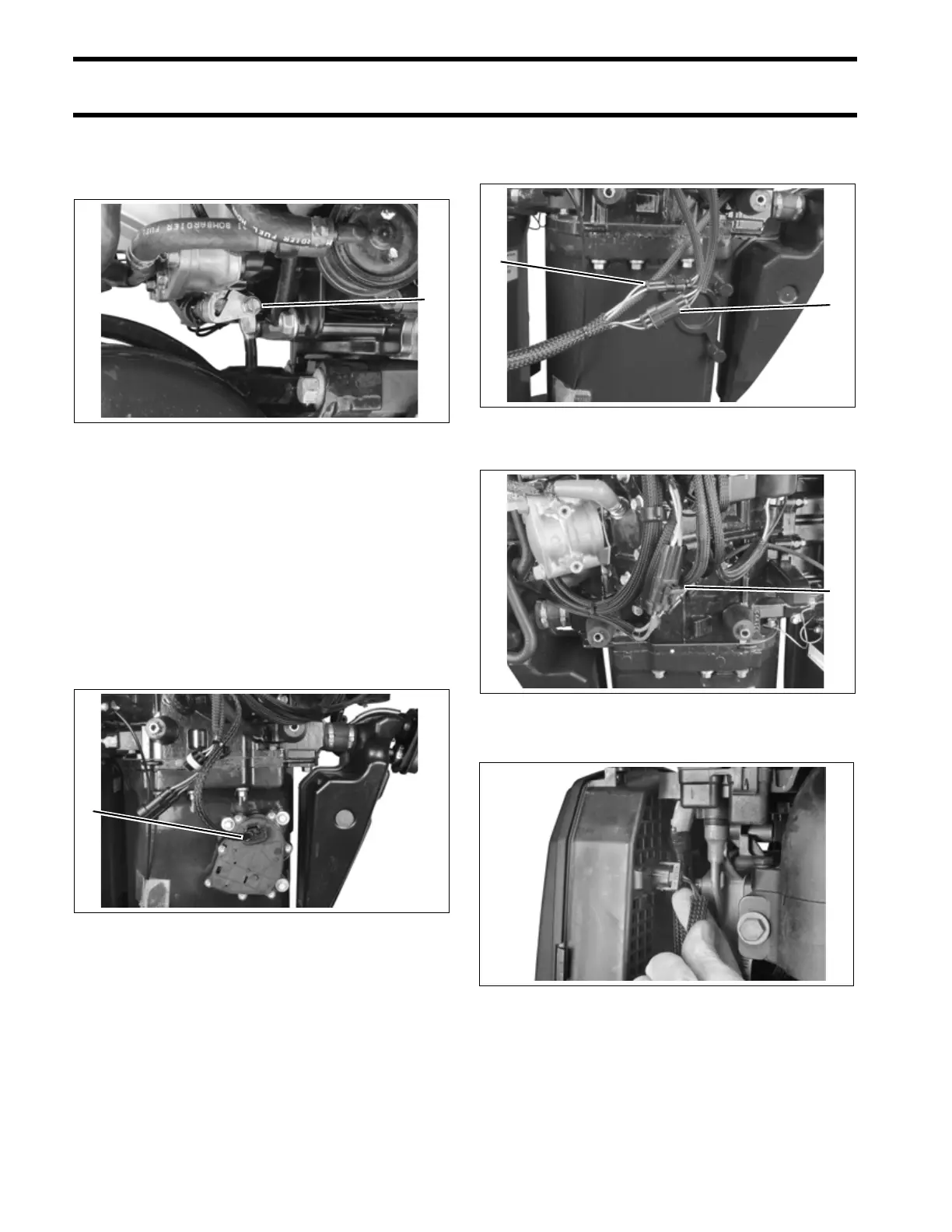

Position the shift rod in the shift rod lever. Install
the retaining screw and washer. Torque screw to
60 to 84 in. lbs. (7 to 9.5 N·m).
IMPORTANT: Confirm that gearcase shifts sol-
idly into both forward and reverse and that propel-
ler shaft spins freely in neutral.
V4 MODELS
Fill exhaust valve actuator electrical connector
with Electrical Grease and install on actuator.
IMPORTANT: Leave enough slack in harness
so that lower cover will not pull it away from actua-
tor.
ALL MODELS
Connect the power trim connectors.
Install air silencer and air temperature sensor.
