MAINTENANCE MANUAL LINE
1
AE 2_0090
2
1
2
2
2

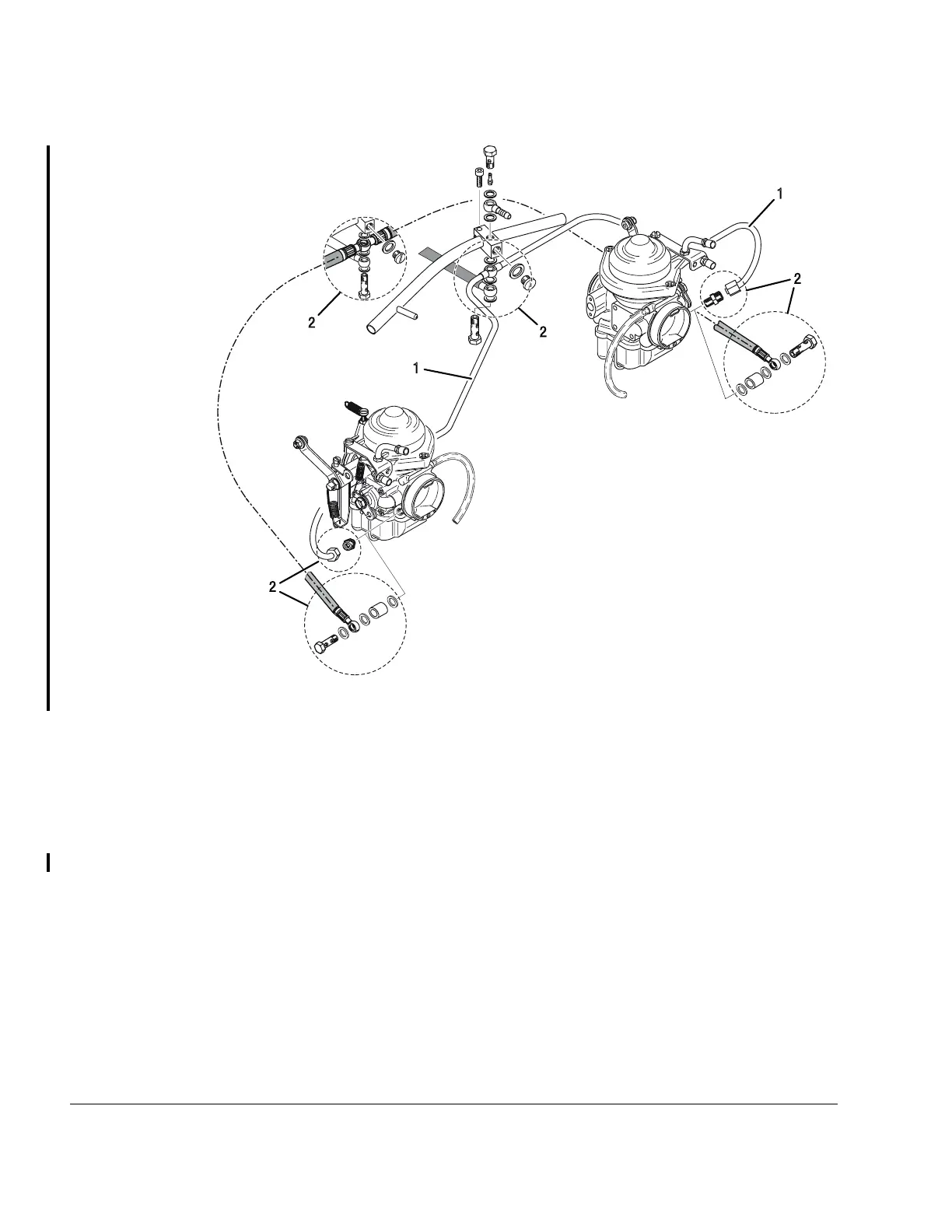

Figure 7.1: Connections and fuel lines
1
Fuel lines (steel)
2
Connections (fittings)
Fuel pump Inspect fuel pump and isolating flange for leaks. For a period of 1 minute after shut down
the engine must not drip oil out of the venting tube, In case of uncertainty determine the oil
amount. An oil leak is when after 20 min engine run more than 0.5 ml of oil loss is
detected.
Oil hoses Inspect all oil feed hoses from the oil tank to the oil cooler and to the engine. Also inspect
the oil return hose from the crankcase to the oil tank. Check the pressure oil hose from the
oil pump to the governor flange of the governor.
12–20–00
Page 6
January 01 2020
Effectivity: 912 Series
Rev. 0
