CHECKING THE V-BELT TENSION
General note In the case of configurations with additional auxiliary generator, inspect attachment and V-
belt tension.
Checking the V-
belt tension

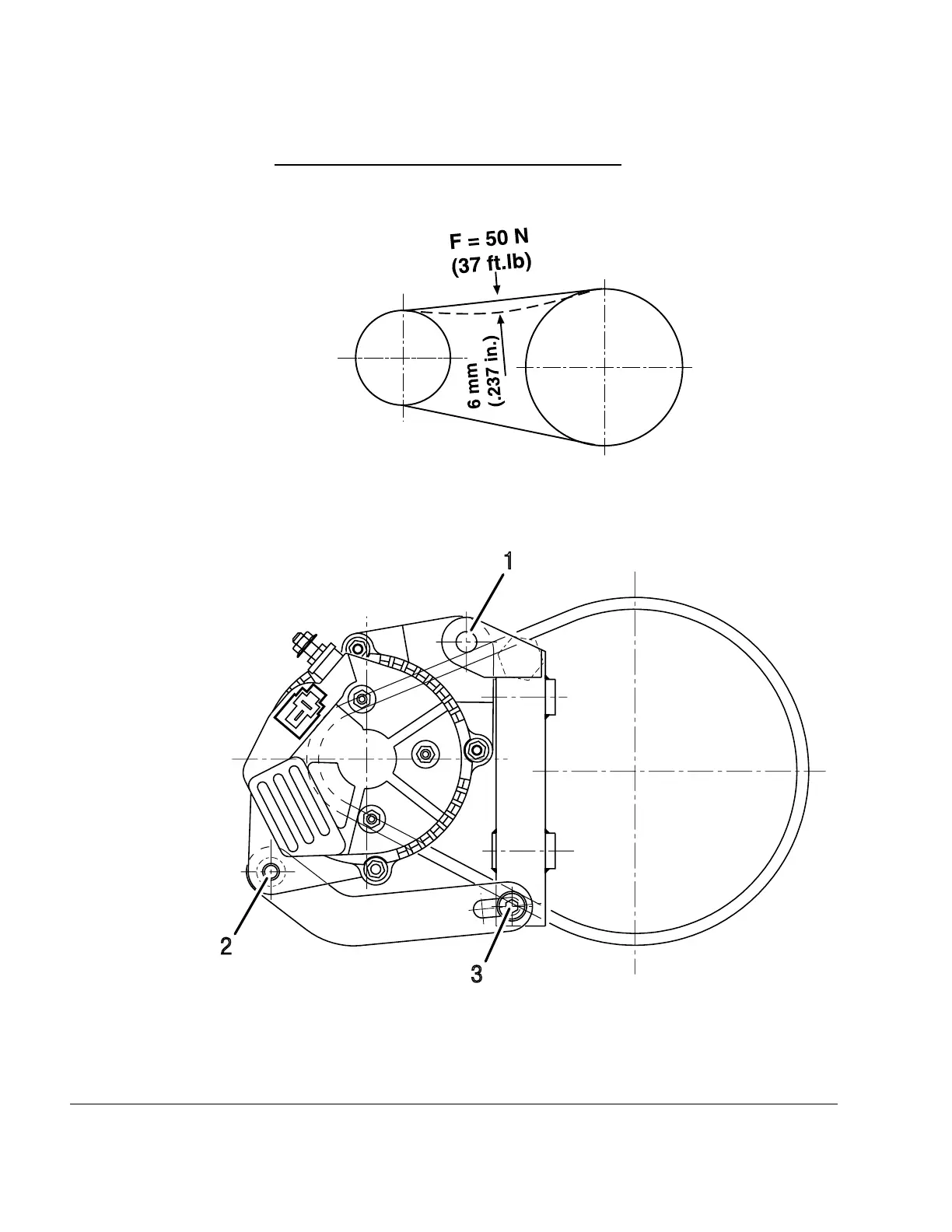

Figure 7.6: Checking the V-belt tension
BELT TENSION ADJUSTMENT
00353
2
1
3
Figure 7.7: Overview
1 Hex. screw M10
2, 3
Allen screw M8
12–20–00
Page 14
January 01 2020
Effectivity: 912 Series
