BRP ROTAX 912 Series User Manual

BRP-Rotax
MAINTENANCE MANUAL LINE
6
1
2
7
5
4
3

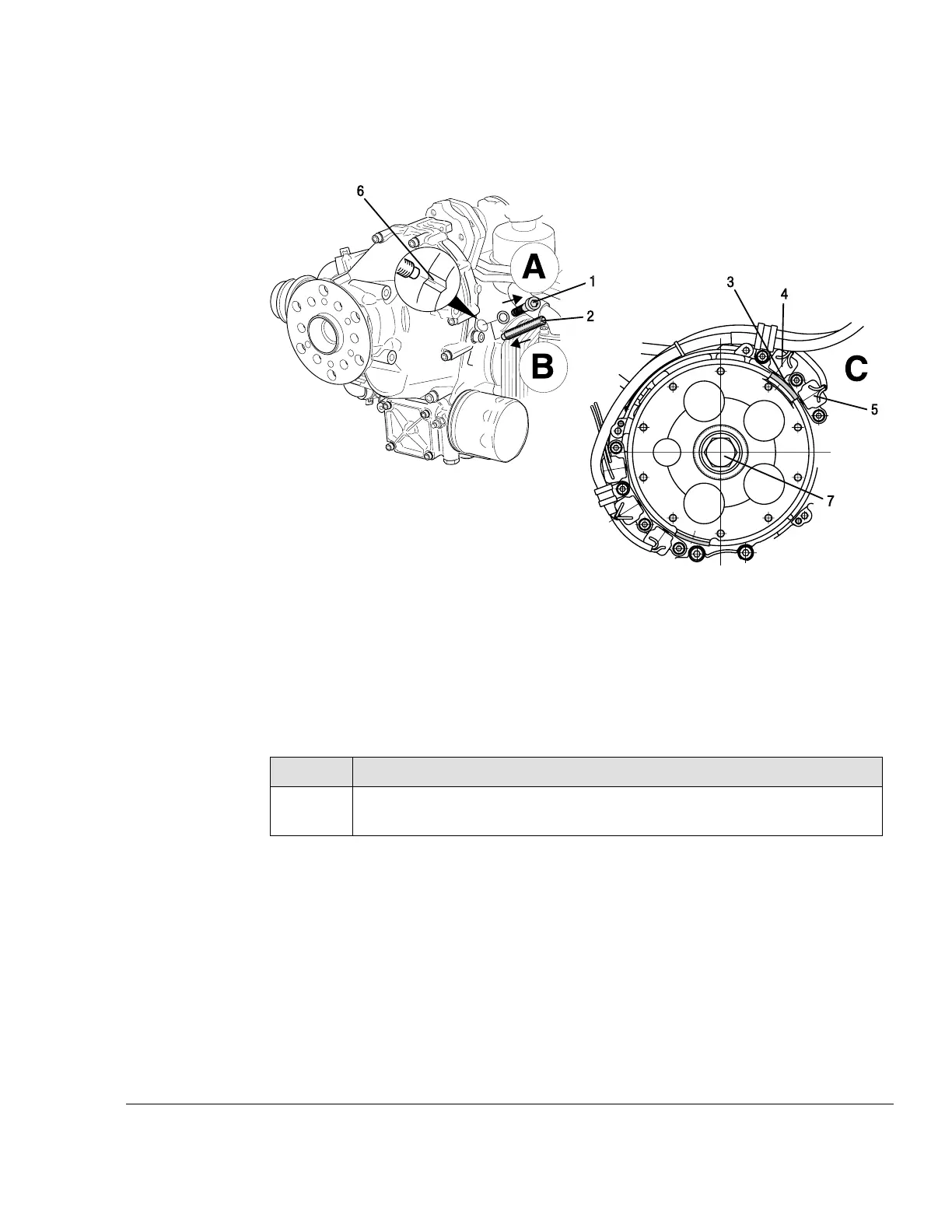

Figure 7.5: Locking/Loosen of the crankshaft.
1 Allen screw M8x20 2 Thread bolt
3
Trigger boss
4,5
Trigger coils
6 Crankshaft 7 Hex.screw M16x1.5x40
Loosen of the
crankshaft
After completion of work/check:
Step
Procedure
1
Remove the thread bolt (2) and refit crankshaft Allen screw M8x20 (1) along
with a new sealing ring with a dry torque of 15 Nm (133 in.lb).
Effectivity: 912 Series
Rev. 0
12–20–00
Page 11
January 01 2020
