MAINTENANCE MANUAL LINE
Step
Procedure
4 Equal adjustment must be made on both carburetors.
5
Any major adjustments required necessitate replaced verification of all pa-
rameters mentioned in this procedure.
Assembly
ATTENTION
Obey the manufacturers instructions!
• Install compensation tube assy. on engine in reverse sequence of removal. Any minor
differences in balance at idle speed will be compensated for.
• Refit the screw plug M3.5 (3) and hex. screws M6x6 with gasket.
X
AE_912_0084
2
4
3
5
1
7
8
6

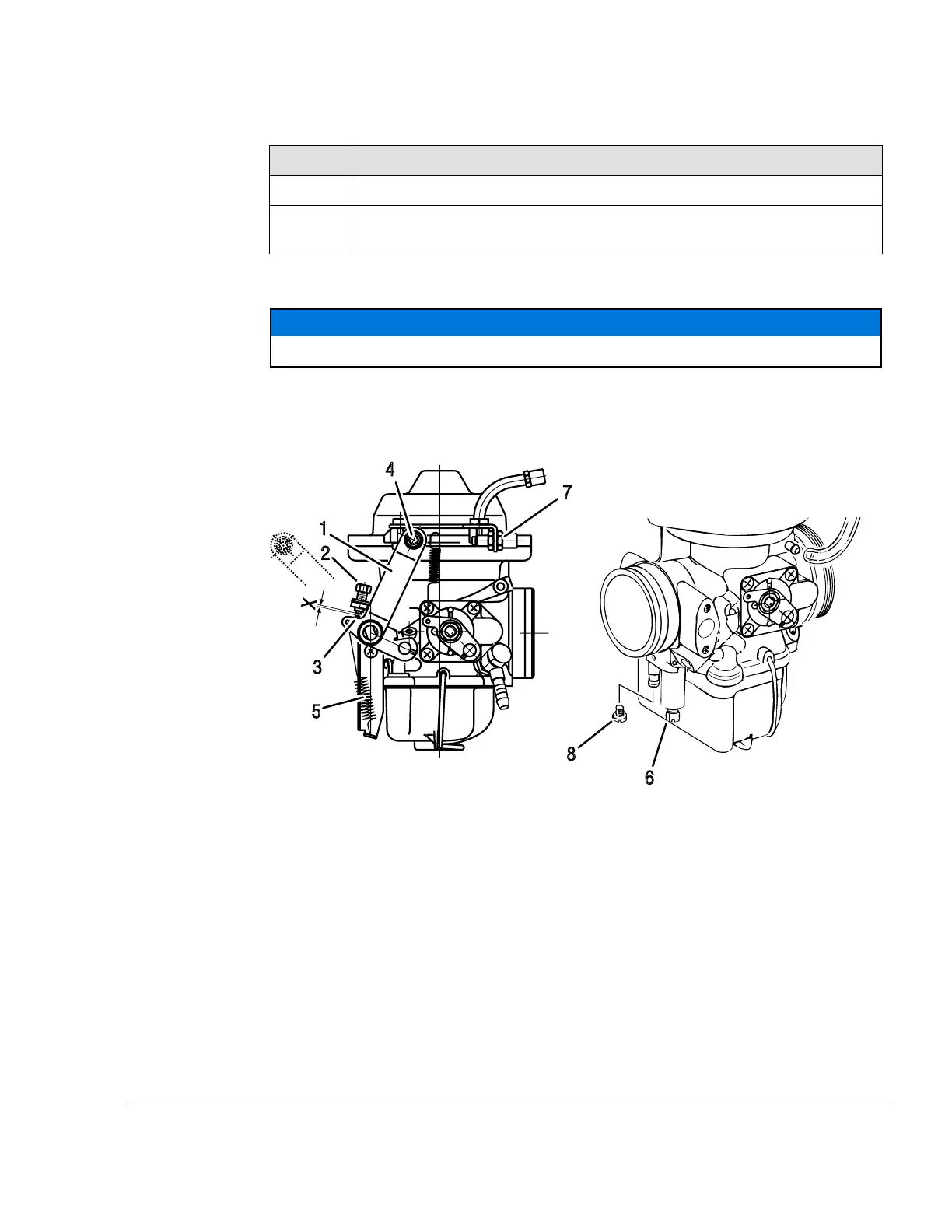

Figure 7.21: Inspect operating range/idle speed
1 Throttle valve lever 2
Adjustment screw
3
Idle stop position
4 Cable fixation
5
Return spring
6 Idle mixture screw
7
Idle adjustment
8
Plug screw M3.5x5
Effectivity: 912 Series
Rev. 0
12–20–00
Page 33
January 01 2020
