BRP ROTAX 912 Series - Page 148

BRP-Rotax
MAINTENANCE MANUAL LINE
AE_912_0092
2
4
3
5
1

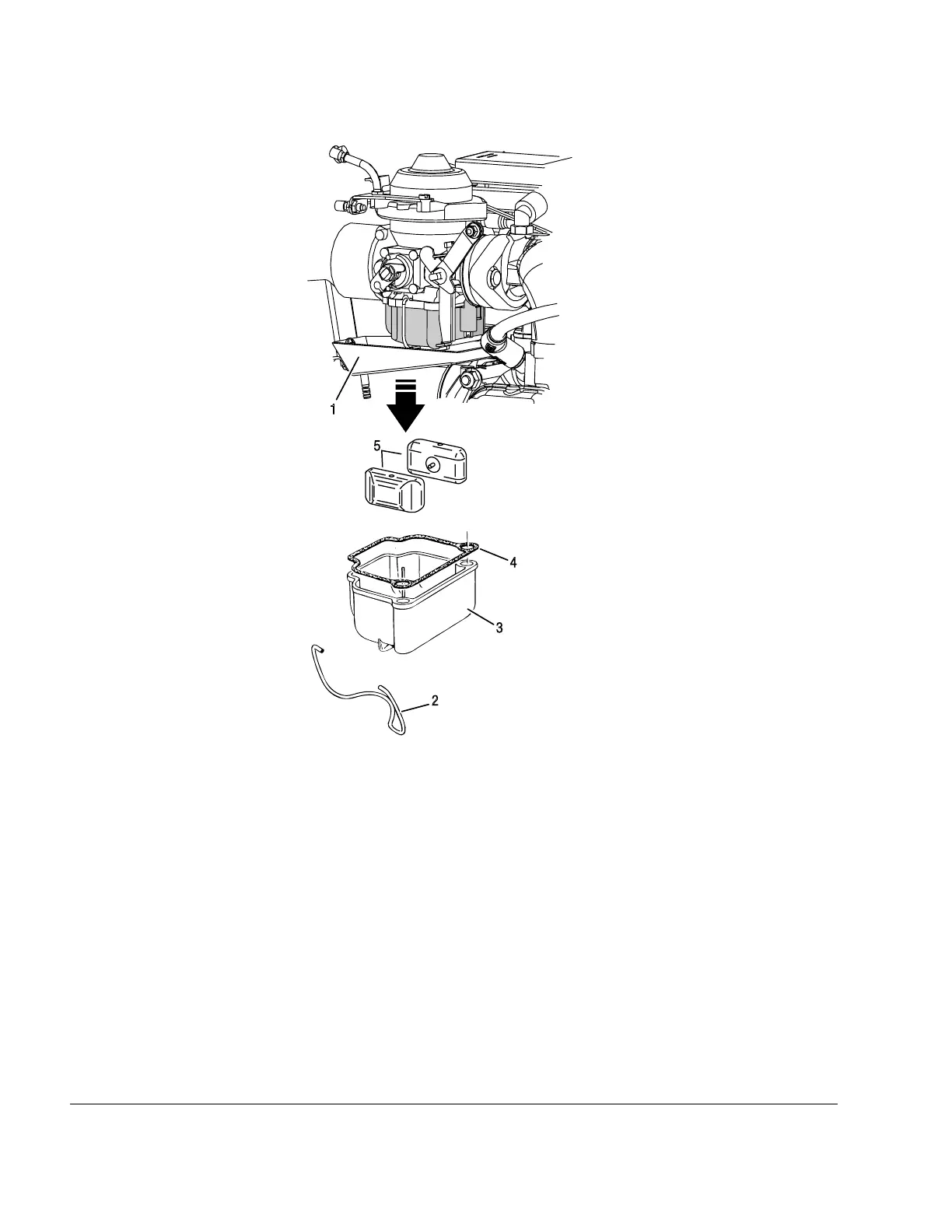

Figure 7.22: Float chamber
1
Drip tray
2
Spring clip
3 Float chamber 4 Gasket
5 Float
12–20–00
Page 36
January 01 2020
Effectivity: 912 Series
Rev. 0
