PULSE Multi-analyzer System Type 3560-B/C/D/E – Installation and IDAe Hardware64
5.4.2 Power Supply
Data Acquisition System Type 3560-E must be powered from an external 10 – 32 V DC
power supply. This power may be obtained from, for example, a car battery, or it may be
powered using the 100 – 240 V AC Mains to DC supply ZG-0434 that is provided with
Type 3560-E. See section 5.5.

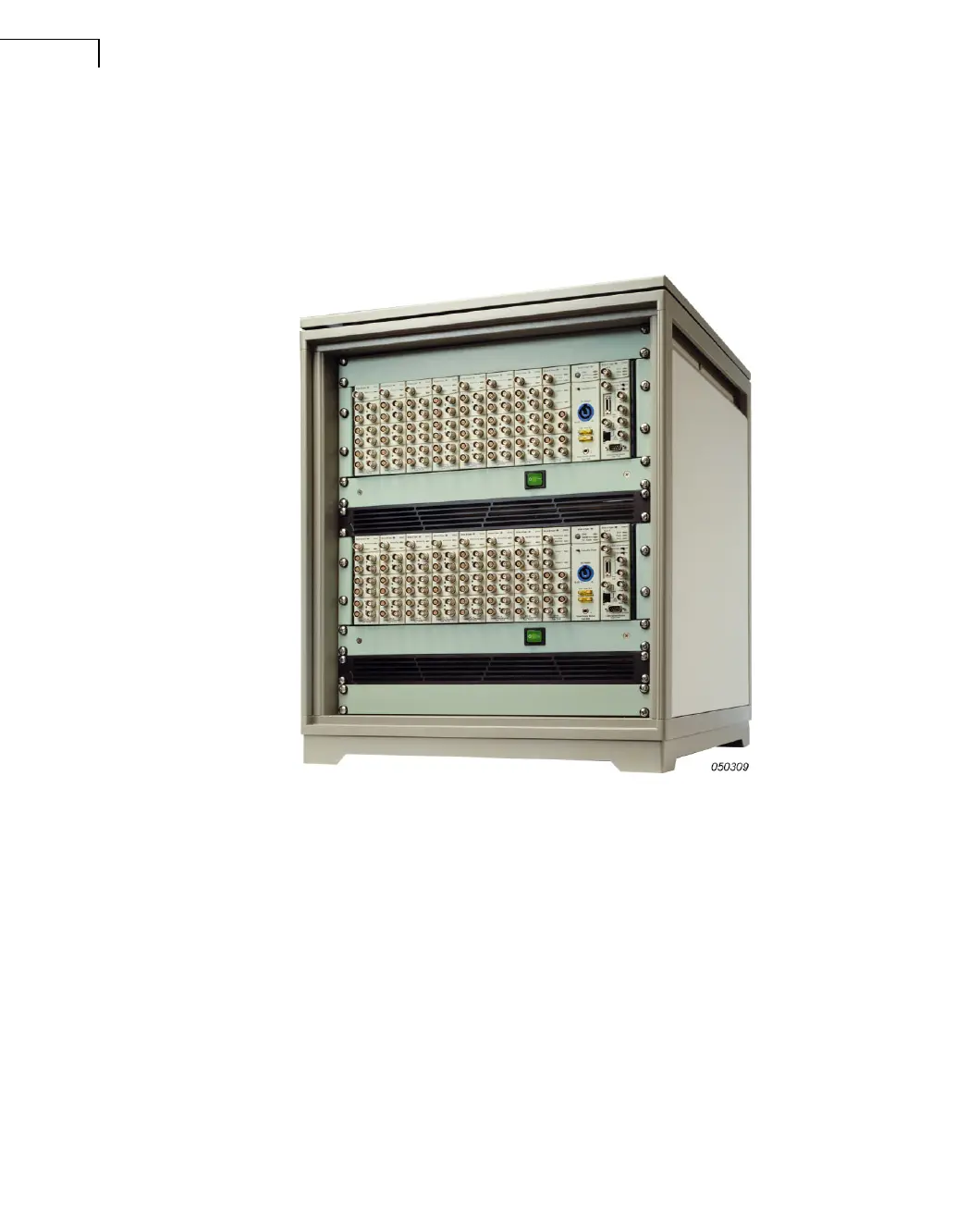

Fig.5.10
When using more than
one frame, Air Guide
EA-0540 is mounted
beneath the frames
