PULSE Multi-analyzer System Type 3560-B/C/D/E – Installation and IDAe Hardware16
2.7 PULSE Hardware Setup
2.7.1 Connection of Synchronization Cables
When using multiple frames (more than one Type 3560 unit), the frames must be synchronized.
The frames you have included in your multi-frame system may cause restrictions to the type
of synchronization that can be used in the front-end. The restrictions are as shown in Table 2.1.
Table 2.1 Restrictions to synchronization of a multi-frame front-end
Based on the above restrictions, you can choose the type of synchronization to use. Then
you must choose a master frame – this is the source of the synchronization signals.
AES/EBU and Types 7536, 7537, 7538, 7539 and 7540
The AES/EBU synchronization method uses 50 Ω termination (JP-0069) at both ends.

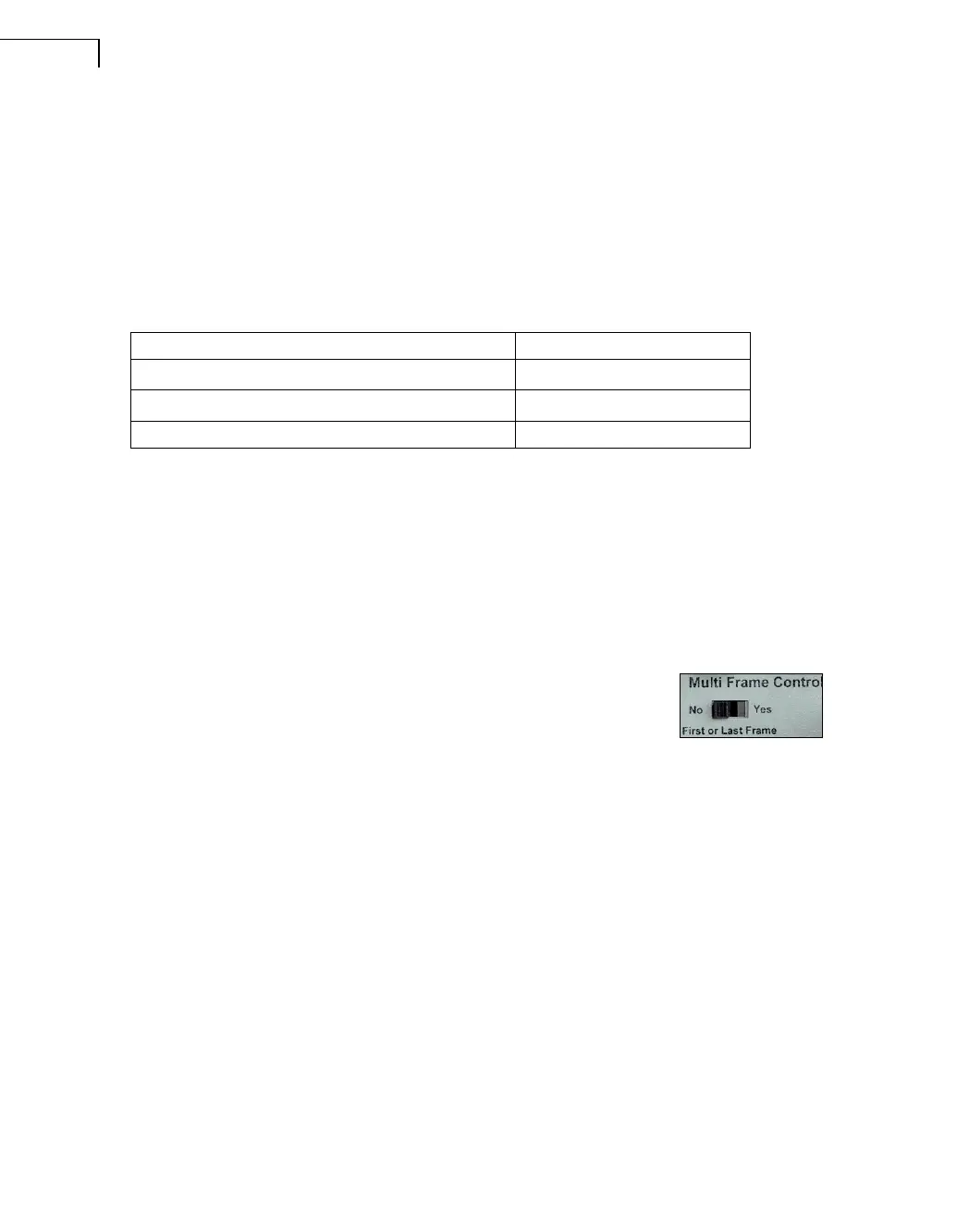

Types 7536, 7537, 7538, 7539 and 7540 have a built-in 50 Ω termination. The switch ‘First
or Last Frame’ enables the termination in position ‘Yes’ and disables it in position ‘No’.
Set the switch to ‘Yes’ on the first and last frame and connect the
frames via the Multi Frame Control connectors using AO-0087 or
similar standard RG 58 cables (BNC). On the middle frames use
T-connection JJ-0052.
Controller (LAN Interface) Module Synchronization Restrictions
Type 7533, hardware version under 14.02
IDA BNT
a
only
a. See Appendix A for information on these options when using Type 7533
Type 7533, hardware version 14.02 or higher
Either IDA BNT
a
or AES/EBU
a
Types 7536, 7537, 7538, 7539, 7540, 3560-B AES/EBU only
