PULSE Multi-analyzer System Type 3560-B/C/D/E – Installation and IDAe Hardware78
6.7 6/1-ch. Input/Output Modules Types 3032-A, 3032-B

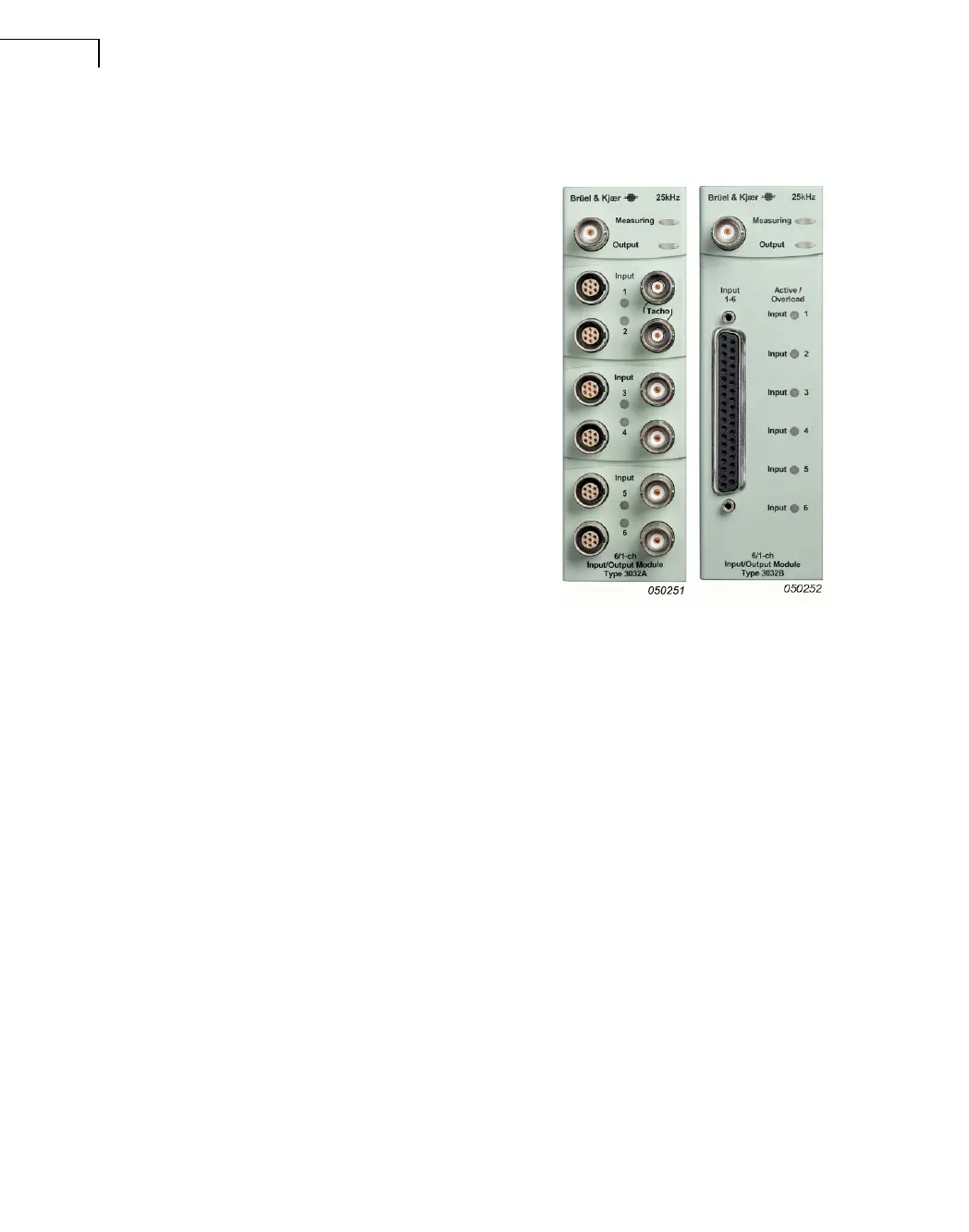

This module has two versions: Type 3032-A with
LEMO and BNT/BNC connectors on the input channels
and Type 3032-B with a 37-pin D-sub connector. For
input of signals in seven ranges from 7.071 mV to
7.071 V
peak
in 10 dB steps over the frequency range
to 25.6 kHz.
6.7.1 Common Features
Output
BNC connector (see Fig.7.5 on page 90) for output
of a high-quality sine tone in the frequency range
0.1 Hz to 25.6 kHz. The maximum output voltage is
5V
rms
delivered in one output range through a 24-bit
D/A converter. Output may be grounded or floating,
controlled by PULSE software.
LEDs
Measuring: Indicates a measurement in progress or
the downloading of software to the module.
Output: Indicates the presence of a signal on the output connector.
Input 1 to 6: Indicates the status of the input (activated: green; overload: red). See section 7.8.
6.7.2 Type 3032-A
Note: The LEMO and BNT/BNC connectors of each channel are connected in parallel. You
should therefore only connect one transducer to each pair of connectors at any one time.
All inputs: 7-pin LEMO connectors (see Fig.7.6 on page 90) for use with Brüel & Kjær
microphones.
Inputs 1 and 2: BNT connector (see Fig.7.3 on page 89) for direct connection of a voltage
signal or for connection of CCLD transducers. The connectors also provide power for tacho
probes.
Inputs 3 to 6: BNC connectors (see Fig.7.4 on page 89) for direct connection of a voltage
signal or for connection of CCLD transducers, for example, DeltaTron
®
accelerometers or
microphone preamplifiers.
The module can provide polarization voltage to all channels simultaneously and supports
IEEE 1451.4 capable transducers with TEDS. Input may be grounded or floating, controlled
by PULSE software.
Not available for sale 2005
