CHAPTER 2
Installation and Configuration
17
2.7.2 Setting Up the System
To start setup and configuration, click Start, Programs, PULSE, PULSE Front-end Setup.
The setup program works with named configurations of front-ends/frames. Each configuration
contains information about the type of front-end, the PC and front-end IP addresses, and the
synchronization of front-ends (when the front-end consists of multiple frames).
Note: The setup program executes each step in the configuration when Next is clicked
at the bottom of a page. This means that if you go Back, the changes have already been
made!

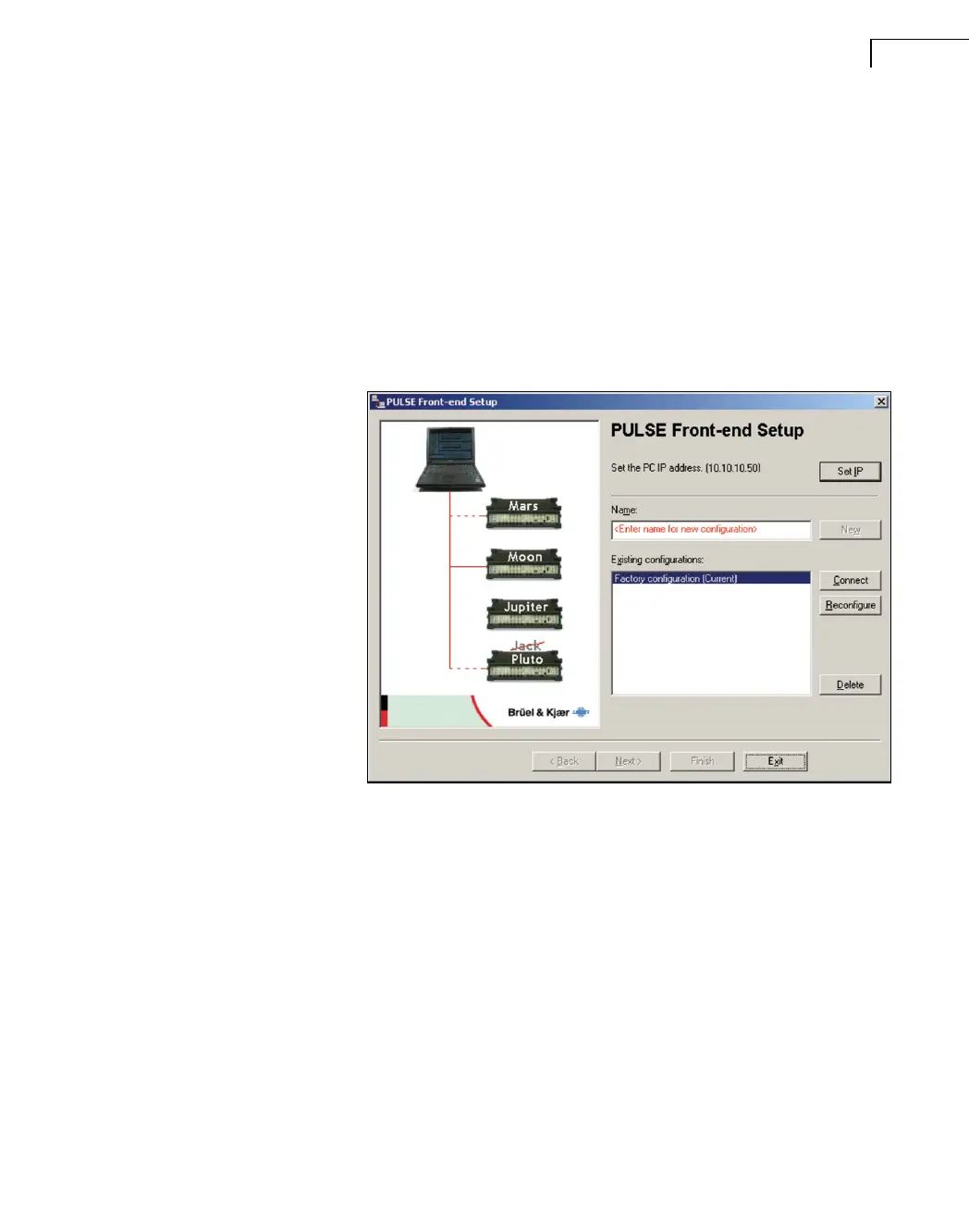

The setup program starts with Fig.2.6:
Fig.2.6
First-time PULSE
installation
The ‘Factory configuration’ listed is the pre-installed factory defaults described above (see
section 2.7.1). Before a first-time configuration begins, you should know what type of net-
work connection is required (see section 2.3.1) in order to decide whether the default ‘Fac-
tory configuration’ should be accepted, or whether alterations should be made.
On the PULSE Front-end Setup page there are 5 operations that can be performed:
• Set the IP address for the PC
• Define a new configuration
• Reconfigure an existing configuration
• Delete an existing configuration
• Connect to an existing configuration
