1.5 Functional description

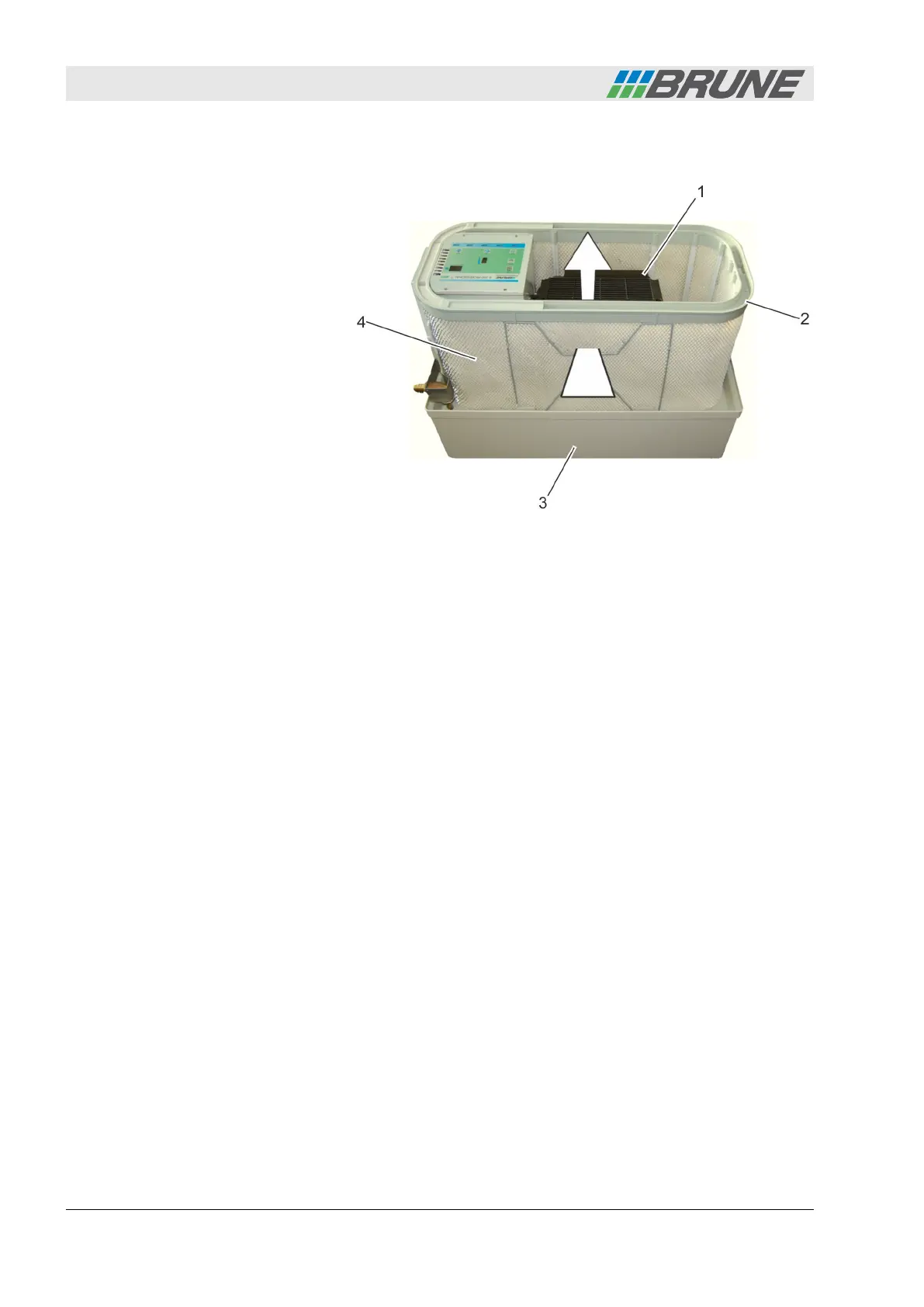

Fig. 6: Functional principle
The humidifier B500 operates based on the natural principle of
evaporation. A water pump continuously delivers water from the
water tank (Fig. 6/3) to the oval water channel (Fig. 6/2). The water
seeps through the drainage holes inside the channel and moistens
the evaporation filter (Fig. 6/4).
A fan (Fig. 6/1) inside the humidifier suctions the air in. The air
flows through the evaporator filter and is cleaned and humidified at
the same time. Then the humidified air is supplied through the air
outlet opening on the top and back into the room (Fig. 6/arrow).
The humidifier is filled manually via the filling opening at the top
face. The device can also be optionally connected to the local
water supply. In this case, the humidifier is automatically filled; no
manual filling is required (
Ä
Chapter 8 “Accessories”
on page 59).
