3. Remove the plastic sleeves over the retaining lugs of the
clamping bracket (Fig. 62/1).
4. Remove the old activated charcoal cleaning filter (Fig. 62/2).
5. Hook the new activated charcoal cleaning filter on the
retaining lugs. When doing so, observe the following:
n The filter must not be kinked or bent sharply.
n The flat side of the filter is pointing towards the device.
n Ensure that the retaining lugs of the filter are at the same
distance from each other as the holes of the filter. If
required, adjust the width of the filter bracket by carefully
bending.
6. Reattach the plastic sleeves.
7. Replace the cover of the humidifier.
8.5 Air hood with flexible air hose
Order numbers:
– Hood B 500, white: 1755.1
– Hood B 500, gray: 1755.2
– Hood B 500, anthracite: 1755.4
The air hose is not within the scope of delivery.
The air hood (Fig. 63/1) is used to direct the humidified air to a
specific point. The air hood is placed on the air outlet opening.
Then, an aluminum air hose is pushed over the hood and turned in
the direction of the desired airflow. This accessory can be used
anywhere the humidified air is to be directed into critical areas.
n Height of hood: 270 mm (10.6 inches)
n Diameter: 150 mm (5.9 inches)
n Total height with air hose: 570 mm (22.4 inches)
8.6 UV degermination system and lime transforming cartridge
Order numbers:
– UV lamp: 1721
– Lime transforming cartridge: 1725

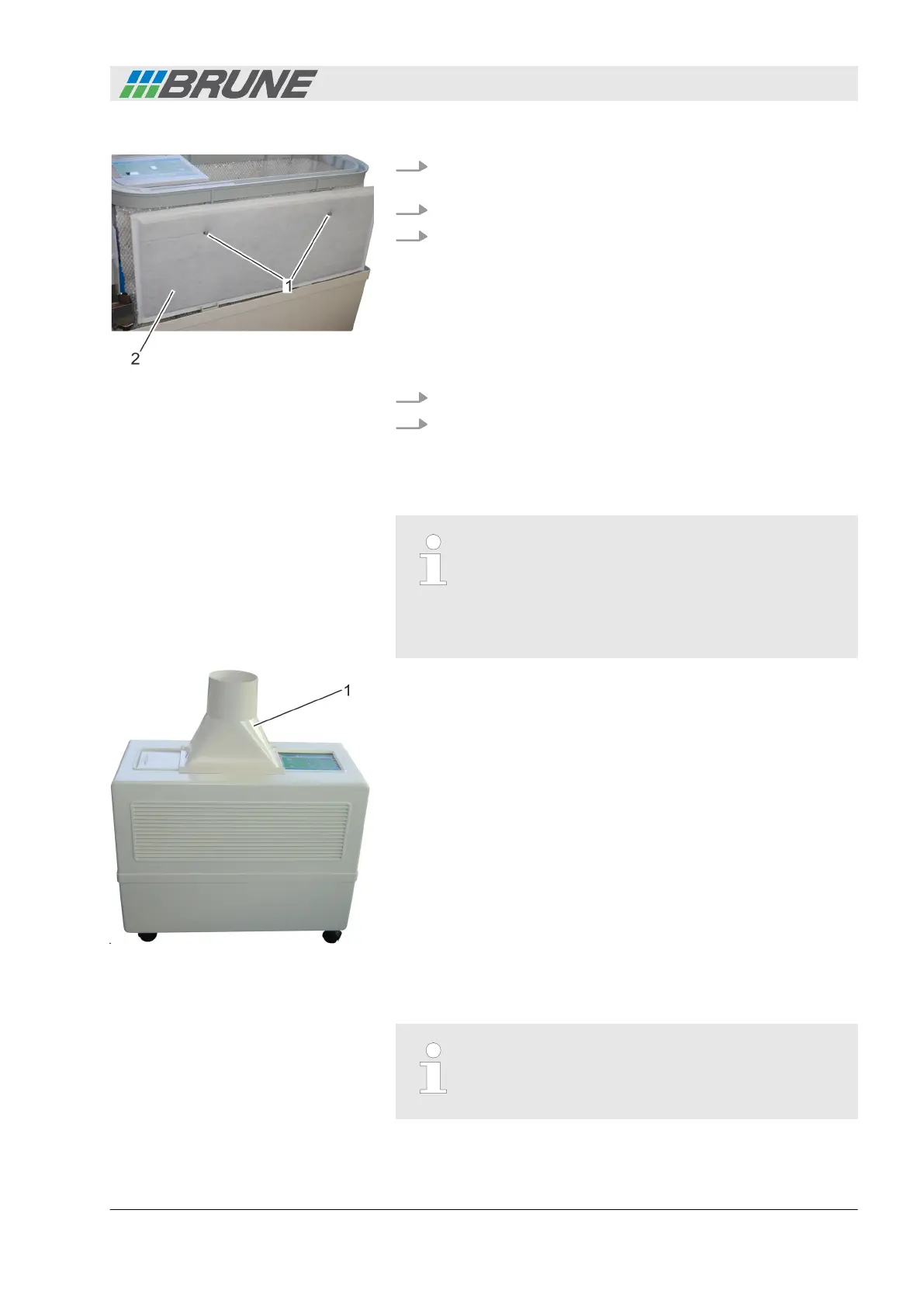

Fig. 62: Removing the plastic sleeves
Fig. 63: Air hood
Mercury vapor
Accessories
Evaporation Humidifier B500 Professional 65
