SMART MATRIX ↔ SM-DIN ↔ IS3W/MTC Connection
SMART MATRIX MTC 1 - 2
SMART MATRIX ↔ SM-DIN ↔ IS3W/MTC Connection

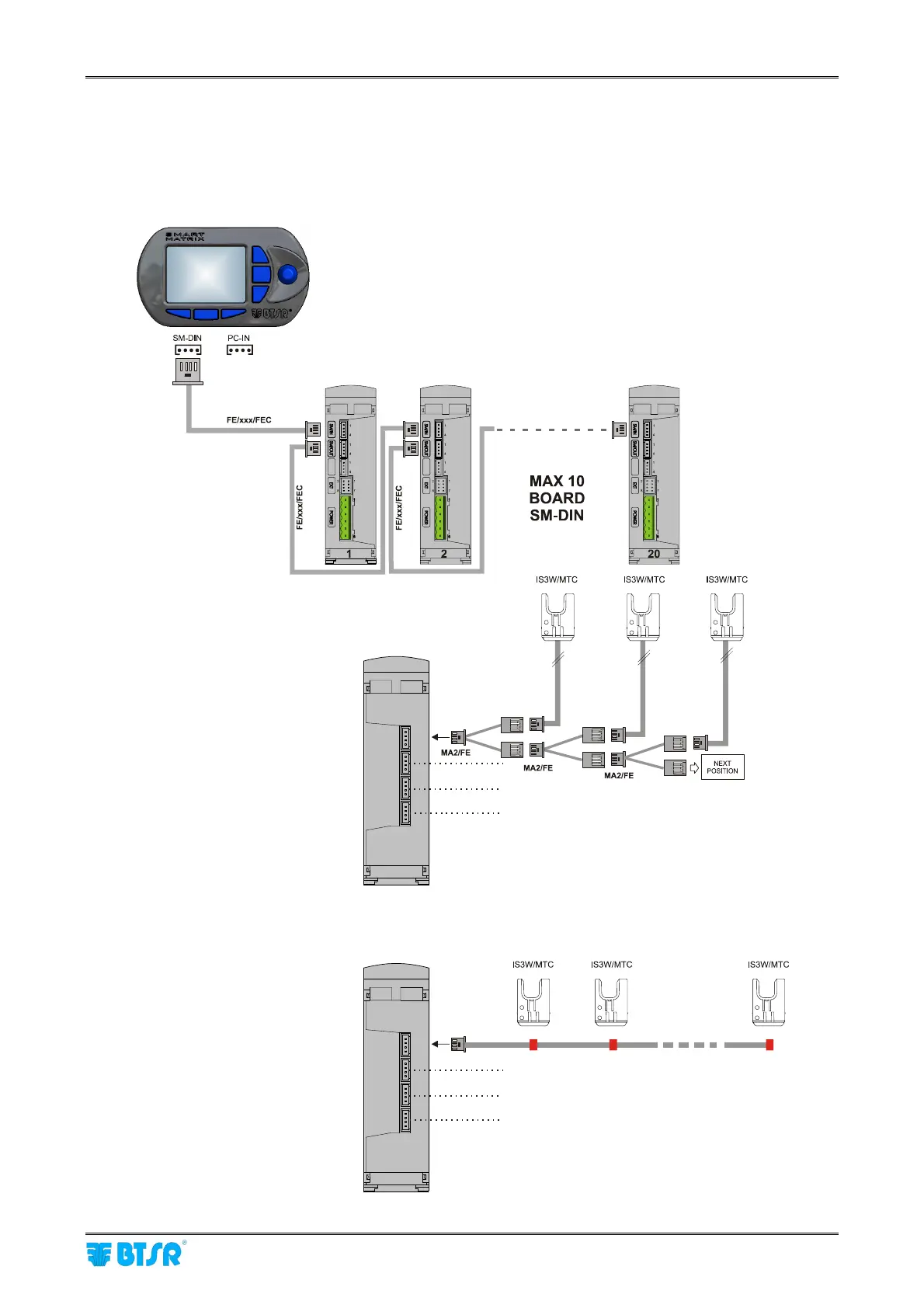

The following diagram shows the connection of IS3W/MTC Sensors to SM-DIN Boards, as well as the
connection between SM-DIN Boards and SMART MATRIX.
MAX 100 SENSORS
MAX 100 SENSORS
FLAT CABLE CONNECTION EXAMPLE
MA2/FE FORK CABLE CONNECTION EXAMPLE
