SM-DIN ↔ Machine Interface
SMART MATRIX MTC 1 - 3
SM-DIN ↔ Machine Interface

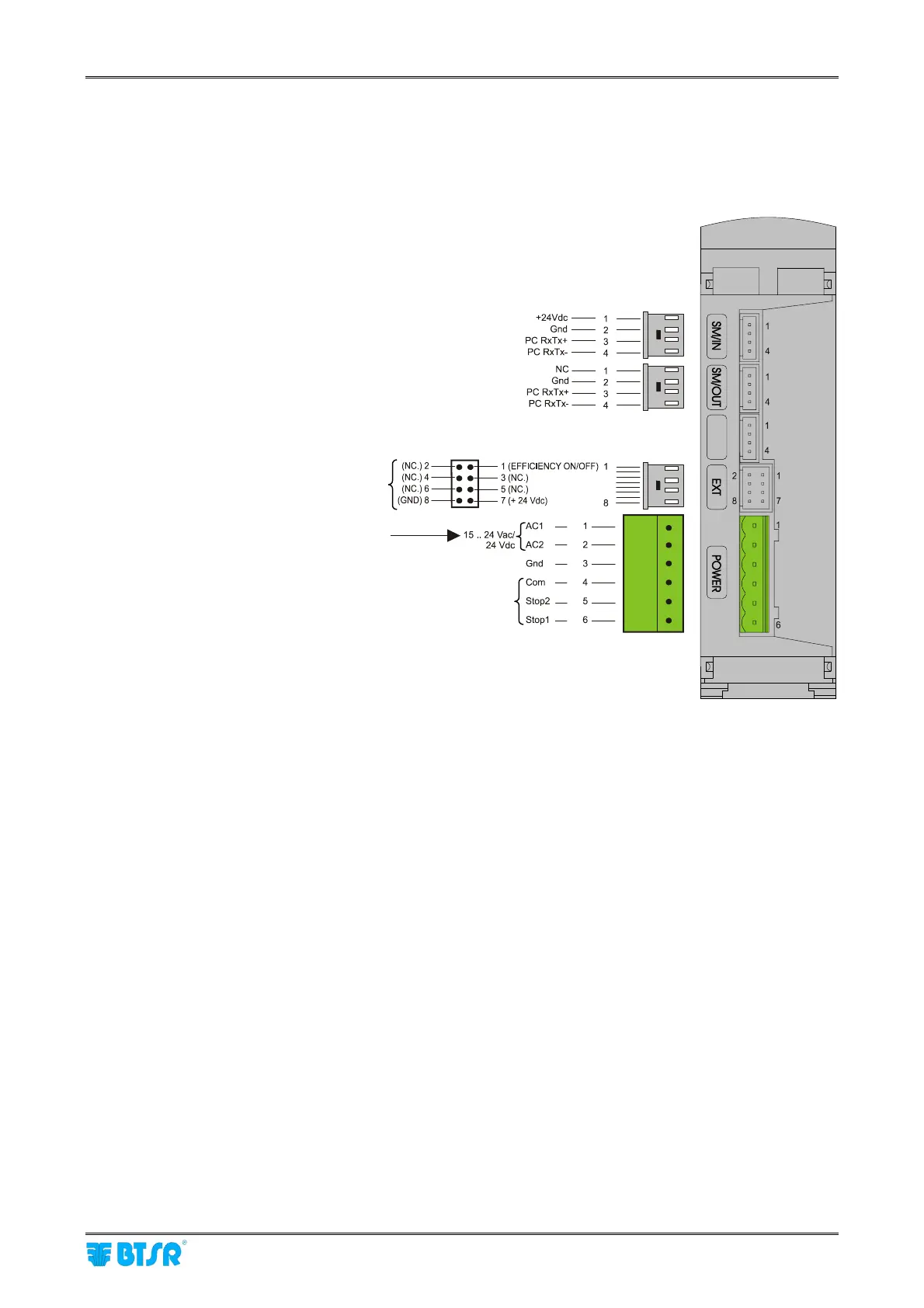

The following diagram shows the electrical interface (pin assignment) of SM-DIN Board.
The sensor interface is shown on the following page.
(*) Recommended power supply: 24 Vdc.
Machine Interface
(INPUT)
Machine Interface
(OUTPUT)
Power Supply (*)
